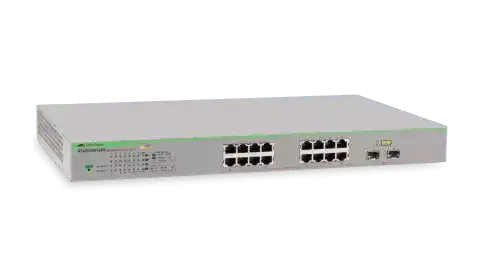

Allied Telesis AT-GS950/16PS-10 16PORT 10/100/1000T WEBSMART SW W/2SFP COMBO PT POE+ & US PWR CORD

Product Overview

The Allied Telesis GS950 16-port PoE+ WebSmart gigabit switch (AT-GS950/16PS-10) provides 16 x 10/100/1000BASE-T ports and 2 SFP combo ports in a compact, eco-friendly desktop and wall-mount chassis. It delivers IEEE 802.3at PoE+ on all copper ports to power wireless access points, IP cameras, and VoIP phones, while the web-based WebSmart management interface provides VLAN, QoS, SNMP, and spanning tree capabilities without full CLI overhead. The -10 suffix indicates inclusion of a US power cord, and the unit is RoHS and WEEE compliant for environmentally responsible deployments.

Product Description

The Allied Telesis GS950 16-port PoE+ WebSmart gigabit switch operates on WebSmart — Allied Telesis' simplified web management platform providing configuration via browser without requiring CLI knowledge or AlliedWare Plus expertise. The switch offers 16 RJ-45 copper gigabit ports with IEEE 802.3at PoE+ for powering network devices without separate power runs, alongside 2 SFP combo ports that can accept fiber modules for uplink connectivity to aggregation or distribution equipment. Management features include SNMPv1/v2c/v3, IEEE 802.1Q VLAN tagging, IEEE 802.1p QoS, web-based configuration, RMON, DHCP client support, and MIB II for integration with standard network management systems. The 64 MB DRAM and 16 MB flash support stable operation across simultaneous connections. The eco-friendly design incorporates a high-efficiency power supply and low-power chipset to minimize operational energy costs, with an overnight mode reducing consumption during off-peak hours. The unit measures 1.7 x 13 x 7.9 inches and weighs 4.63 lb, making it suitable for desktop placement or wall-mount installation in branch offices, classrooms, and retail environments. IEEE standards compliance includes 802.3, 802.3i, 802.3u, 802.3z, 802.3ab, 802.3x, 802.1p, 802.1x, 802.1d, 802.3ad, and 802.1Q. Certifications include UL 1950, FCC/EN55022 Class A, CE, EN60950, RoHS, WEEE, and 80 Plus. Available from Creation Networks at creationnetworks.net.

Key Features

• 16x 10/100/1000BASE-T PoE+ Ports — IEEE 802.3at PoE+ on all copper ports for APs, cameras, and IP phones.
• 2x SFP Combo Ports — Shared copper/fiber combo uplink ports for flexible connectivity to upstream equipment.
• WebSmart Management — Web-based configuration with SNMPv1/v2c/v3, VLANs, QoS, RMON, and DHCP client.
• IEEE 802.1Q VLAN — Tagged VLAN support for network segmentation.
• IEEE 802.1p QoS — Packet prioritization for voice, video, and data traffic.
• Eco-Friendly Design — High-efficiency power supply, low-power chipset, and overnight energy-saving mode.
• RoHS / WEEE / 80 Plus Certified — Meets environmental and energy efficiency standards.
• Compact Form Factor — 1U-height desktop/wall-mount chassis with 4.63 lb weight for flexible placement.

Typical Applications

• SMB and branch office access layers powering wireless APs and VoIP phones via PoE+
• IP video surveillance edge deployments with PoE-powered cameras
• Education classrooms and small labs requiring web-managed PoE switching
• Retail and Point of Sale environments with desktop or wall-mount installation
• Eco-conscious deployments requiring RoHS/WEEE-compliant network hardware

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the GS950/16PS and the GS950/18PS V2?

Both switches provide 16 copper ports and 2 SFP-capable uplinks. The GS950/16PS features SFP combo ports (shared between copper and fiber), while the GS950/18PS V2 has 2 dedicated standalone SFP slots. The GS950/18PS V2 also provides a confirmed 185W PoE budget and an enhanced V2-generation feature set with more granular management capabilities including SSH and CLI access.

Q: What is WebSmart and how does it differ from full management on the GS970M?

WebSmart is a simplified browser-based management interface providing VLAN, QoS, SNMP, and basic L2 features. It does not include AlliedWare Plus, full CLI management, or AMF framework integration. The GS970M series runs AlliedWare Plus with complete CLI, AMF automation, EPSR ring resiliency, and Layer 3 routing for more complex enterprise environments.

Q: Are the SFP combo ports shared with copper ports?

Yes. The 2 SFP ports are combo ports — each is shared with a corresponding copper RJ-45 port. When an SFP module is inserted, the associated copper port is disabled. This means the total active port count remains 16.

Q: What energy-saving features does the AT-GS950/16PS include?

The switch includes a high-efficiency power supply, a low-power chipset, and an overnight mode that reduces power consumption during off-peak hours. It is 80 Plus, RoHS, and WEEE certified, supporting environmentally responsible procurement policies.

Q: What IEEE standards are supported for interoperability?

The switch complies with IEEE 802.3, 802.3i, 802.3u, 802.3z, 802.3ab, 802.3x, 802.1p, 802.1x, 802.1d, 802.3ad, and 802.1Q — ensuring broad interoperability with equipment from other vendors.
