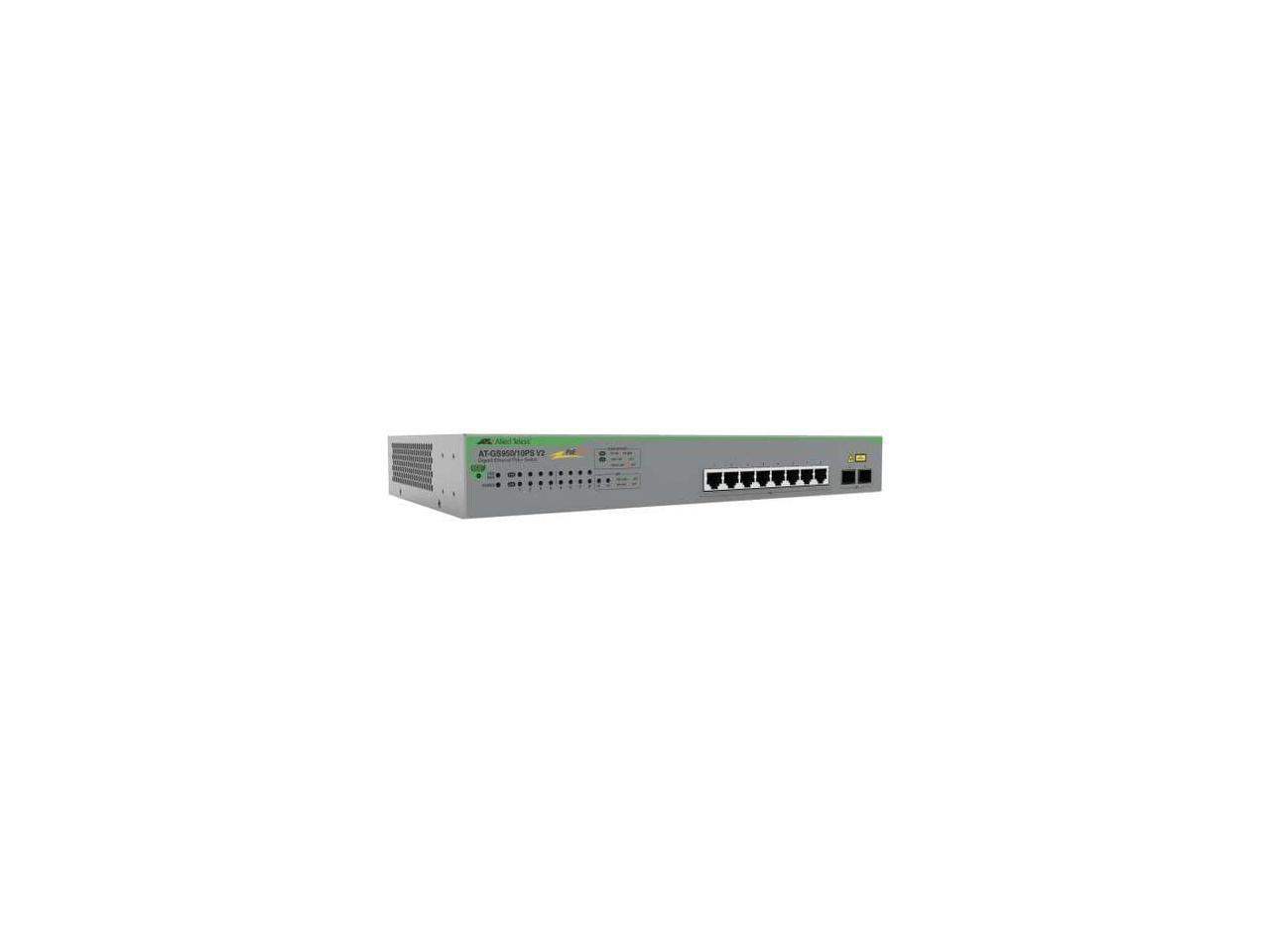

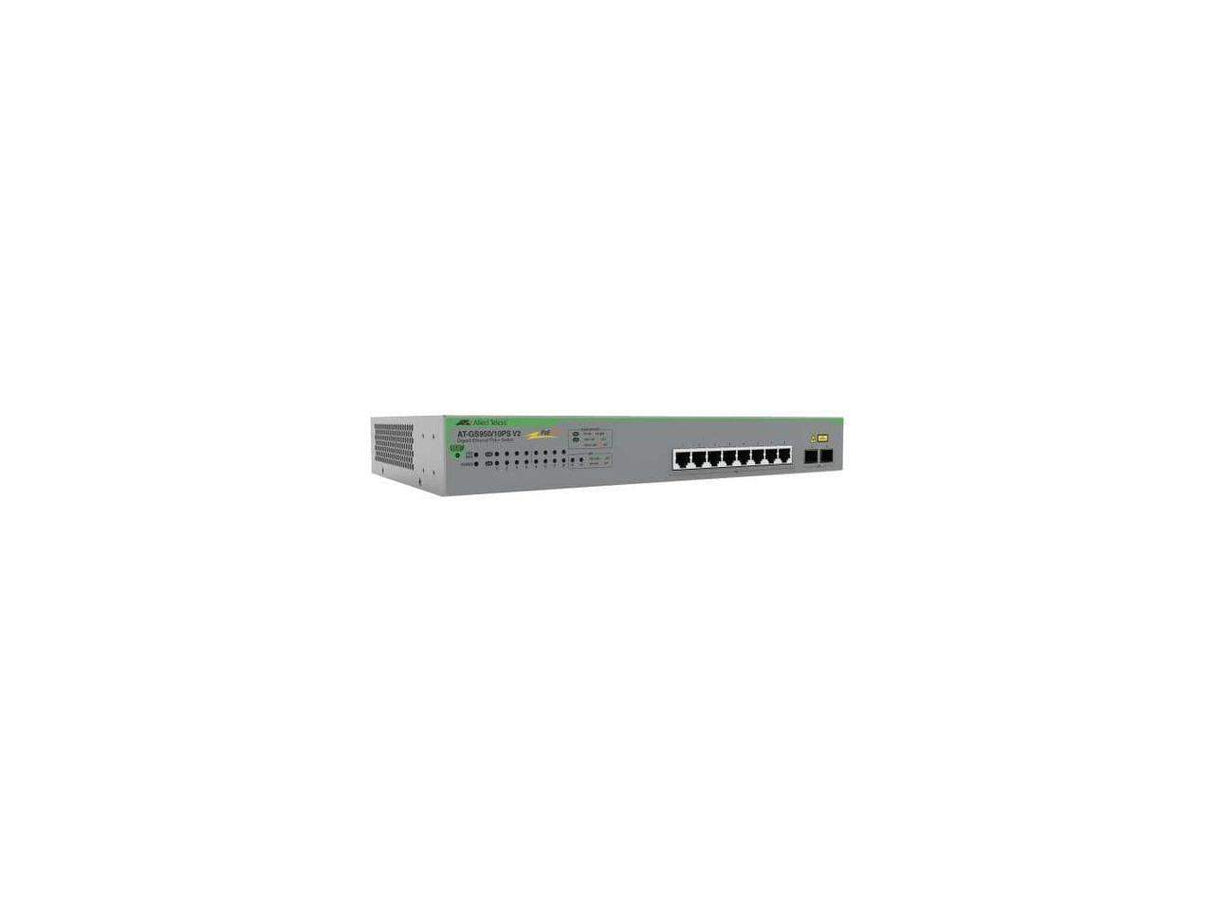

Allied Telesis AT-GS950/10PS V2-10 8PORT 1GB 2SFP PORTS V2 GIGABIT WEBSMART SWITCH

Allied Telesis GS950/10PS V2 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 25 W Power Consumption - 75 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, Rack-mountable, Desktop

The Allied Telesis GS950/10PS V2 Gigabit PoE+ WebSmart switch features 8 x 10/100/1000T ports and two SFP ports, delivering up to 30 Watts per port (PoE+) to support video surveillance cameras, wireless access points, IP phones and other powered devices. PoE+ eliminates the need for separate power cabling and minimizes the clutter of power supplies and adapters for simplified deployment. Thanks to its compact size, the AT-GS950/10PS V2 is ideal for wiring-constrained and smaller environments such as micro branch offices, classrooms, cafes, and smaller retail stores.

• VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
• Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
• IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree, IEEE 802.1d/w/s
• IEEE 802.3ad Link Aggregation: Manual - LACP
• IEEE 802.1x Port-based, MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
• Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
• Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/v2c/v3 - DHCP client - Syslog support - System time configuration (SNTP, manual) - Statistics Charts in Web
• MIBs : RFC 1213 MIB-II - RFC 1643 Ethernet MIB - RFC 1493 Bridge MIB - RFC 2131 DHCP client - Private Enterprise MIB (Allied Telesis provides the spec)
• RMON Groups (1, 2, 3, 9): Stats - History - Alarms - Events
• ACL: Support (number of entries 188)

Specs

Management & Protocols Manageable Yes Network & Communication Layer Supported 2 Miscellaneous Package Contents GS950/10PS V2 Ethernet Switch Rack-mount Brackets and Screws US Power Cord Rubber Feet Environmentally Friendly Yes I/O Expansions Expansion Slot Type SFP (mini-GBIC) Number of Total Expansion Slots 2 Number of SFP Slots 2 Power Description Power Source Power Supply Power Consumption 25 W PoE (RJ-45) Port Yes PoE Budget 75 W Interfaces/Ports Network (RJ-45) Yes Modular Yes Total Number of Network Ports 8 Port/Expansion Slot Details 8 x Gigabit Ethernet PoE+ 2 x Gigabit Ethernet Expansion Slot Media & Performance Network Technology 10/100/1000Base-T 100/1000Base-X Ethernet Technology Gigabit Ethernet Media Type Supported Optical Fiber Twisted Pair

Physical Characteristics Weight (Approximate) 4.19 lb Form Factor Desktop Wall Mountable Rack-mountable Height 1.7" Width 13" Depth 7.1" General Information Product Type Ethernet Switch Manufacturer Part Number AT-GS950/10PS V2-10 Manufacturer Website Address http://www.alliedtelesis.com Manufacturer Allied Telesis, Inc Product Model GS950/10PS V2 Product Name GS950/10PS V2 Ethernet Switch Product Series GS950 V2 Brand Name Allied Telesis
