Allied Telesis AT-FS980M/9PS – 8-Port PoE+ Fast Ethernet Desktop Switch with SFP Uplink

Product Overview

The Allied Telesis FS980M/9PS is a compact, fully managed 8-port PoE+ Fast Ethernet desktop switch with a single Gigabit/SFP combo uplink, purpose-built for small branch offices, conference rooms, and network edge locations. This Allied Telesis FS980M 8-port PoE+ desktop switch delivers IEEE 802.3at PoE+ on all 8 copper ports, Layer 3 switching capability, and full AMF integration—making it a cost-effective managed PoE+ switch for small workgroup and IP camera or VoIP deployments that demand enterprise-grade management in a wall-mountable form factor.

Product Description

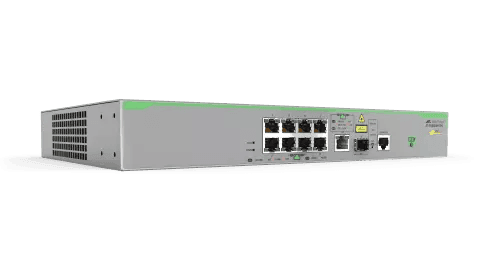

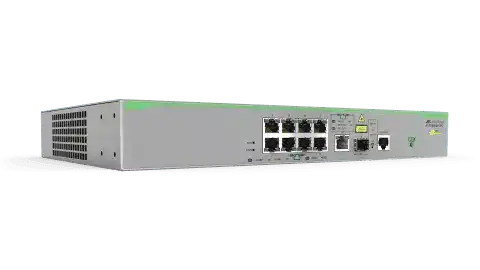

The Allied Telesis CentreCOM FS980M/9PS is the smallest model in the FS980M series, offering 8 x 10/100TX PoE+ ports and 1 x Gigabit/SFP combo uplink port in a compact wall-mountable enclosure measuring 10.8 x 8.3 x 1.7 in. Despite its small footprint, it delivers the full feature set of the FS980M platform—including AlliedWare Plus OS, Allied Telesis Management Framework (AMF) integration, and Layer 3 switching—making it an enterprise-grade choice for remote locations and small offices. The 8 PoE+ copper ports support IEEE 802.3at, delivering up to 30W per port for IP cameras, wireless access points, VoIP phones, and other PoE+ powered devices. The single Gigabit/SFP combo uplink provides flexibility to connect via copper Gigabit or insert an SFP module for a fiber uplink to the wiring closet. AMF integration enables centralized, zero-touch management alongside other AMF-enabled Allied Telesis switches in the network, eliminating the need for dedicated on-site configuration at each remote location. VCStack stacking is supported with compatible FS980M units. Layer 3 switching with static routing and basic routing protocol support allows inter-VLAN routing without a separate router in simple network environments. The fixed built-in AC power supply ships with a US power cord, and the wall-mount form factor makes this switch ideal for deployment in utility rooms, conference rooms, and above-ceiling spaces where rack infrastructure is not available.

Key Features

• 8 x 10/100TX PoE+ Ports — IEEE 802.3at compliant, up to 30W per port for cameras, APs, VoIP phones, and access control.
• 1 x Gigabit/SFP Combo Uplink — Flexible copper Gigabit or SFP fiber uplink to the wiring closet or aggregation switch.
• Layer 3 Switching — Inter-VLAN routing via static routing for simple multi-VLAN environments without a dedicated router.
• AMF Integration — Allied Telesis Management Framework for zero-touch provisioning and centralized management from an AMF Master.
• AlliedWare Plus OS — Full-featured enterprise OS with CLI and GUI for comprehensive switch management.
• Wall-Mountable Form Factor — Compact 10.8 x 8.3 x 1.7 in enclosure for deployment in non-rack locations.
• Fixed Built-In AC Power Supply — US power cord included; no external PSU required.
• VLAN and QoS Support — IEEE 802.1Q VLAN tagging and traffic prioritization for voice, video, and data segmentation.
• Optical Fiber Uplink Capable — SFP slot accepts fiber modules for long-distance uplinks to the wiring closet over single-mode or multimode fiber.
• Environmentally Friendly Design — Energy-efficient operation for reduced running costs in always-on edge deployments.

Typical Applications

• Small branch office or remote site network edge switch
• Conference room or meeting space network connectivity with PoE+
• IP camera deployment in small surveillance zones
• VoIP phone distribution in small offices and reception areas
• Wireless access point PoE+ connection in conference rooms
• Above-ceiling or utility room switch deployment (wall-mount)

Technical Specifications

Frequently Asked Questions

Q: How many PoE+ devices can the FS980M/9PS power at 30W simultaneously?

All 8 copper ports support IEEE 802.3at PoE+ at up to 30W per port. The total number that can run at full 30W simultaneously depends on the switch's total PoE power budget; refer to the Allied Telesis FS980M/9PS datasheet for the exact total PoE wattage allocation.

Q: Can I use a fiber uplink with the FS980M/9PS?

Yes. The single Gigabit/SFP combo uplink port accepts an SFP module for fiber connectivity. When an SFP is inserted, the copper Gigabit RJ-45 for that port is typically disabled. This enables fiber runs to the wiring closet switch when copper distance is a constraint.

Q: Does the FS980M/9PS support AMF management?

Yes. The FS980M/9PS is fully AMF-compatible. When an AMF Master is present in the network, this switch can be auto-provisioned, backed up, and recovered automatically—eliminating manual on-site configuration for remote deployments.

Q: Is this switch suitable for a conference room installation?

Yes. The compact wall-mount form factor (10.8 x 8.3 x 1.7 in) and PoE+ capability make it well suited for conference rooms, meeting spaces, and small offices where rack space is unavailable and PoE+ devices such as APs, cameras, and phones need power and connectivity.

Q: What is the difference between the FS980M/9PS and the FS980M/28PS?

The FS980M/9PS has 8 PoE+ ports and 1 Gigabit/SFP combo uplink in a compact wall-mount enclosure, targeted at small remote locations. The FS980M/28PS has 24 PoE+ ports and 4 SFP uplinks in a 1U rack form factor, suitable for larger wiring closets.

Q: Where can I purchase the AT-FS980M/9PS-10?

The AT-FS980M/9PS-10 is available through Creation Networks at creationnetworks.net, an authorized Allied Telesis reseller providing competitive pricing and pre-sales technical support.
