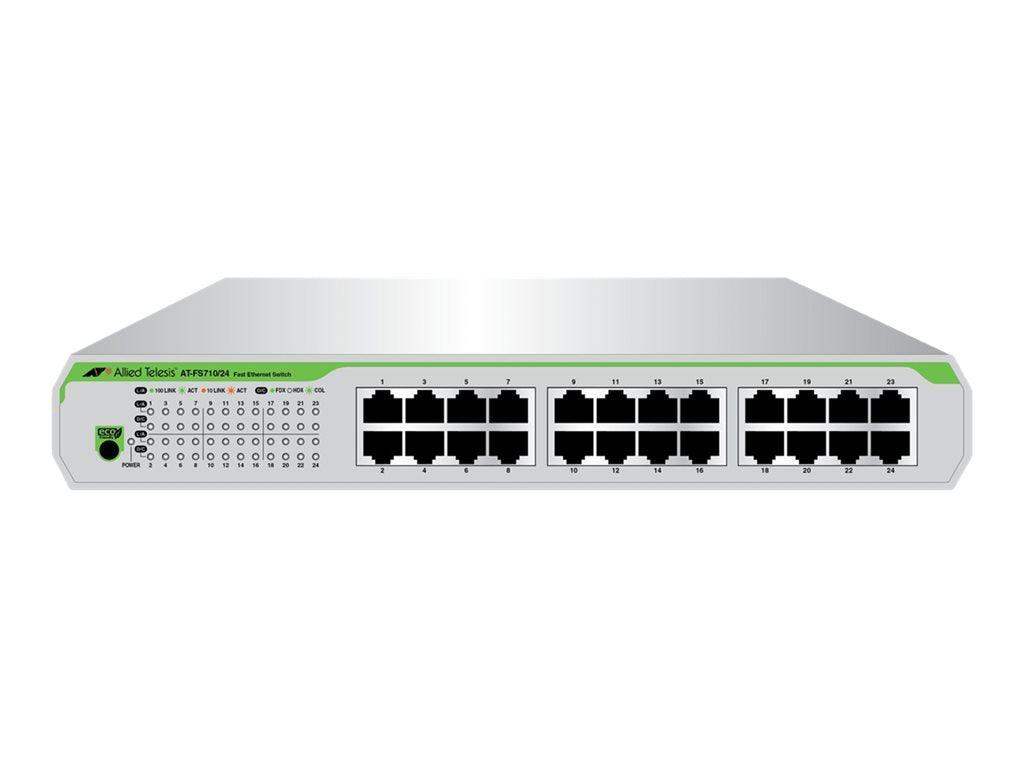

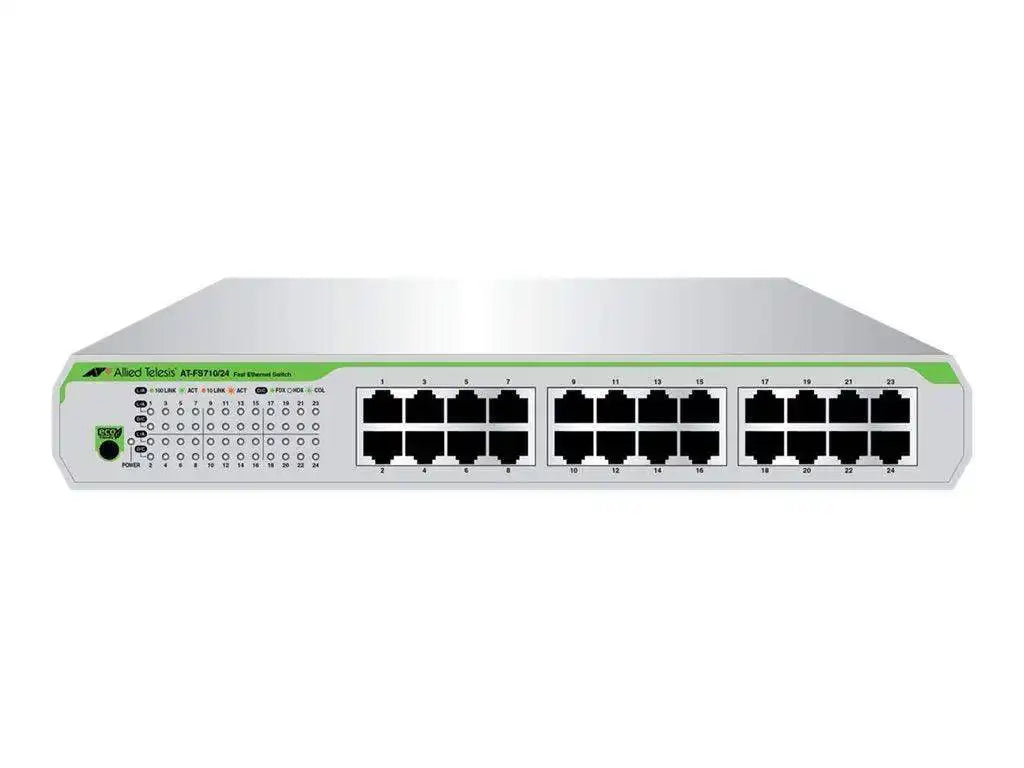

Allied Telesis AT-FS710/24-10 – 24-Port Unmanaged Fast Ethernet Switch

Overview

The Allied Telesis AT-FS710/24-10 is a 24-port unmanaged Fast Ethernet switch designed for small offices, workgroups, and network closets that need reliable 10/100 Mbps connectivity without the overhead of managed infrastructure. With an internal power supply and included US power cord, the unit is ready to deploy straight from the box. Its compact form factor supports both desktop placement and rack mounting, making it flexible for a variety of physical environments. Plug-and-play operation means no configuration is required, reducing deployment time and ongoing administration costs.

Description

The AT-FS710/24-10 provides 24 auto-negotiating 10/100BASE-TX ports, each supporting auto MDI/MDI-X for simplified cabling. The switch operates in full store-and-forward mode to ensure frame integrity across all connected devices. An internal power supply eliminates the need for an external adapter and keeps cabling clean in rack or desktop installations. Allied Telesis Green Ethernet technology monitors link activity and adjusts power consumption per port, reducing energy use during periods of low traffic without any performance trade-off. The non-blocking switching architecture delivers wire-speed forwarding across all 24 ports simultaneously. LED indicators per port provide quick visual confirmation of link and activity status, simplifying troubleshooting. The unit ships with a US power cord and requires no software, licenses, or ongoing subscription fees. It is available from Creation Networks, an authorized Allied Telesis reseller.

Key Features

• 24x 10/100BASE-TX ports — provides full-duplex Fast Ethernet to 24 devices with no uplink bottleneck in small-segment deployments
• Plug-and-play operation — zero configuration required; connects and forwards traffic immediately upon power-up
• Internal PSU with US power cord included — clean installation with no external brick; ready to use out of the box
• Green Ethernet energy saving — per-port power adjustment based on link activity and cable length, reducing idle power draw
• Auto MDI/MDI-X on all ports — eliminates the need for crossover cables between any two devices
• Desktop and rack-mountable form factor — fits standard 19-inch racks or sits flat on a desktop without additional hardware
• Store-and-forward switching — verifies frame integrity before forwarding, preventing corrupt frames from propagating

Technical Specifications
