Allied Telesis AT-2711FX/MT-901 NIC 100FX/MT PCIE TAA ROHS LP & STD BRACKET INCL
Roll over image to zoom in Click on image to zoom
Allied Telesis AT-2711FX/MT-901 NIC 100FX/MT PCIE TAA ROHS LP & STD BRACKET INCL
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Allied Telesis AT-2711FX/MT-901 NIC 100FX/MT PCIE TAA ROHS LP & STD BRACKET INCL

Allied Telesis SKU: AT-IMC200T/SC-980
No reviews
Price:
$646.00

Description

Allied Telesis IMC200T/SC Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - 1.24 Mile - DC - Standalone, Rail-mountable - TAA Compliant

Powering remote devices

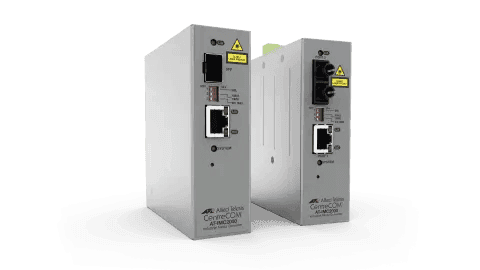

Allied Telesis 200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 60W of PoE.

The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which
supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.

Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.

In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.

Remote Power Cycle

The 200/2000 Series supports the Remote Power Cycle feature. When the fiber port is dropped, the TX PoE+ port cycles power. This allows a remote administrator to log in to a switch and disable the switch port to which the IMC is attached, which causes the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.

Jumbo frame support

Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The 200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.

Smart MissingLink™ (SML)

The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • The unit is standalone and you can place it anywhere on a flat surface
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
Power Description
Power Source DC
Miscellaneous
Country of Origin Singapore
TAA Compliant Yes
Network & Communication
Network Technology 100Base-FX
10/100Base-TX
Ethernet Technology Fast Ethernet
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of SC Ports 1
Total Number of Ports 2
Media & Performance
Maximum Distance Supported 1.24 Mile
Media Type Supported Optical Fiber
Twisted Pair
Fiber Mode Supported Multi-mode
Physical Characteristics
Weight (Approximate) 1.65 lb
Form Factor Rail-mountable
Standalone
Height 1.4"
Width 4.4"
Depth 3.8"
General Information
Product Type Transceiver/Media Converter
Manufacturer Part Number AT-IMC200T/SC-980
Manufacturer Website Address http://www.alliedtelesis.com
Manufacturer Allied Telesis, Inc
Product Model IMC200T/SC
Product Name IMC200T/SC Transceiver/Media Converter
Product Series 200
Brand Name Allied Telesis
