Allen & Heath ZEDi-8 Compact Hybrid Mixer/USB Interface
Allen & Heath ZEDi-8 – Compact Hybrid Mixer / USB Audio Interface
Product Overview
The Allen & Heath ZEDi-8 is a compact hybrid unit that functions simultaneously as a six-input analog mixer and a 24-bit/96 kHz USB audio interface. Tailored for musicians, podcasters, streamers, and home-studio producers who need the tactile control of a real mixer alongside the direct-to-computer recording capability of a USB interface, the ZEDi-8 eliminates the compromise between live-mixing flexibility and DAW-based production. Two high-quality GS2-R24-derived mic preamps anchor the signal path, backed by MusiQ EQ, high-pass filters, and Hi-Z instrument inputs that accept guitars directly without a DI box.
Product Description

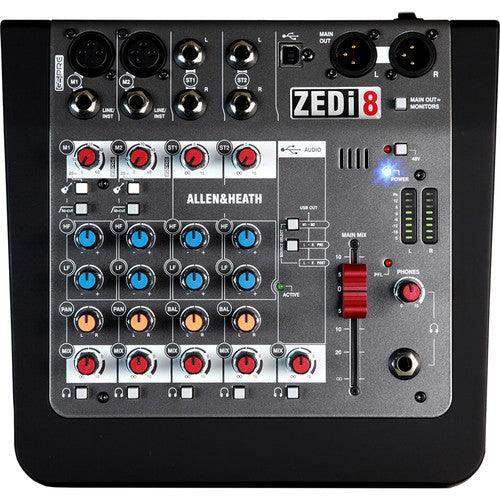

On the analog side, the ZEDi-8 provides two XLR/TRS combo mic/line channels, two stereo line inputs on TRS, and two switchable Hi-Z instrument inputs — giving guitarists and bassists a direct connection path without additional hardware. The MusiQ two-band EQ on each channel was purpose-voiced by Allen & Heath engineers for musical sources, with carefully optimized frequency curves rather than generic shelf responses. High-pass filters on channels 1 and 2 keep low-frequency noise out of the mix.
The USB interface section offers 2-in/2-out operation at up to 24-bit/96 kHz resolution, connecting via USB-B to any Mac or PC. A USB routing switch lets you choose how the analog channels are aggregated before reaching your DAW — a practical feature for separating sources during multitrack sessions. The ZEDi-8 includes Cubase LE for desktop recording and Cubasis LE for iOS, providing a complete tracking environment out of the box. The unit is class-compliant and driver-free on most platforms, simplifying setup in live and studio contexts alike.
Key Features
- 24-Bit / 96 kHz USB Audio Interface — studio-quality digital conversion for tracking, overdubbing, podcasting, and live streaming
- GS2-R24-Derived Mic Preamps — low-noise, high-headroom preamp design consistent with Allen & Heath professional consoles
- 2x Hi-Z Guitar Inputs — direct instrument connection without DI boxes on channels 1 and 2
- MusiQ 2-Band EQ — musically voiced equalization curves optimized for instruments and vocals
- 2x High-Pass Filters — channels 1 and 2 each carry a high-pass filter for low-frequency noise rejection
- USB Routing Switch — flexible assignment of analog sources to the USB output for flexible DAW routing
- Cubase LE + Cubasis LE Included — full DAW and iOS app included for immediate recording capability
- 48V Phantom Power — powers condenser microphones on the mic inputs
- Balanced XLR Main Outputs — drives professional powered speakers or PA systems
- 8-Segment LED Metering — output level monitoring at a glance

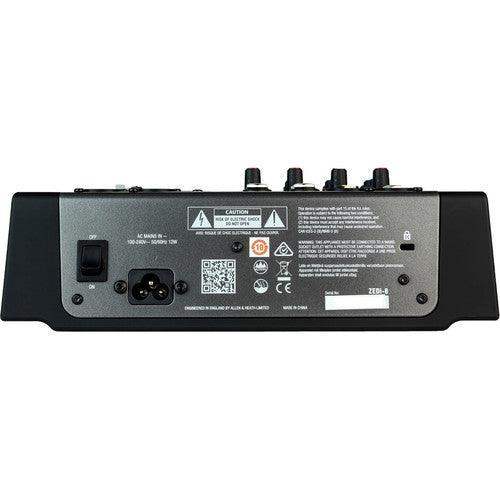

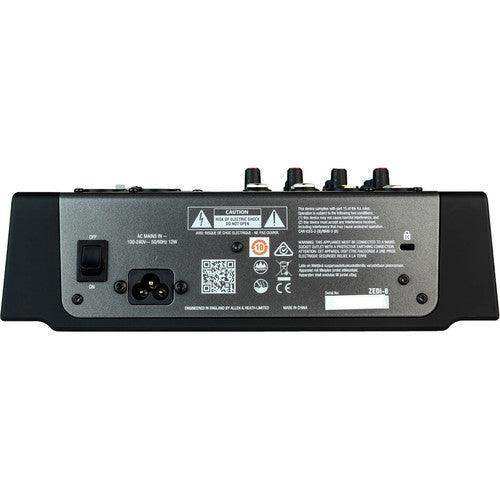

- Internal Power Supply — no external adapter required
Technical Specifications
| Analog Input Channels | 6 (2 Mono / 2 Stereo) |
|---|---|
| Mic Preamps | 2 |
| Hi-Z Inputs | 2 (1/4" TS) |
| EQ | 2-band MusiQ per input channel |
| Filters | 2x High-Pass (Ch 1 & 2) |
| USB I/O | 2 In / 2 Out via USB-B |
| Sample Rate | Up to 96 kHz |
| Bit Depth | Up to 24-bit |
| Analog Outputs | 2x XLR Balanced Main, 1x 1/4" TRS Headphone |
| Phantom Power | 48V |
| Faders | 5x 60mm channel faders |
| Dimensions | 3.5 x 9.8 x 9.3" (88.9 x 248.9 x 236.2 mm) |
| Weight | 3 lb / 1.4 kg |
| Software Included | Cubase LE, Cubasis LE (iOS) |
