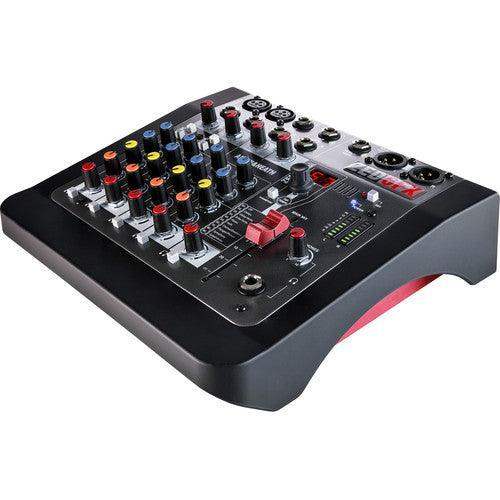

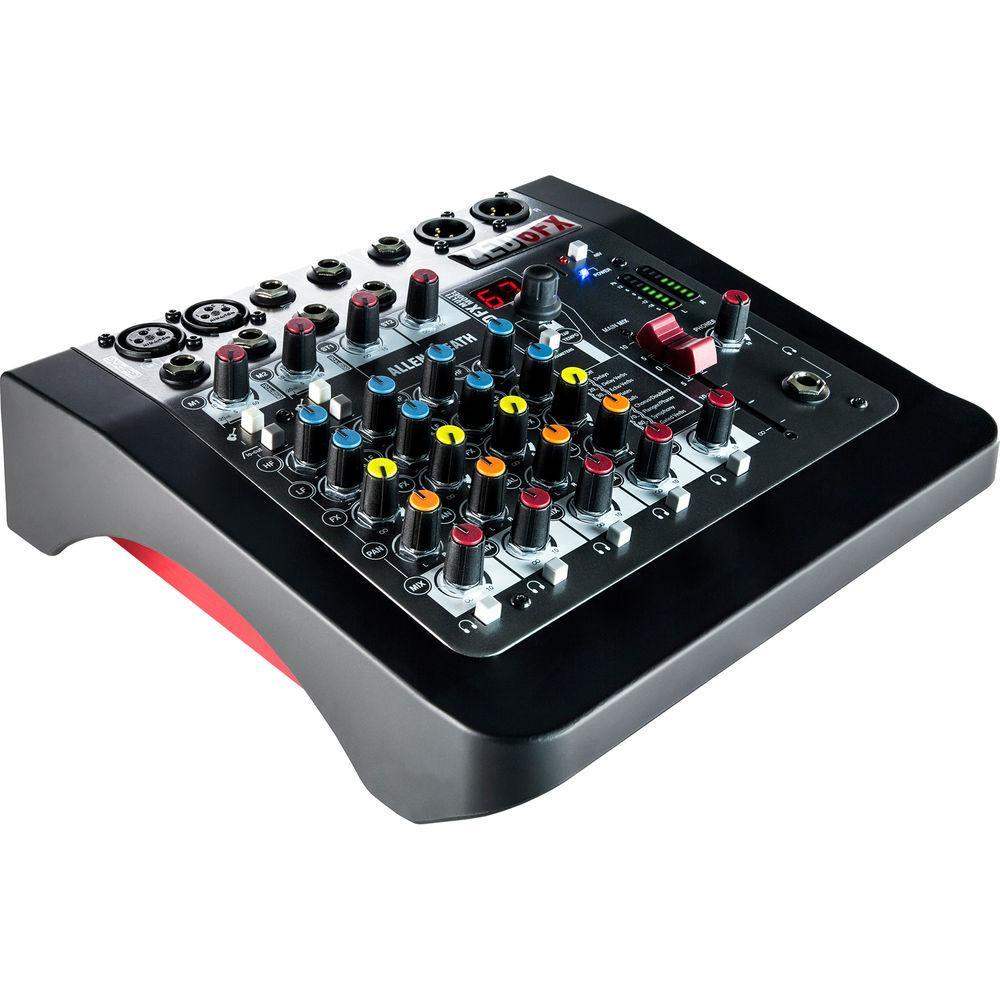

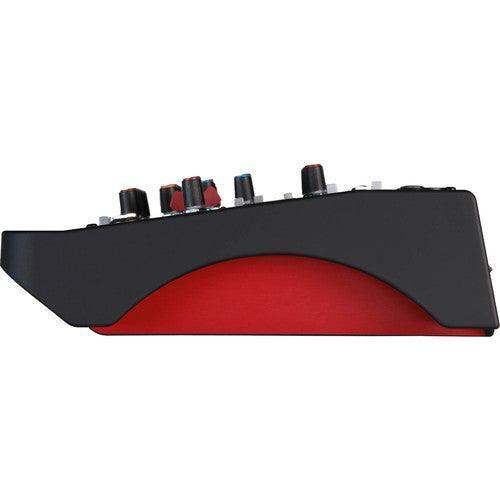

Allen & Heath ZED-6FX – Compact Analog Mixer with Effects Engine

Product Overview

The Allen & Heath ZED-6FX is a six-input compact analog mixer designed for solo performers, singer-songwriters, lecturers, and small ensembles who need professional-grade audio quality in a portable, easy-to-operate format. Built around preamp circuits derived from the Allen & Heath GS2-R24 console, the ZED-6FX delivers the low noise, wide headroom, and analog warmth that A&H is known for — in a unit that fits in a gig bag. The onboard digital effects engine adds reverb, delay, chorus, and tap-tempo functionality, removing the need for an external effects processor in modest venue applications.

Product Description

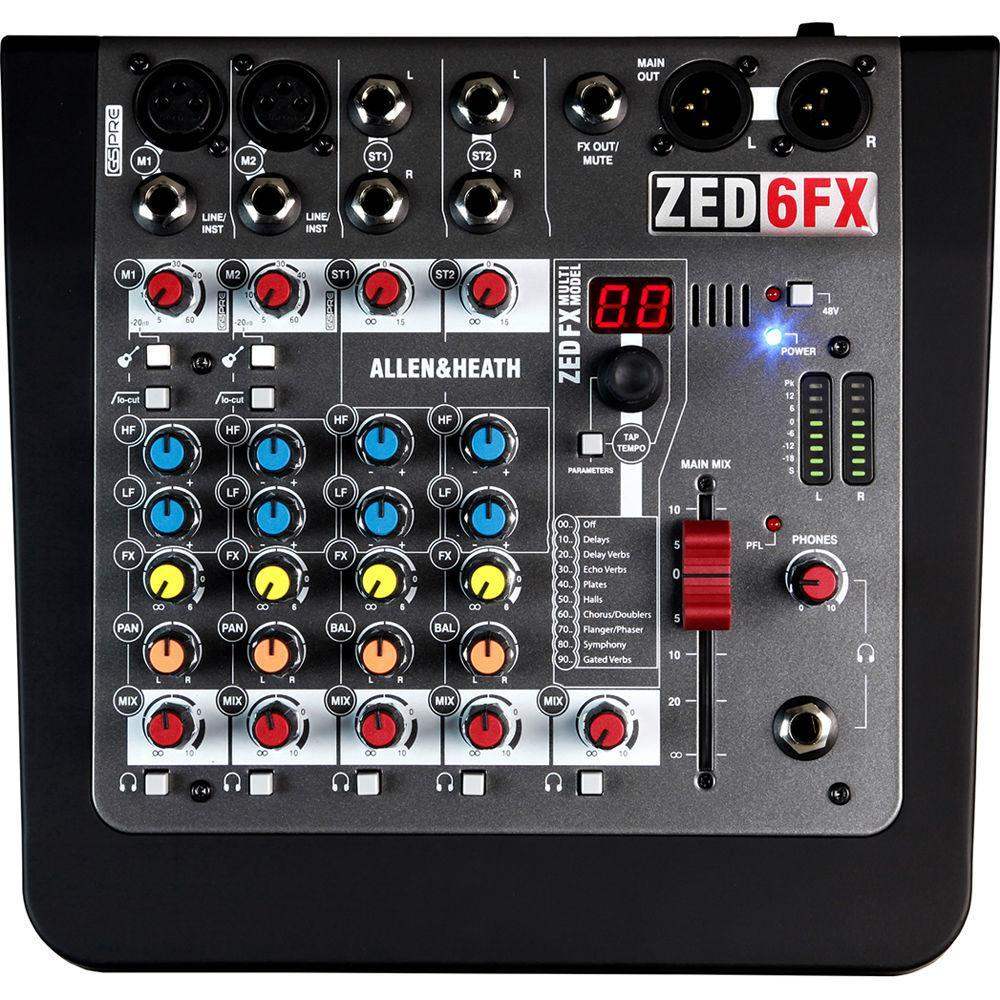

At its core, the ZED-6FX provides two mic/line channels with separate XLR and balanced TRS inputs, each featuring the MusiQ two-band EQ — an EQ topology Allen & Heath's analog engineers specifically voiced for musical instruments and vocals. A high-pass filter on each channel keeps low-frequency rumble out of the mix. Two high-impedance guitar inputs on channels 1 and 2 allow direct connection of electric guitars and basses without a separate DI box, simplifying the signal chain for gigging musicians. Channels 3/4 and 5/6 accept stereo line-level sources via TRS.

The internal FX engine delivers 61 studio-quality effect presets encompassing reverb types, delays, and modulation effects, with a dedicated tap-tempo control for time-locked effects. The main outputs are balanced XLR, suitable for driving powered speakers or a house PA. An eight-segment LED meter gives constant visual feedback on output level, and pre-fader listen (PFL) buttons on each channel strip enable discrete monitoring before signals reach the main mix. The ZED-6FX runs from an internal power supply — no wall-wart required — and its robust construction meets the demands of repeated touring use.

Key Features

• GS2-R24-Derived Preamps — exceptionally low noise and extended headroom deliver Allen & Heath's signature analog character in a compact form factor
• Onboard FX Engine with 61 Presets — reverb, delay, chorus, and tap-tempo effects eliminate the need for an external processor in small venue setups
• 2x Hi-Z Guitar Inputs — direct instrument connection on channels 1 and 2 removes the requirement for DI boxes
• MusiQ 2-Band EQ — frequency curves optimized for musical instruments, providing effective tonal shaping without over-processing
• High-Pass Filter per Channel — removes low-frequency noise and stage rumble to maintain a clean mix
• 48V Phantom Power — supports condenser microphones on both mic inputs simultaneously
• Balanced XLR Main Outputs — compatible with professional powered speakers and PA systems
• 8-Segment LED Metering — continuous visual output level monitoring
• PFL (Pre-Fader Listen) on All Channels — pre-mix monitoring via headphone output
• Internal Power Supply — no external adapter required; reduces stage clutter
