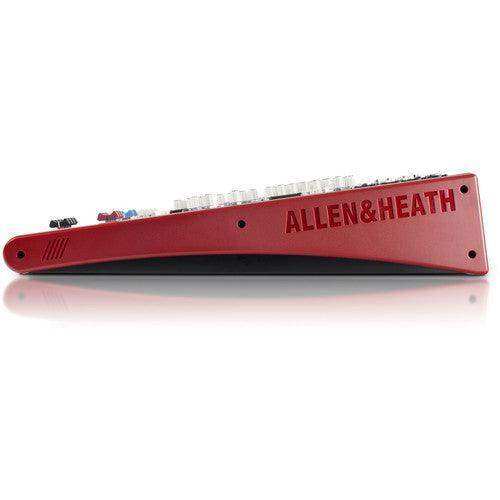

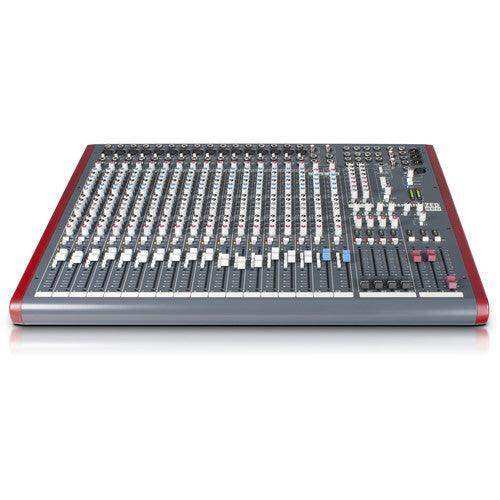

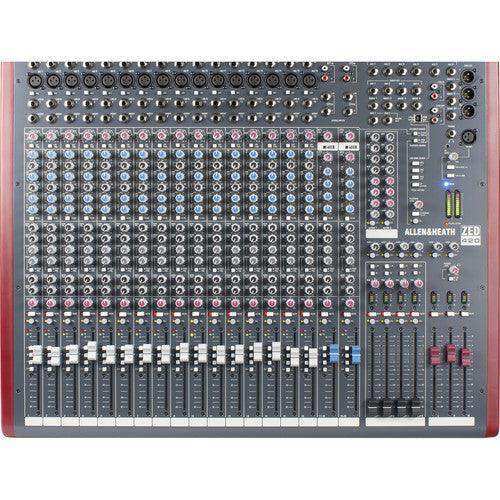

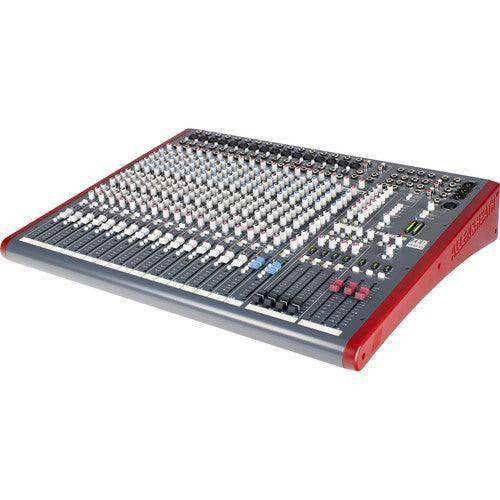

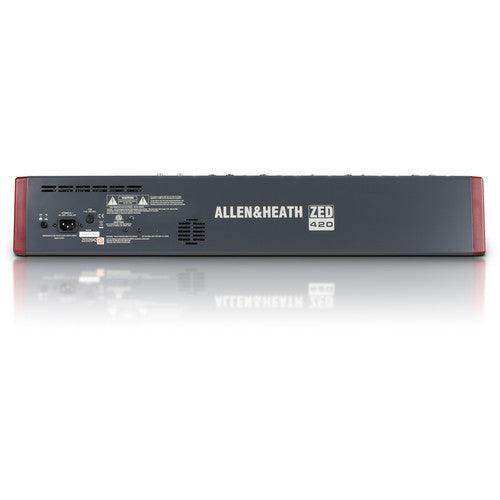

Allen & Heath ZED-420 20-Channel 4-Bus Analog Mixer with USB Connection

Allen & Heath SKU: AH-ZED420
No reviews
Price:
$2,399.99

Description

The Allen & Heath ZED-20 is a 20-channel analog mixer offering versatile I/O and a user-friendly workflow for use in home and project studio recording, houses of worship, and live sound reinforcement. The 16 mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 4-band EQ with sweepable mids, while the two stereo channels have 1/4" inputs and 4-band EQ with fixed mids. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.

The six aux sends are ideal for routing to floor monitors and outboard time-based effects. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to four group outputs, two matrix outs, and two headphone outputs; multi-segment LED meters clearly indicate your group and main output levels. Patch additional stereo sources into the RCA stereo returns and 2-track input. The 2-track RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard. The ZED-20 also boasts an external talkback mic input with an adjustable level and the ability to route the talkback signal to the first four aux's or to all main outputs.

 16 Mono Inputs There are 16 mono input channels with Neutrik connectors—XLR for balanced mic signals, and 1/4" for balanced/unbalanced line-level sources Two Stereo Inputs The two stereo input channels feature 1/4" connectors to accommodate stereo devices such as keyboards, synth modules, and external effects processors Flexible EQ Section Based on the acclaimed GL2400 EQ, all mono channels feature 4-band EQ with sweepable midrange bands, while the stereo channels offer 4-band EQ with fixed frequencies on all bands Inserts Inserts on all mono channels, the group outputs, and the main outputs provide easy integration of analog outboard gear such as hardware compressors and equalizers Direct Outputs 1/4" direct outputs on all mono channels enable simple routing to a multi-track recorder Independent Aux Sends Six auxiliary sends—two pre-fader, two post-fader, and two switched pre- or post-fader— with independent level controls allow versatile signal routing to cue mixes, floor monitors, and external effects processors 4-Bus Group Outputs Four group outputs can be used for easy control of submixes, or for applying signal processing such as compression to groups of signals using the group insert connectors USB Connection A USB 1.1 port allows direct connection to Mac and Windows computers for stereo audio I/O Flexible Outputs The ZED-420 offers balanced XLR main outputs (stereo and mono) with inserts, 1/4" and 3.5mm stereo headphone outputs, and two matrix outputs Integrated Talkback Facilities Connect an external mic to the XLR talkback mic input, then send it to the first four aux outputs or to all main outputs

4 Bus Mixer for Live Sound and Recording

  • 16 mic/line channels with inserts
  • 2 stereo channels
  • 2 in / 2 out USB audio interface
  • 6 aux sends (2x pre, 2x post, 2x pre/post)
  • 4 sub groups
  • XLR main outputs with insert points
  • 4-band EQ with sweepable mid
  • 7×2 matrix
  • Durable 100mm faders
Number of Analog Input Channels 20
Number of Mic Preamps 16
Analog Output Channels 1x Stereo Master Output
1x Mono Master Output
4x Mono Bus/Subgroup Output
6x Mono Aux Send Output
2x Mono Matrix Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Built-In Effects No
USB I/O 1x USB-B 1.1()
Rack Mountable No
Mixer
Number of Analog Input Channels 20
Number of Mic Preamps 16
Analog Output Channels 1x Stereo Master Output
1x Mono Master Output
4x Mono Bus/Subgroup Output
6x Mono Aux Send Output
2x Mono Matrix Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Faders & Level Adjustment 3.9" / 100 mm Channel Fader
Meters Main Meter:
2x 12-Segment LED
Bus Meter:
4-Segment LED
Channel Meter:
2-Segment LED
Signal Processing
Gain/Trim Range Mic Input:
-6 dB to +63 dB
Line Input:
-10 dB to +26 dB
Stereo Input:
-∞ to +10 dB
Fader:
-∞ to +10 dB
Return:
-∞ to +10 dB
Aux:
-∞ to +10 dB
Matrix:
-∞ to +6 dB
EQ Parameters Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Semi-Parametric)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Filters High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute Mute, PFL per Input Channel
Mute, Solo-in-Place/AFL per Bus
Mute per Master
Built-In Effects No
Digital Audio
Sample Rates 32 / 44.1 / 48 kHz
Bit Depth 16-Bit
Performance
Headroom Analog: +21 dB
USB I/O: +14 dB
Frequency Response Mic Input to Main Output:
20 Hz to 20 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level Mic Input:
+17 dBu
Line Input:
+30 dBu (Mono)
Insert Return:
+21 dBu
Output Level XLR Main Output:
+4 dBu (Nominal)
+27 dBu at Max Gain
Group Output:
+4 dBu (Nominal)
+27 dBu at Max Gain
Aux Output:
-2 dBu (Nominal)
+21 dBu at Max Gain
Matrix Output:
-2 dBu (Nominal)
+21 dBu at Max Gain
Insert Send:
-2 dBu (Nominal)
+21 dBu at Max Gain
Tape/Record Output:
0 dBu (Nominal)
+21 dBu at Max Gain
Direct Output:
0 dBu (Nominal)
+21 dBu at Max Gain
EIN -127 dBu at Max Gain (150-Ohm Input)
Noise Floor Main Output:
-90 dB (16 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
-86 dBu (16 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
THD+N Mic Input to Main Output:
0.004% at Unity Gain (+10 dBu, 1 kHz)
Mic Input to Main Output:
0.014% at +30 dB Gain (1 kHz)
Line Input to Main Output:
0.005% at Unity Gain (0 dBu, 1 kHz)
Stereo Line Input to Main Output:
0.003% at Unity Gain (+10 dBu, 1 kHz)
Connectivity
Analog Inputs 1x Stereo RCA Coaxial 2-Track Input
1x XLR 3-Pin Balanced Talkback Input
16x 1/4" TRS Unbalanced Channel Insert
4x 1/4" TRS Unbalanced Subgroup Insert
2x 1/4" TRS Unbalanced Stereo Main Insert
1x 1/4" TRS Unbalanced Main Insert
16x XLR 3-Pin Balanced Mic Input
16x 1/4" TRS Balanced/Unbalanced Line Input
2x Stereo RCA Coaxial Unbalanced Aux/Line Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
Analog Outputs 1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
1x Stereo RCA Coaxial Unbalanced 2-Track Output
16x 1/4" TRS Balanced Direct Output
3x XLR 3-Pin Balanced Main Output
4x 1/4" TRS Balanced Subgroup Output
2x 1/4" TRS Balanced Matrix Output
6x 1/4" TRS Balanced Aux Send
Phantom Power +48 V (Selectable on Individual Inputs)
USB I/O 1x USB-B 1.1()
USB I/O Capacity 2x Input / 2x Output
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 60 W (Maximum)
Physical
Rack Mountable No
Dimensions 28.2 x 5.1 x 22.1" / 71.5 x 12.9 x 56 cm
Weight 31 lb / 14.1 kg
Packaging Info
Package Weight 49 lb
Box Dimensions (LxWxH) 33.5 x 27.5 x 10.6"
