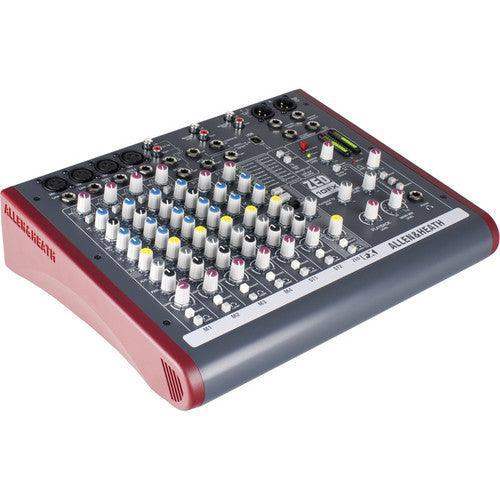

Allen & Heath ZED-10FX Multipurpose Mini Mixer with Effects

Allen & Heath SKU: AH-ZED10FX
No reviews


The multipurpose Allen & Heath ZED-10FX mixer combines four mic/line inputs, two Hi-Z guitar inputs, two stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers—in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio. It is also an excellent choice for small PA and AV rentals, and for installation in hotels, small churches, and schools.

Channels 1 through 4 feature XLR mic inputs and low-noise preamps with 60 dB of gain. Channels 1 & 2 also offer balanced/unbalanced line inputs while 3 & 4 feature Hi-Z inputs with Class-A FET circuits and 26 dB boost switches, designed to add tube-like warmth to your guitar and other instruments. All four mono channels are equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation.

The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button. The ZED-10FX offers a set of FX and aux sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with a headphone output, and a separate monitor speaker output.

  • Portable mixer for small band mixing live or in the studio
  • 24-bit effects processor with 16 time-delay effects—reverbs, delays, flanger, chorus, and more
  • Four mic/line inputs, two with Class-A FET high-impedance preamps
  • Two Hi-Z guitar/instrument inputs with boost switch and tube-like warmth
  • XLR L/R main stereo outputs with inserts
  • USB digital audio interface for recording to Mac or Windows computer
  • Use USB with FX loop to access effect plug-ins running on a computer
  • Flexible monitoring section with headphone and speaker feed outputs
  • Neutrik XLR and 1/4" connectors
  • Responsive 3-band, swept-mid EQ with MusiQ technology
  • Aux and FX sends
  • Separately switched stereo bus
  • Sound image pans
  • Illuminated PFL indicator
  • Stereo returns & playback
  • All inputs with level control knob
  • Headphones output
  • 12-bar meters
  • Two stereo inputs with MP3-player compatibility
  • Separate 2-track record outputs
  • Stereo playback input for 2-track replay
  • Stereo monitor outs
  • 48V microphone phantom power
  • DI level switching for sub mixing
Output & Send Options
  • Main mix (L/R)—post-master Level
  • Aux + FX bus—aux is a pre-fade send, FX is a post-fade send
  • Record Bus (L/R)—separate stereo bus from main mix
Return Options
  • Stereo Input 1 (RCA & 1/4")
  • Stereo Input 2 / Playback Input (USB & 1/4")
Number of Analog Input Channels 8 (4 Mono / 2 Stereo)
Number of Mic Preamps 4
Analog Output Channels 1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Tape/Record Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Built-In Effects Yes
USB I/O 1x USB-B 1.1 (I/O)
Rack Mountable No
Number of Analog Input Channels 8 (4 Mono / 2 Stereo)
Number of Mic Preamps 4
Analog Output Channels 1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Tape/Record Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Headphone Output
Signal Processing
Built-In Effects Yes
Digital Audio
Sample Rates AD/DA Conversion:
32 / 44.1 / 48 kHz
48 kHz
Bit Depth 16-Bit
DSP 24-Bit
Headroom +21 dB
Frequency Response Line Input to Main Output:
10 Hz to 25 kHz +0.5/-1 dB (Unity Gain)
Mic Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level XLR Input:
+11 dBu (Mono)
1/4" Line Input:
+31 dBu (Mono)
1/4" / RCA Input:
+15 dB (Stereo)
Output Level XLR Main Output:
0 dBu (Nominal)
+21 dBu at Max Gain
1/4" Aux/FX Output:
0 dBu (Nominal)
+21 dBu at Max Gain
Tape/Record/Monitor Output:
0 dBu (Nominal)
+21 dBu at Max Gain
EIN -127 dBu at Max Gain (150-Ohm Input)
Noise Floor Main Output:
-96 dBu (Master Level at Unity, Channel Levels at -∞, 22 Hz to 22 kHz)
THD+N Hi-Z Input to Main Output:
0.015% at Unity Gain
Line Input to Main Output:
0.003% at Unity Gain
Mic Input to Main Output:
0.002% at +10 dB Gain (1 kHz)
0.01% at +30 dB Gain (1 kHz)
Stereo Line Input to Main Output:
0.002% at Unity Gain (1 kHz)
Analog Inputs 2x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
1x Stereo RCA Unbalanced Line Input
2x 1/4" TRS Main Insert
2x 1/4" TS Hi-Z Input
4x XLR 3-Pin Balanced Mic Input
Analog Outputs 1x 1/4" FX Send (Post-Fader)
1x 1/4" Aux Send (Pre-Fader)
1x 1/4" TRS Headphone Output
1x Stereo RCA Monitor Output
1x Stereo RCA Tape Output
2x XLR 3-Pin Balanced Main Output
Phantom Power +48 V
USB I/O 1x USB-B 1.1 (I/O)
USB I/O Capacity 2x Input / 2x Output
Rack Mountable No
Dimensions 13.2 x 3.7 x 10.8" / 336 x 95 x 275 mm
Weight 7.3 lb / 3.3 kg
Packaging Info
Package Weight 10.22 lb
Box Dimensions (LxWxH) 16.45 x 12.7 x 7.1"
