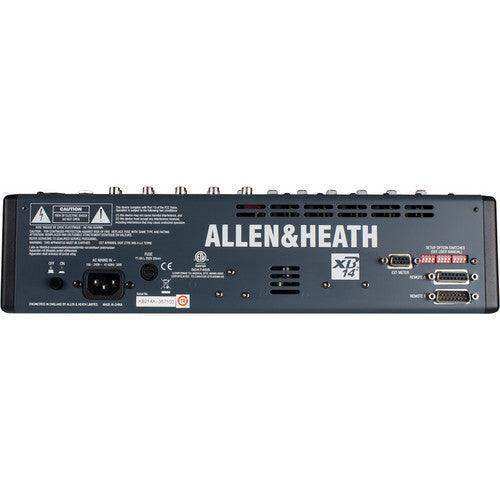

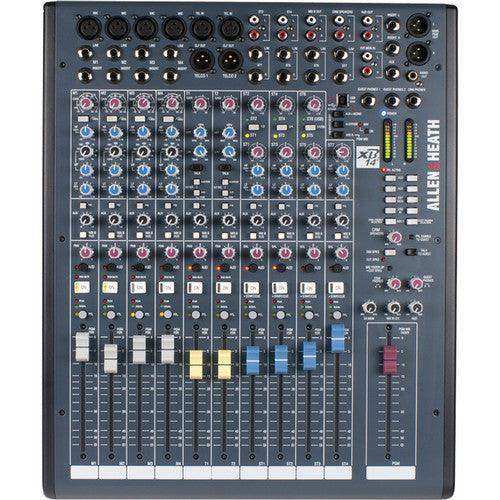

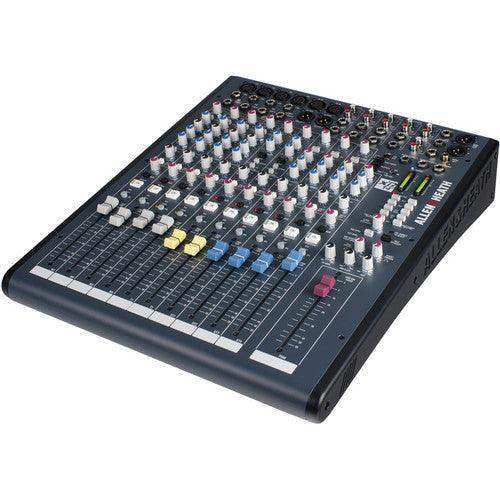

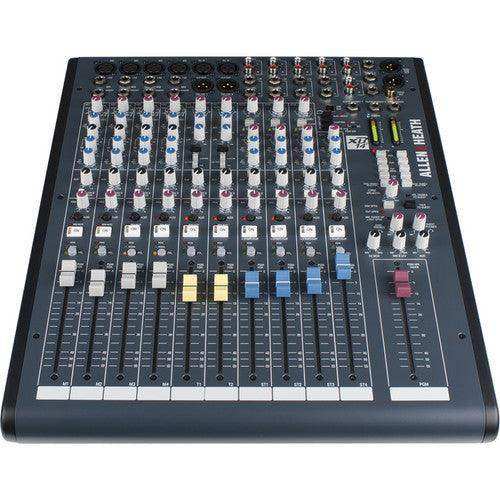

Allen & Heath XB-14² Compact Broadcast Mixer

Save 3%
Allen & Heath SKU: AH-XB2-14
No reviews
Price:
$1,739.99 $1,799.00

Description

The XB-14² by Allen & Heath is a broadcast mixer designed for self-operated broadcast applications in small radio and internet studios, as well as larger facilities with multiple rooms. It comes in a compact package and is packed with radio-friendly options usually found on large-format broadcast consoles.

This Mixer allows for an efficient and flexible workflow with features such as telephone-communication (Telco) channels, fader-start sensing, automatic muting of speaker outputs, stereo channel-start/cue outputs for CD deck-transport control, separate headphone mixes for guests, an audition bus, and more.

Separate monitor mixes can be created enabling the operator to check levels and cues without interfering with the listening sources of the presenter or guests. Using remote-interface connectors, mono channels can be remotely muted from studio-located mute or cough switches (available separately). In addition, the Talk to Guest switch allows for the operator to communicate off-air with guests, presenters, and telephone callers.

The audio circuitry of the XB-14² features four mic/line channels equipped with high-gain DuoPre preamps and 3-band EQs to help cut sibilance & mic popping, and 2-band EQs on stereo channels for use with music. The full-duplex USB sound card offers playback and record to & from a computer as well as voice over IP (VoIP), and is compliant with Mac & Windows core audio drivers.

 Flexible Routing Options
  • Four mic/line mono channels
  • Four dual-source stereo channels and a total of up to seven stereo sources
  • Aux bus for external processing, effects, recording or auditioning
  • Mix B for recording an independent mix to the main program mix, or creating a clean feed source from selected channels
  • Audition bus for auditioning or recording telephone conversations
  • 27 logic I/O for remote control
  • 15 configuration switches
  • Output matrix with three headphone outs allows separate mixes for engineer/producer and two guests
  • Talk button for off-air conversation with guests
 DuoPre Preamps The four mono channels feature DuoPre technology which employs a two-stage design to control the input gain structure of the channel. The first stage provides 69 dB of gain for the signal at the XLR input. The second stage is activated by plugging the signal into the TRS line-input jack. This gain-staging eliminates the need for pad circuit & pad switch, and ensures that the signal remains in the optimum region of its dynamic range for lower noise and distortion. USB The XB-14² is equipped with a stereo bi-directional sound card for playback, recording, or voice over IP (VoIP) to and from a computer. Its USB 1.1 audio codec is compliant with USB 2.0 ports and Windows & Mac core audio drivers. Telco Two Telco channels provide a selectable clean-feed output (L/R PGM, Aux or audition bus), variable high-pass and low-pass filters which are useful when a caller is connected via a low-quality telephone line, and a talk button that allows for communication with a telephone caller without the presenter's voice going to the program mix. Remote Control The mono mic/line channels feature fader-start sensing to control external devices or to automatically mute speaker outputs to prevent feedback. The stereo channels are equipped with start & cue logic outputs used for CD deck transport control. Mic/line input channels can be remotely muted using an external "cough" switch (available separately). Robust Construction The XB-14² features individual vertically-mounted channel circuit boards with rotary controls fixed to the front panel using metal nuts. This robust construction allows for removing channels from the mixer one at a time and for easily changing faders, making servicing minimally disruptive. Additional Features
  • HPF and 3-band, swept-mid EQ on mono channels
  • 2-band EQ on stereo channels
  • Smooth-ride 100mm faders
  • Auto-mute on control-room outputs
  • XLR main outputs with inserts
  • External-meter socket
  • Input-signal and peak metering
Number of Analog Input Channels 14 (6 Mono / 4 Stereo)
Number of Mic Preamps 4
Analog Output Channels 1x Stereo Master Output
1x Mono Master Output
1x Stereo Control Room/Monitor Output
2x Stereo Foldback/Cue Output
1x Stereo Headphone Output
Built-In Effects No
USB I/O 1x USB-B 1.1 (I/O)
Rack Mountable No
Mixer
Number of Analog Input Channels 14 (6 Mono / 4 Stereo)
Number of Mic Preamps 4
Analog Output Channels 1x Stereo Master Output
1x Mono Master Output
1x Stereo Control Room/Monitor Output
2x Stereo Foldback/Cue Output
1x Stereo Headphone Output
Signal Processing
Built-In Effects No
Digital Audio
Sample Rates 32 / 44.1 / 48 kHz
Bit Depth 16-Bit
Performance
Headroom Analog Output: +21 dB
Main Mix: +24 dB
Frequency Response Mic Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 20 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level XLR Mic Input:
+17 dBu
1/4" TRS Line Input:
+30 dBu
1/4" TRS Insert:
+21 dBu
XLR Line Input:
+30 dBu (max)
Output Level XLR Main Output:
+4 dBu (Nominal)
+25 dBu at Max Gain
RCA Mono Output:
0 dBu (Nominal)
+21 dBu at Max Gain
Main/Insert Send:
-2 dBu (Nominal)
+21 dBu at Max Gain
Aux Output:
0 dBu (Nominal)
+21 dBu at Max Gain
RCA Alt Output:
0 dBu (Nominal)
+21 dBu at Max Gain
Crosstalk -95 dB (+10 dBu, 1 kHz to 10 kHz)
EIN -124 dBu at Max Gain (150-Ohm Input)
Noise Floor Main Output:
< -100 dBu (at Unity Gain, 22 Hz to 22 kHz)
Alt Output:
< -100 dBu (at Unity Gain, 22 Hz to 22 kHz)
Aux Output:
< -85 dBu (at Unity Gain, 22 Hz to 22 kHz)
THD+N Mic Input to Main Output:
< 0.01% at Unity Gain (+10 dBu, 1 kHz)
Mic Input to Main Output:
< 0.01% at +30 dB Gain (+10 dBu, 1 kHz)
Line Input to Main Output:
< 0.01% at Unity Gain (0 dBu, 1 kHz)
Stereo Line Input to Main Output:
< 0.01% at Unity Gain (+10 dBu, 1 kHz)
Connectivity
USB I/O 1x USB-B 1.1 (I/O)
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz (T 10 A 250 V)
Power Consumption 30 W
Physical
Rack Mountable No
Dimensions 15.2 x 4.1 x 18.3" / 385 x 103 x 465 mm
Weight 16.5 lb / 7.5 kg
Packaging Info
Package Weight 20 lb
Box Dimensions (LxWxH) 20.5 x 17.2 x 9.5"
