Allen & Heath SQ-6 48-Channel / 25 Faders, 6 Fader Layers, 32 x 32 USB Interface, and Network Audio Support

Allen & Heath SKU: AH-SQ-6
No reviews
Price:
$5,199.00

Description

The Allen & Heath SQ-6 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-6 features 24+1 motorized faders and 24 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

At the heart of the SQ-6 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel / mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.

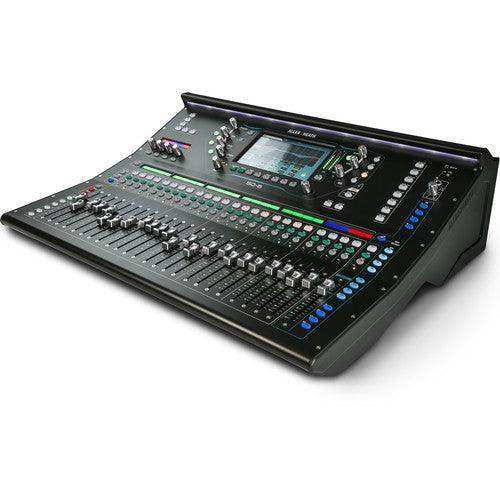

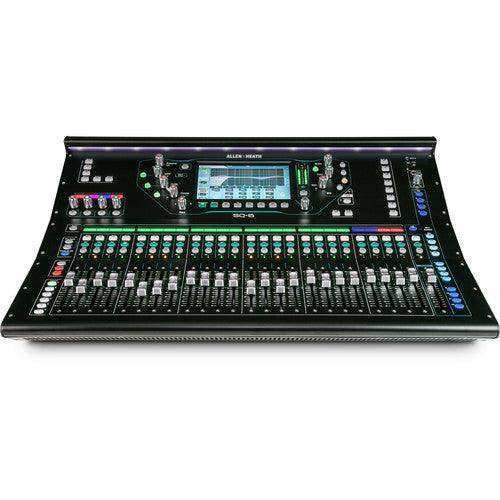

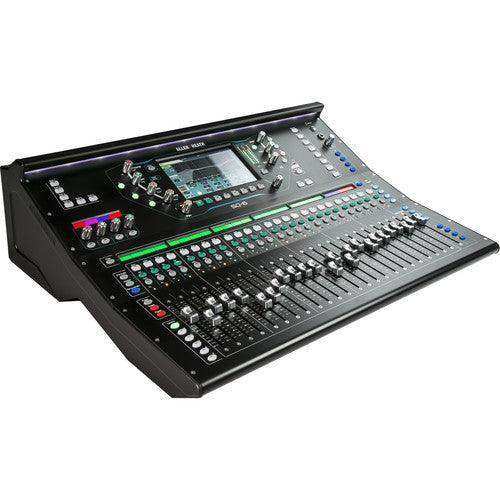

The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-6 offers softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, making it well suited for virtual sound checks and studio mixing.

The SQ-6 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-6 ships with a power cord.

  • Compact digital mixer for live, studio, and installation
  • 48 input channels
  • 24 local mic inputs (XLR)
  • Two 1/4” stereo inputs (TRS)
  • One 1/8" stereo input
  • 36 total busses
  • 12 stereo mixes (Aux or Group) + Main
  • PAFL bus
  • 16 assignable local outputs (14 XLR + two 1/4” TRS)
  • AES digital output
  • Dedicated talkback mic input (XLR)
  • 1/4" TRS headphone out with dedicated control
  • SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64x64 channels)
  • I/O port for option card (including 3rd party protocols – Dante/Waves)
  • 8 mute groups
  • 8 DCA groups
  • 8 stereo FX with dedicated FX returns
  • DEEP processing ready
  • RackFX effects suite
  • 7" color touchscreen
  • 16 assignable SoftKeys

Allen & Heath SQ-6 Specs

 Mixer
Number of Analog Input Channels 48
Number of Mic Preamps 24
Number of Analog Output Channels 16
Max I/O Capacity 48 x Input / 36 x Output
Mix Routing 8 x Stereo FX Return
Groups 8 x Mute Group
8 x DCA Group
Presets Yes
Display 7" Touchscreen
Display Resolution/Color Main Display:
800 x 480 8-Bit RGB
Faders & Level Adjustment 25 x 3.9" / 100 mm
Meters Main Meter:
2 x 12-Segment LED
Channel Meter:
Single LED
Meter Range -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range Line:
±24 dB (Stereo Channels)
Line/Mic:
0 dB to +60 dB (in 1 dB Steps)
Input Pad -20 dB
Input Polarity Normal/Reverse
Dynamic Processing Input Channels:
Compressor, Gate
Master:
Compressor, Limiter
Gate Parameters Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters Threshold: -46 to +18 dBu
Ratio: 1:1 to ∞:1
Attack: 30 μs to 300 ms
Release: 50 ms to 2 sec
Knee: Soft / Hard
Blend: Yes
Sidechain Filters Compressor:
High-Pass: 20 to 5 kHz
Band-Pass: 120 Hz to 10 kHz
Low-Pass: 120 Hz to 20 kHz
Gate:
High-Pass: 20 Hz to 5 kHz
Band-Pass: 120 Hz to 10 kHz
Low-Pass: 120 Hz to 20 kHz
EQ FX Returns:
4-Band Parametric
EQ Parameters 1 x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2 x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1 x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Solo/Mute Mute, PFL per Input Channel, Bus, Master
Channel Output/Source Monitoring AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return
Built-In Effects Reverb
Stereo Delay (Tap)
Reverb (Gated)
ADT
2 x Chorus
Flanger
Phaser
Real Time Analyzer 31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay Adjustable Up to 682 ms
Automatic Mic Mixing Yes
Digital Audio
Sample Rates 96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Latency < 0.7 ms (Mic Input to Main Output)
Performance
dBFS Reference Level +18 dBu = 0 dBFS
Headroom +18 dB
Frequency Response 20 Hz to 20 kHz +0/-0.5 dB
Max Input Level Mic/Line Input:
+30 dBu
Aux Input:
+22 dBu (+4 dBu)
+18 dBu (0 dBu)
Output Level Analog Output:
+4 dBu (2901653169)
+22 dBu (2901653168)
Analog Dynamic Range 112 dB
I/O Impedance 1/4", XLR Output:
< 75 Ohms
AES3 Output:
110 Ohms
Aux Input:
> 7 Kilohms
Line/Mic Input:
> 5 Kilohms
Noise Floor -90 dBu (with Inputs Muted)
THD+N 0.006% at Unity Gain
Mic/Line Input to AES3 Output:
0.002% at Unity Gain
0.003% at +30 dB Gain
Signal Generator Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

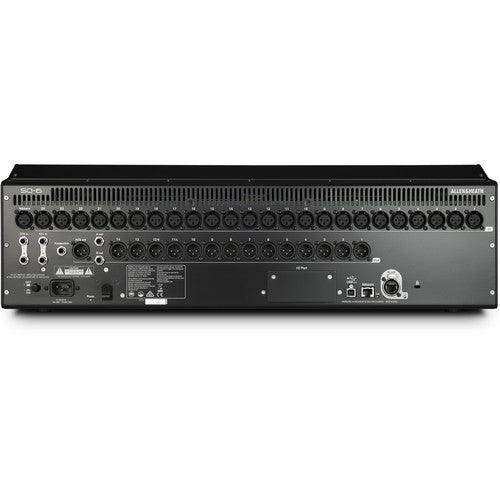

Connectivity
Analog Inputs 1 x XLR Talkback Input
24 x XLR Balanced Mic/Line Input
4 x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled)
1 x 1/8" / 3.5 mm Unbalanced Aux Input
Analog Outputs 14 x XLR Balanced Output
2 x 1/4" TRS Balanced Output
Phantom Power +48 V
Digital I/O 1 x RJ45 (Network)
1 x XLR AES3 Output
1 x etherCON (I/O)
MIDI I/O None
USB 1 x USB-A (External Memory)
1 x USB-B 2.0 (Audio Streaming)
Expansion Ports 1 x I/O Card
Mobile App Compatible Yes: Android & iOS
App Name: SQ MixPad
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup
Recording
Max Multitrack Recording 16 Tracks
Media Support USB Drive
File Format Support WAV
Compatibility
OS Compatibility Windows 10 (64-Bit Only)
macOS 10.14 to 11 (64-Bit Only)
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Mobile Device Compatibility Android Smartphone
Android Tablet
iPad
iPhone
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x IEC Input
Power Consumption 90 W
Physical
Rack Mountable No
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 25.1 x 20.3 x 7.8" / 638 x 514.9 x 198 mm
Weight 29.3 lb / 13.3 kg
Packaging Info
Package Weight 40.3 lb
Box Dimensions (LxWxH) 32.5 x 27 x 14.5"
