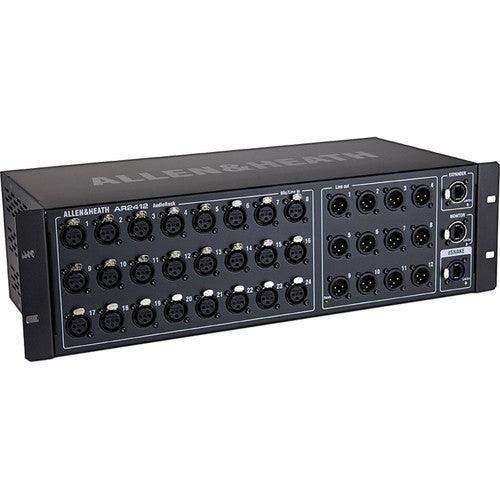

Allen & Heath AR2412 – 24x12 Remote Stage Rack for GLD & Qu Mixers

Product Overview

The Allen & Heath AR2412 is a 24-input, 12-output remote stage rack designed for use with GLD-80, GLD-112, and Qu-series mixing systems. It connects to the mixer via a single Cat 5 cable running the Allen & Heath dSNAKE protocol, positioning the stage rack up to 120 meters from the mixing position. For live sound engineers and house of worship AV integrators who need to extend mic and line connectivity from a remote stage position, the AR2412 provides a complete Allen & Heath dSNAKE stage rack for GLD and Qu live sound systems. All 24 mic preamps are remotely controlled and scene-recallable from the mixer, giving engineers consistent recall without requiring anyone on stage during the show.

Product Description

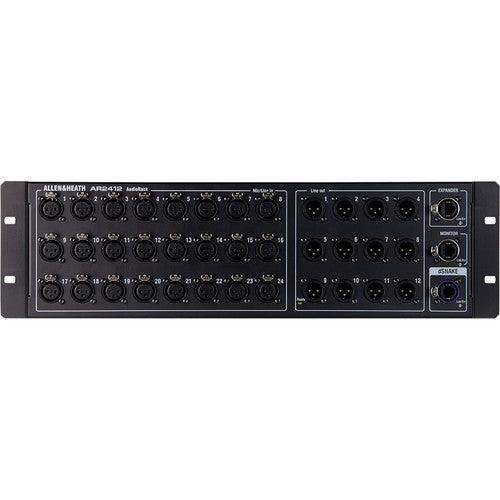

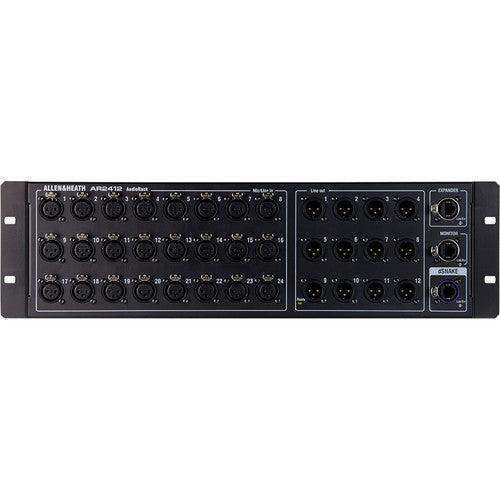

The AR2412 provides 24 XLR mic/line inputs and 12 XLR line outputs in a road-ready chassis. All preamps are controlled remotely from the GLD or Qu surface — gain, phantom power, and pad settings are stored in scene memories and recalled automatically during showfile load, which is a key operational advantage in houses of worship and production facilities with multiple users or events per week.

A single Cat 5 cable handles all audio, control, and phantom power negotiation between the AR2412 and the mixer. The dSNAKE protocol operates over this connection at up to 120 meters, making it suitable for large sanctuaries, theater stages, and outdoor venues where a traditional copper analog multicore would be heavy, expensive, and difficult to route. The 12 XLR line outputs support monitor amplifiers, in-ear monitor systems, playback feeds, or zone distribution at the stage position.

For larger systems, an AR84 or AB168 AudioRack can be connected directly to the AR2412, adding up to 16 additional XLR inputs and 8 XLR outputs — extending the total I/O count without requiring a second Cat 5 run from the mixer. The AR2412 also includes an Aviom Pro16-compatible monitor port, making it straightforward to integrate personal monitor systems for performers without additional distribution hardware. This makes it a practical Allen & Heath AR2412 stage rack for house of worship live sound with personal monitoring.

Key Features

• 24 XLR Mic/Line Inputs — Full complement of mic preamps with remote control of gain, phantom power, and pad from the GLD or Qu surface.
• 12 XLR Line Outputs — Balanced outputs for monitor amplifiers, in-ear systems, or zone distribution at the stage position.
• Single Cat 5 dSNAKE Connection — All audio and control over one Cat 5 cable, up to 120 meters from the mixing position.
• Scene-Recallable Preamps — All preamp settings are stored in GLD and Qu scene memories for consistent recall across events and operators.
• AudioRack Expansion — Connect an AR84 or AB168 to add up to 16 further XLR inputs and 8 XLR outputs.
• Aviom Pro16 Monitor Port — Compatible monitor port for integrating Aviom personal monitor systems for performers.
• GLD and Qu Compatible — Works with GLD-80, GLD-112, and the full Qu series (Qu-16, Qu-24, Qu-32, Qu-Pac, Qu-SB).

Typical Applications

• House of worship live sound systems with remote stage mic connectivity
• Live sound touring and production using GLD or Qu mixing systems
• Commercial AV installations requiring a remote stage rack with dSNAKE connectivity

Technical Specifications

Frequently Asked Questions

Which Allen & Heath mixers are compatible with the AR2412?

The AR2412 is compatible with GLD-80, GLD-112, and the full Qu series including Qu-16, Qu-24, Qu-32, Qu-Pac, and Qu-SB. It is not compatible with dLive or Avantis systems.

How long can the Cat 5 cable run be?

The dSNAKE protocol supports a maximum Cat 5 cable run of 120 meters (approximately 393 feet) between the AR2412 and the mixer.

Can the AR2412 be expanded with additional I/O?

Yes. An AR84 (adds 8 in / 4 out) or AB168 AudioRack (adds 16 in / 8 out) can be connected directly to the AR2412, increasing total system I/O without an additional Cat 5 run from the mixer.

Are preamp settings saved and recallable?

Yes. All preamp parameters — including gain, phantom power, and pad — are stored in the GLD and Qu scene memory system and restored automatically on scene recall.

Does the AR2412 work with personal monitor systems?

Yes. The AR2412 includes an Aviom Pro16-compatible monitor port, allowing direct connection of Aviom personal monitor systems for performers without additional distribution hardware.

Is the AR2412 rack mountable?

The AR2412 is a stage rack unit. Contact Creation Networks for current mounting and installation accessory options.

What warranty applies?

Standard Allen & Heath manufacturer warranty. Contact Creation Networks for warranty registration and support details.
