Allen & Heath Qu-32C with Stage Rack Kit – 32-Channel Digital Mixer Bundle

The Allen & Heath Qu-32C Digital Mixer with Stage Rack Kit packages a full-featured 32-channel digital console with a 24-input AR2412 stage rack and 100-foot etherCON cable into a single production-ready bundle. The Qu-32C features 32 of Allen & Heath's recallable AnalogiQ mic preamps, 33 motorized faders, and a 7-inch touchscreen, delivering the I/O capacity and control depth demanded by mid-to-large live sound and installed system applications. The chrome knob and fader cap edition improves tactile differentiation and visibility under stage lighting. With dSNAKE digital connectivity linking the console to the AR2412 stage rack, a single Cat5 cable replaces a full analog snake, reducing setup time and stage clutter.

Product Description

At the core of this kit is the Qu-32C console, a 38-input / 28-output digital mixing surface built around Allen & Heath's 5-core ARM processor. The 32 AnalogiQ preamps are fully recallable across scenes, allowing engineers to store and restore complete gain structures for multi-act events or recurring installations without manual re-patching. Four built-in stereo FX engines (reverb, delay, chorus, phaser, flanger, ADT) handle in-house processing needs without requiring outboard gear.

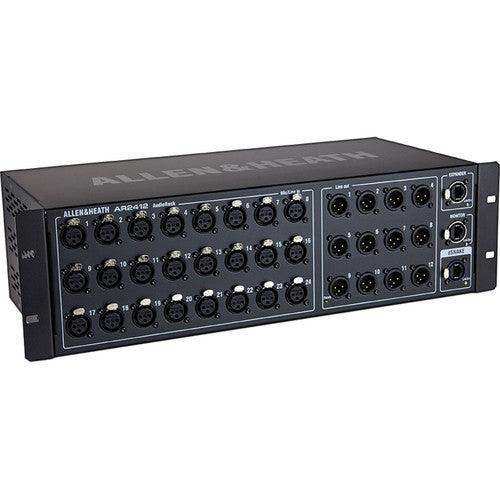

The included AR2412 stage rack provides 24 remote mic/line inputs and 12 outputs, connecting to the Qu-32C via the included 100-foot latching etherCON Cat5 cable. The dSNAKE protocol carries up to 40 channels of audio over a single Cat5 cable, eliminating the weight and complexity of traditional copper snakes. Remote preamp control from the console surface keeps the stage rack a passive extension of the mix environment.

The Qu-32C's 33 motorized 100 mm faders automate mix recall and support Sends on Faders workflow for monitor engineering. An AES3 digital output, USB-B audio streaming (32x32 at 48 kHz to a DAW), USB-A for multitrack recording to flash memory, and built-in Wi-Fi for iPad control via the Qu-Pad app round out a comprehensive connectivity set. The mixer outputs include 10 XLR mix buses, 2 XLR main outputs, 4 XLR subgroups, 4 XLR matrix outputs, and 4 balanced TRS auxiliary outputs.

Key Features

• 32 AnalogiQ Recallable Preamps — Fully recallable gain, phantom power, and pad settings stored per scene; consistent performance across multi-act or multi-day events
• 33 Motorized 100 mm Faders — Automated fader recall for fast scene transitions and Sends on Faders monitor engineering workflow
• AR2412 Stage Rack Included — 24-input / 12-output remote stage box connects via dSNAKE protocol over a single Cat5 cable
• 100-Foot etherCON Cable Included — Latching RJ-45 etherCON cable provides reliable digital snake connection up to 100 metres
• 4 Stereo FX Engines — Onboard reverb, delay, gated reverb, ADT, chorus, phaser, and flanger eliminate the need for outboard effects in most applications
• Built-In Wi-Fi — Native Wi-Fi enables wireless mixing from iPad via the Qu-Pad app without an external router
• USB Multitrack Recording — USB-A port records directly to flash memory; USB-B streams 32x32 channels to a DAW for live recording or virtual soundcheck
• Chrome Edition Knobs and Faders — High-contrast chrome controls improve visibility in low-light stage and venue environments

Typical Applications

• House of worship main FOH and monitor console with stage rack deployment
• Auditorium live sound reinforcement requiring a digital snake solution
• Multi-purpose room and performing arts center installed sound systems
• Touring and rental production rigs needing a portable 32-channel console and stage rack
• Broadcast studio live recording with multitrack USB capture

Technical Specifications

Frequently Asked Questions

What is included in this kit?

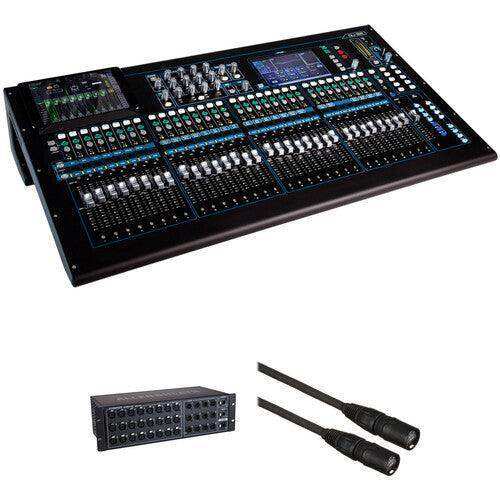

This kit includes the Allen & Heath Qu-32C Chrome Edition digital console, the AR2412 24-input / 12-output stage rack, and a 100-foot etherCON Cat5 cable with latching RJ-45 connectors.

Can I connect additional stage racks to the Qu-32C?

The Qu-32C has a single dSNAKE etherCON port. It can connect to one AR2412 or AR84 stage rack directly. Additional expansion via the ME personal mixing system is also possible from the stage rack's dSNAKE port.

Does the Qu-32C support wireless mixing?

Yes. The Qu-32C has built-in Wi-Fi. The Allen & Heath Qu-Pad app for iPad connects directly to the console over Wi-Fi for wireless front-of-house or monitor mixing without an external wireless router.

What is the maximum recording channel count via USB?

The Qu-32C supports 32x32 USB audio streaming to and from a Mac or Windows DAW via the USB-B port, and direct stereo or multitrack recording to a USB flash drive via the USB-A port.

Is the Qu-32C compatible with the ME personal monitoring system?

Yes. The ME personal mixing system connects via the dSNAKE port on the connected AR stage rack, allowing ME-1 and ME-500 personal mixers to be daisy-chained for performer-controlled monitoring.

What is the difference between the Qu-32 and the Qu-32C?

The Qu-32C (Chrome Edition) features chrome-finish rotary knobs and fader caps for improved visibility in dark stage environments. It also includes updated firmware (V1.8 and beyond) with additional software enhancements. Audio performance and I/O specifications are identical to the standard Qu-32.

Can the Qu-32C be used for installed AV applications?

Yes. The Qu-32C is well suited for permanent installation in houses of worship, auditoriums, and multi-purpose venues. Scene recall, motorized faders, and remote preamp control via the stage rack make it practical for operators with varying skill levels.
