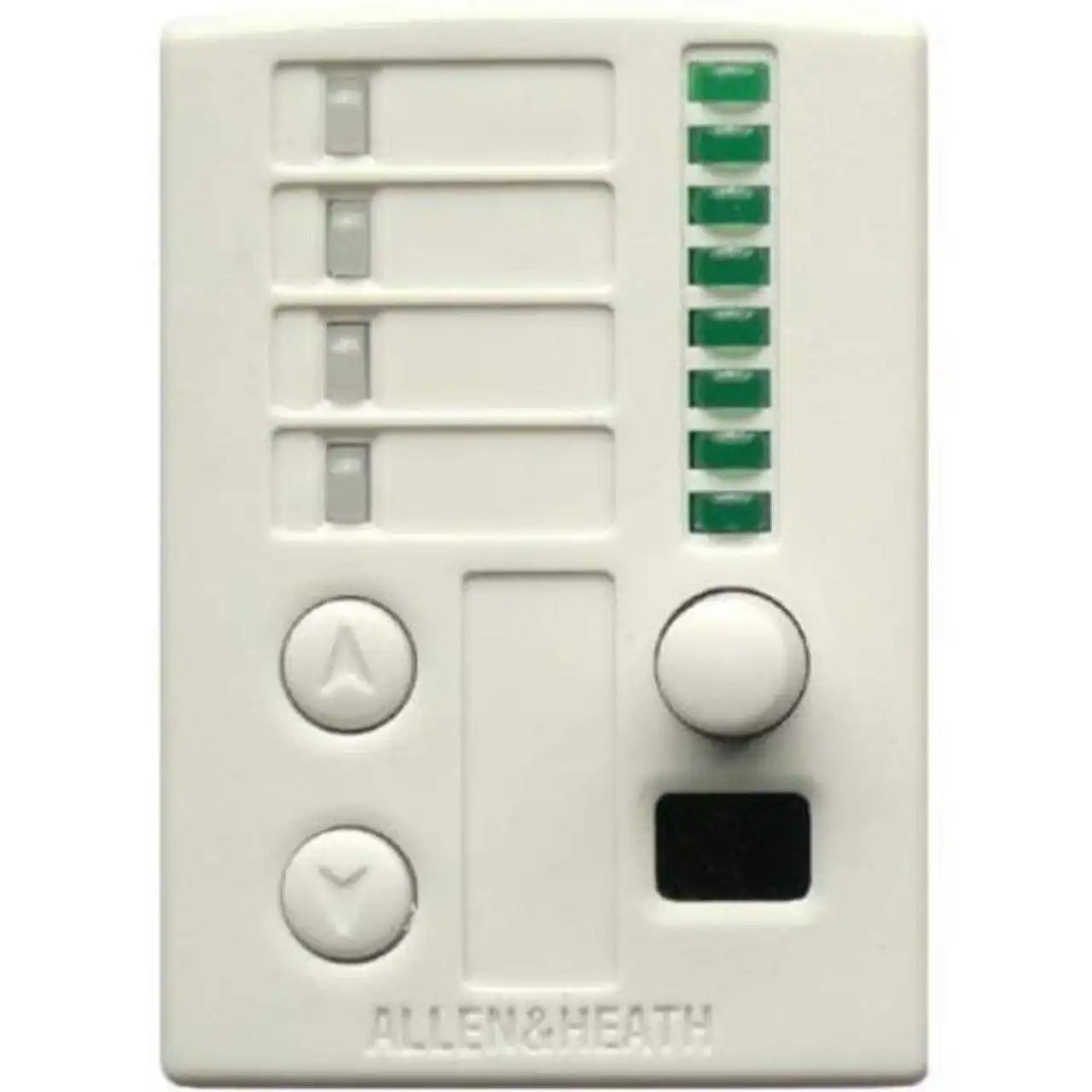

Allen & Heath AH-PL-14 – Wall Plate Remote Controller with IR Sensor for GR3 & GR4

Product Overview

The Allen & Heath AH-PL-14 is an intelligent wall plate remote controller designed specifically for use with Allen & Heath's GR3 and GR4 audio zone mixer series, providing non-technical operators with intuitive local control of music source selection and audio level in commercial multi-zone audio installations. Up to two PL-14 controllers can be connected per GR3/GR4 system — one per zone, or a single unit controlling both zones simultaneously — enabling flexible coverage of a facility's audio zones from fixed wall points. The PL-14 incorporates an infrared (IR) sensor for remote control reception, extending operation to handheld IR transmitters for maximum operator flexibility. As a purpose-built accessory for the GR series, the PL-14 communicates intelligently with the zone mixer rather than simply attenuating signal, preserving audio quality and system reliability.

Product Description

The GR3 and GR4 zone mixers from Allen & Heath are compact, professional-grade audio matrix systems used in commercial multi-zone audio installations including retail environments, restaurants, hotels, corporate offices, and houses of worship. These mixers provide centralized audio routing and zone management from a rack-mounted or equipment-room unit, but many installations require local control at the zone level — allowing a restaurant manager, a front-desk attendant, or a meeting room occupant to adjust volume or change the music source without accessing the central equipment room. The PL-14 provides exactly this capability.

The PL-14's "intelligent" designation refers to its direct integration with the GR series system architecture. Unlike a passive volume control that simply attenuates audio in the cable run, the PL-14 communicates with the GR mixer over its dedicated control bus, sending commands that the mixer processes and executes. This approach maintains the full performance of the analog signal path, avoids impedance loading issues associated with passive controls, and enables the mixer to log and respond to control states appropriately.

Source selection capability allows the operator to choose between available audio sources assigned to that zone by the system installer. This is particularly valuable in retail and hospitality environments where different audio zones — a dining room versus a bar, a lobby versus a conference room — may need to play different programs simultaneously from a shared source library. The PL-14 puts this selection in the operator's hands at the point of use.

The built-in IR sensor accepts commands from a battery-powered handheld remote, enabling source selection and level adjustment from across a room without approaching the wall plate. This feature suits applications where the wall plate is installed at a height or location that makes it inconvenient to reach during regular operation — such as behind a reception desk, at ceiling height in a server room, or in a hospitality suite.

The wall plate form factor integrates cleanly into standard single-gang wall box cutouts, matching the aesthetic of professional commercial interiors. For AV integrators and system designers, the PL-14 is the correct accessory specification whenever a GR3 or GR4 installation requires local zone control, and should be included as a line item in any GR series bill of materials where operator interaction at the zone level is expected.

Key Features

• Designed for GR3 & GR4 zone mixers — communicates directly over the GR control bus; not a generic passive control
• Music source selection — allows local operators to select from sources assigned to the zone at commissioning
• Audio level control — adjust zone volume from the wall without accessing the central equipment room
• IR sensor included — receives commands from a handheld IR remote for hands-free or across-room control
• Dual-zone capability — up to two PL-14 units per GR3/GR4 system; one per zone or single unit controlling both
• Intelligent control architecture — commands processed by the GR mixer, preserving analog signal path integrity
• Standard wall plate form factor — installs into a single-gang wall box for clean integration in commercial interiors
• Non-technical operator interface — simple controls suitable for use by non-AV staff in retail, hospitality, and corporate environments

Typical Applications

• Multi-zone commercial audio — local zone volume and source control in retail stores, restaurants, hotels, and entertainment venues
• Retail environments — allow floor staff to adjust background music volume without accessing the equipment room
• Hospitality — give hotel conference rooms, bars, and dining areas independent audio control from a wall plate
• Corporate boardrooms and offices — enable meeting room occupants to control background music or paging audio locally
• Houses of worship — provide separate zone audio control for foyer, sanctuary, and overflow areas from dedicated wall positions
• Educational facilities — allow classroom or common area audio adjustment without requiring IT or AV staff involvement

Technical Specifications

Frequently Asked Questions

Which Allen & Heath mixers are compatible with the PL-14?

The PL-14 is compatible with the Allen & Heath GR3 and GR4 audio zone mixers only. It is not designed for use with other Allen & Heath products such as the ZED, SQ, or dLive series.

How many PL-14 units can be connected to a single GR system?

Up to two PL-14 controllers can be connected per GR3 or GR4 system. Each can control an individual zone, or one unit can control both zones simultaneously depending on configuration.

Does the PL-14 include a handheld IR remote?

The PL-14 includes an IR sensor on the wall plate that receives IR commands. The battery-powered handheld remote transmitter is a separate accessory. Consult Allen & Heath or Creation Networks for the compatible handheld remote.

Can the PL-14 be used to set a maximum volume level to prevent operator override?

Volume limits and access restrictions are configured in the GR mixer itself, not in the PL-14. The GR3/GR4 allows installers to set operational limits that the PL-14 respects, preventing untrained operators from adjusting levels beyond safe or permitted thresholds.

What is the wiring requirement for installing the PL-14?

The PL-14 connects to the GR mixer via the designated remote port. Refer to the Allen & Heath GR3/GR4 and PL-14 installation documentation for cable type, connector, and maximum run length specifications.

Is the PL-14 suitable for outdoor installation?

The PL-14 is a standard interior wall plate controller and is not rated for outdoor use. Outdoor or wet-location installations require weatherproof enclosures or purpose-built outdoor controls.

Can I install the PL-14 myself, or do I need a professional AV installer?

While the physical wall plate installation is straightforward, correct wiring to the GR mixer and zone configuration requires knowledge of the GR series system architecture. Professional installation by a qualified AV integrator is recommended.
