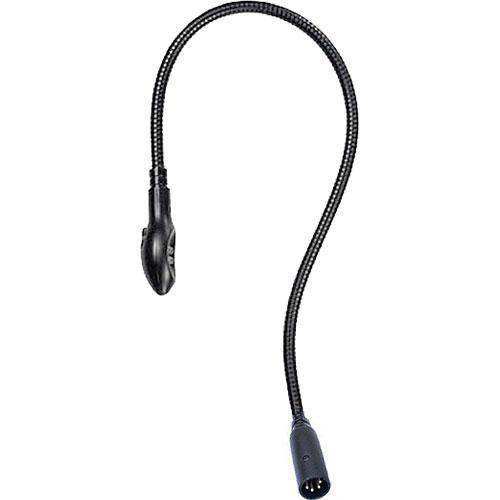

Allen & Heath AH-LEDLAMP-SX – 18" LED Console Lamp with Dimmer Control

Product Overview

The Allen & Heath AH-LEDLAMP-SX is an 18-inch LED console lamp powered via a 4-pin XLR connector, designed to illuminate the control panel of Allen & Heath ML, PA, GL4000, and MixWizard-series mixing consoles. The straight-neck design positions the light directly over the channel strips and controls without obstructing the operator's sight line, while the integrated dimmer allows precise brightness adjustment to match ambient light conditions on any stage or in any venue. The cool-white LED emitter produces less heat than a filament lamp and consumes significantly less energy, making it a practical, long-service replacement for older console lighting solutions.

Product Description

Console lighting is a practical necessity for any live sound environment where stage lighting levels are low or frequently changing. The AH-LEDLAMP-SX connects to the 4-pin XLR lamp socket found on Allen & Heath ML, PA, GL4000, and MixWizard consoles, drawing power directly from the mixer without the need for a separate power supply. This integrated approach keeps the work surface cable-free and ensures the lamp is always powered whenever the console is active.

The LED light source generates minimal heat output compared to traditional incandescent or halogen console lamps, reducing the risk of operator discomfort during extended shows and eliminating heat-related component stress near the console surface. The dimmer control on the lamp body allows the engineer to reduce brightness for dark or theatrical environments without fully extinguishing the light. At 18 inches, the lamp arm length provides broad, even illumination across the mixer's channel strips and metering section. For engineers operating Allen & Heath ML, PA, GL4000, or MixWizard consoles in live environments, the AH-LEDLAMP-SX is the manufacturer-specified illumination solution.

Key Features

• 18" Straight-Neck LED Lamp — positions light evenly across the console panel without obstructing the operator's view
• 4-Pin XLR Powered — connects directly to the console's lamp socket; no separate power supply required
• Integrated Dimmer Control — adjustable brightness for theatrical, live, and broadcast environments
• Cool White LED Emitter — minimal heat output compared to incandescent or halogen alternatives
• Energy Efficient — lower power consumption extends the useful operating life and reduces console power draw
• Compatible with ML, PA, GL4000, and MixWizard — designed to the 4-pin XLR lamp specification used across multiple Allen & Heath console families
