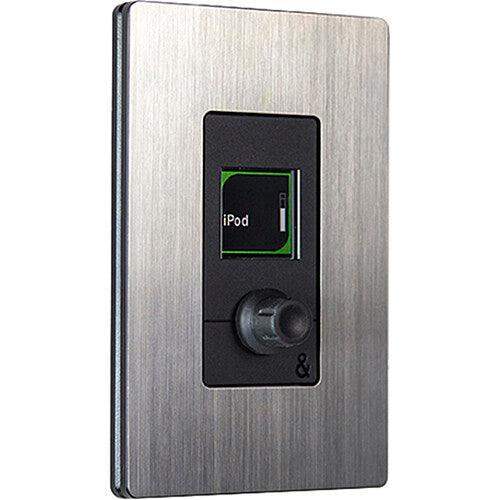

Allen & Heath AH-IP-1B – IP1 Wallplate Programmable Remote Controller (Black)

Product Overview

The Allen & Heath AH-IP-1B IP1 is a PoE-powered wallplate remote controller designed for use with Allen & Heath AHM audio system processors, Avantis mixers, and dLive S-Class and C-Class surfaces and MixRacks. Installed in a standard Decora-style wallplate faceplate, it provides non-technical end users with a simple interface for controlling music source selection, zone volume level, and scene or preset recall via a single push-and-turn rotary encoder and a color LCD screen. Up to 32 IP1 controllers can be deployed on a single Ethernet L3-based network, making it scalable for large commercial AV installations with multiple control zones. This model features a black finish for installations with dark electrical hardware throughout.

Product Description

Commercial AV installations increasingly require end-user audio control interfaces that blend with the architectural finish of the space while providing reliable, intuitive functionality. The AH-IP-1B IP1 in black is the appropriate choice for facilities with black Decora electrical finish, offering the same full-featured control capability as the white AH-IP-1W in a finish that matches dark architectural hardware in modern boardrooms, hospitality venues, and performance spaces.

The single push-and-turn rotary encoder is the sole physical control. Turning it adjusts the current parameter displayed on the color LCD screen — most commonly zone volume level in standard installations. Pressing the encoder advances through available parameters or confirms selections. This minimal interface requires no user training and eliminates the risk of accidental parameter changes that arise with multi-button control surfaces.

The color LCD screen provides unambiguous visual feedback for all three supported control functions: zone level (displays zone name and current level), source selection (displays available sources and active selection), and scene/preset recall (displays scene names for selection). The programmable nature of all three functions means the system integrator can configure exactly which controls are available at each wallplate location, limiting access to only the parameters appropriate for that user and zone.

Power and network data arrive over a single Cat5e or Cat6 Ethernet cable via PoE, eliminating the cost and complexity of running separate low-voltage power to each controller location. In multi-zone facilities with dozens of control points, this simplification of infrastructure is a significant benefit for both initial installation cost and long-term maintenance.

Up to 32 IP1 controllers — in any combination of black (AH-IP-1B) and white (AH-IP-1W) — can be connected to a single Allen & Heath AHM, Avantis, or dLive system simultaneously. All controllers on the same system can be independently programmed with different parameters, zone assignments, and available functions.

Key Features

• Compatible with AHM, Avantis, dLive S/C Class — Works with Allen & Heath's current professional audio processor and console lineup
• Decora Faceplate Compatible — Fits standard North American Decora wallplate faceplates for seamless architectural integration
• Push-and-Turn Rotary Encoder — Single intuitive control for level adjustment, source selection, and preset recall
• Color LCD Display — Clear visual feedback of current parameter, zone name, and control state
• PoE Powered — Single Cat5e/Cat6 cable carries both network data and power to the controller
• Up to 32 Controllers per System — Scalable for large multi-zone commercial AV installations
• Ethernet L3 Network Control — IP-based remote control compatible with standard enterprise network infrastructure
• Zone Level, Source Selection, Scene Recall — Three primary control functions programmable per controller
• Black Finish — Matches dark Decora electrical finish for architecturally consistent installations

Typical Applications

• Multi-zone commercial AV installations with dark architectural finish requiring matching control hardware
• Corporate boardrooms and executive conference facilities with black electrical hardware
• Hospitality properties (hotels, upscale restaurants, nightclubs) with black interior design hardware
• Houses of worship and performing arts centers with dark-finish installation requirements
• Corporate campus audio systems using AHM processors with multi-zone zone-level control
• Education facilities using dLive or AHM for distributed audio with simple room-level control
• Broadcasting facilities requiring discreet, minimal-footprint control interfaces at talent positions

Technical Specifications

Frequently Asked Questions

What Allen & Heath systems is the IP1 compatible with?

The IP1 is compatible with AHM audio system processors, Avantis mixers, and dLive S-Class and C-Class surfaces and MixRacks. It is not compatible with Qu, GLD, or iLive systems.

How many IP1 controllers can be connected to a single system?

Up to 32 IP1 controllers can be connected to a single Allen & Heath system. This count includes any combination of white (AH-IP-1W) and black (AH-IP-1B) units.

Can black and white IP1 units be mixed on the same system?

Yes. The AH-IP-1B and AH-IP-1W are functionally identical. Any combination of both colors can be deployed on the same system up to the 32-controller limit.

What cable is required to connect the IP1 to the network?

Standard Cat5e or Cat6 Ethernet cable. The cable delivers both PoE power and network control data to the controller in a single run.

Does the IP1 require a separate power supply?

No. The IP1 is powered entirely via PoE from a compatible PoE network switch. No separate power supply or transformer is required at the wallplate location.

Can different IP1 controllers on the same system be programmed with different functions?

Yes. Each IP1 controller is independently programmable. One controller can be set to adjust zone level for a lobby, while another in the same facility is configured for source selection in a meeting room.

What is the difference between the AH-IP-1B and the AH-IP-1W?

The AH-IP-1B has a black finish and the AH-IP-1W has a white finish. All specifications, compatibility, and functionality are identical between the two models.

Is the IP1 appropriate for a boardroom installation where only level control is needed?

Yes. The IP1 can be programmed to expose only zone level control, hiding source selection and scene recall from the end user. This is the recommended configuration for boardroom and conference room deployments where the AV team manages source routing.
