Allen & Heath AH-DX012 Recessed Rack Ear Kit for DX012 Remote Output Expander (Pair)

Product Overview

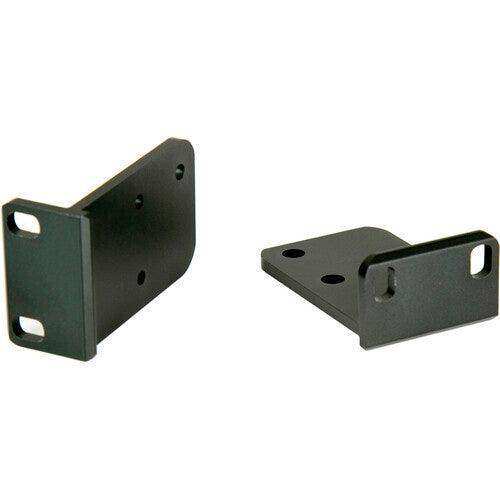

The Allen & Heath AH-DX012 Recessed Rack Ear Kit provides a pair of precision steel rack ears that allow the DX012 Remote Output Expander to be flush-mounted within standard 19-inch equipment racks, aligning the unit correctly with dLive DM and CDM MixRack profiles. Designed specifically for commercial AV integrators and systems engineers who require a clean, professional rack installation where multiple Allen & Heath dLive components share the same rack bay. The recessed mounting position ensures that the front panel of the DX012 sits at the same depth as adjacent dLive infrastructure, resulting in a tidy, uniform equipment rack suitable for machine rooms, stage racks, and permanent AV installations. This kit is a straightforward but essential accessory for any dLive installation where the DX012 is rackmounted alongside DM or CDM series rack hardware.

Product Description

The DX012 Remote Output Expander is a compact unit, and without recessed rack ears it will protrude further forward in the rack than the dLive DM and CDM series enclosures. The AH-DX012 Recessed Rack Ear Kit corrects this offset with a simple hardware solution: two steel rack ears that are bolted to the DX012 chassis and allow the unit to sit recessed in the rack, matching the depth profile of adjacent dLive hardware.

This is a practical requirement in permanent commercial AV installations where equipment racks are built to a specific depth standard and where mismatched front panel depths create cable management issues, aesthetic problems, or access difficulties. The steel construction provides robust rack attachment with no flex or movement once installed. No modification to the DX012 is required — the ears mount via the existing screw points on the unit's chassis.

For integrators building out dLive systems in machine rooms, stage racks, or AV equipment closets, the recessed rack ear kit removes the guesswork from achieving a flush installation and ensures the DX012 aligns correctly with the rest of the dLive rack system. It is a low-cost accessory with a direct impact on the quality and professionalism of the finished installation.

Key Features

• Recessed Mounting Design — Allows the DX012 to sit flush with dLive DM and CDM series racks for a uniform front panel depth
• Steel Construction — Robust steel rack ears provide secure, vibration-resistant mounting in permanent and touring rack builds
• Sold as a Pair — Includes both left and right rack ears for complete installation
• No DX012 Modification Required — Mounts via existing chassis attachment points; straightforward installation
• Compatible with Standard 19-Inch Racks — Works with all standard EIA rack enclosures
• Designed for dLive System Integration — Specifically engineered to align with dLive DM and CDM rack depth profiles

Typical Applications

• Permanent commercial AV installation racks housing dLive DM or CDM series infrastructure
• Stage rack builds where the DX012 is co-located with other dLive components
• Machine room and AV equipment closet installations requiring consistent rack depth alignment
• Touring rack builds where dLive and DX012 units share a single enclosure
• Corporate AV installations with dLive systems and structured rack layouts

Technical Specifications

Frequently Asked Questions

Is the AH-DX012 Rack Ear Kit compatible with units other than the DX012?

No. This kit is designed specifically for the DX012 Remote Output Expander and its chassis mounting points. It is not compatible with other Allen & Heath expanders or third-party equipment.

Why does the DX012 need recessed rack ears when rack mounting?

The DX012's standard chassis does not include rack ears as standard. When mounted in a rack alongside dLive DM or CDM series units, the DX012 would sit further forward than the surrounding equipment without the recessed ear kit. This kit corrects that depth offset.

Does the rack ear kit come with installation hardware?

Mounting screws and hardware are typically included. Verify contents at time of purchase, and contact Creation Networks if you need additional rack mounting hardware for your installation.

Do I need this kit if I am not rack-mounting the DX012?

No. The recessed rack ear kit is only required if the DX012 is being installed in a 19-inch equipment rack alongside dLive DM or CDM hardware.

Can the DX012 be mounted in a standard rack without this kit?

Yes, the DX012 can be mounted using standard rack ears if available, but it will not align flush with dLive DM and CDM rack units. The AH-DX012 kit is required specifically to achieve the recessed, flush-mounted profile.
