Allen & Heath AH-DT-22-M – Dante Input/Output Interface for Commercial AV

Product Overview

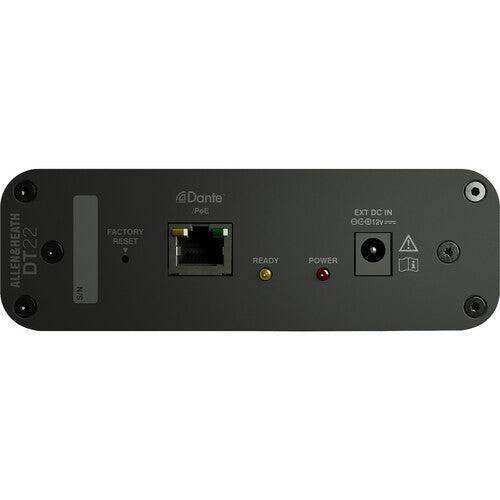

The Allen & Heath AH-DT-22-M is a compact Dante audio interface providing two analog mic/line inputs and two analog line outputs in a rugged aluminum enclosure designed for permanent installation. It operates at 48 or 96 kHz, is AES67 compatible, and is Dante Domain Manager ready, making it suitable for enterprise-grade Dante audio networks in commercial AV, broadcast, and hospitality applications. The unit is powered via PoE (802.3af) from a network switch, eliminating the need for a separate power supply run at the installation point; a 12 VDC power supply is available separately if PoE is not available. Phoenix Euroblock connectors on the analog I/O provide secure, maintenance-friendly terminations for permanent installations.

Product Description

Dante audio networking has become the standard protocol for commercial AV installations requiring flexible, scalable audio distribution over standard IP infrastructure. The AH-DT-22-M provides a cost-effective entry point to the Dante ecosystem while maintaining the signal quality and build standards expected in professional installations.

The DT-22-M is housed in a compact aluminum enclosure measuring 5.1 x 3.9 x 1.7 inches and weighing 0.5 kg. Two included surface-mount ear attachments allow it to be secured beneath tables, behind panels, or inside rack enclosures without a dedicated rack mount kit. An optional rack-mount kit is available for standard 19-inch rack deployment, allowing multiple units to be combined in a single rack space.

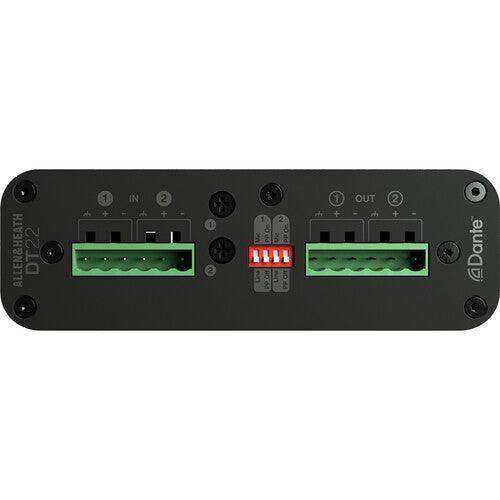

The mic/line inputs use balanced Phoenix Euroblock connectors with individual gain controls (0 to +55 dB), a mic/line switch, and +48V phantom power per channel. A -20 dB PAD is available for line-level sources with hot outputs. Maximum input level is +30 dBu on the line input. These specifications support connection of condenser microphones, dynamic microphones, line-level sources from AV processors, and broadcast audio feeds within the same unit.

The two line outputs are also balanced Phoenix Euroblock with a nominal output of +4 dBu and maximum output of +22 dBu, suitable for driving amplifiers, DSP processors, or local monitor speakers. The output impedance of under 75 ohms ensures compatibility with long cable runs common in commercial installation environments.

AES67 compatibility enables interoperability with non-Dante AES67 devices, broadening the ecosystem of compatible equipment on the same network. Dante Domain Manager readiness means the DT-22-M can participate in enterprise network topologies managed through Audinate's centralized management software, which is increasingly required in corporate, government, and education facilities with strict IT governance policies.

Note: This unit is sold without a power supply. Power must be provided via PoE (802.3af, minimum 15 W from the PoE switch) or a separately purchased 12 VDC, 1.25 A power supply. Confirm your network switch provides adequate PoE budget before deployment.

Key Features

• Dante Audio Networking at 48/96 kHz — Professional audio transport over standard IP infrastructure for scalable AV system design
• AES67 Compatible — Interoperable with AES67 devices for multi-vendor enterprise audio network installations
• Dante Domain Manager Ready — Supports centralized Dante network management for enterprise and government facilities
• 2 Mic/Line Inputs with +48V Phantom — Balanced Phoenix Euroblock inputs with 0–55 dB gain range and phantom power per channel
• 2 Balanced Line Outputs — Phoenix Euroblock outputs at +4 dBu nominal / +22 dBu maximum for driving amplifiers or DSP
• PoE Powered (802.3af) — Eliminates need for separate power supply at the installation point when PoE switch is available
• Rugged Aluminum Enclosure — Compact, durable housing suitable for permanent installation in commercial AV environments
• Surface-Mount Ear Attachments Included — Enables under-table or behind-panel mounting without additional hardware
• Optional Rack-Mount Kit — Rack mounting available via separately sold rack-mount bracket
• Power Supply Not Included — PoE-powered by default; 12 VDC power supply available separately if PoE is unavailable

Typical Applications

• Commercial AV installations distributing audio over Dante IP networks in multi-room facilities
• Enterprise conference rooms requiring microphone inputs at remote locations on a managed Dante network
• Hospitality and corporate campus audio systems with centralized DSP and distributed Dante endpoints
• Houses of worship integrating Dante into existing infrastructure for remote input/output at stage or lectern locations
• Broadcast facilities adding remote analog I/O points to a Dante audio distribution network
• Education facilities managed under Dante Domain Manager for centralized IT governance

Technical Specifications

Frequently Asked Questions

Does the AH-DT-22-M include a power supply?

No. This unit is sold without a power supply. It can be powered via PoE (802.3af) from a compatible network switch providing at least 15 W, or with a separately purchased 12 VDC, 1.25 A power supply.

Is the DT-22-M compatible with all Allen & Heath mixers and AHM processors?

Yes. Any Allen & Heath product with Dante connectivity — including dLive, Avantis, Qu, GLD with Dante option cards, and AHM processors — can communicate with the DT-22-M over a standard Dante network.

Can the DT-22-M be used with non-Allen & Heath Dante equipment?

Yes. The DT-22-M uses standard Audinate Dante protocol and AES67, making it compatible with any Dante-enabled device from any manufacturer on the same network.

What connector type is used for the analog inputs and outputs?

Phoenix Euroblock (pluggable terminal block) connectors are used for all analog I/O. These are a standard in commercial AV installation for their secure, tool-free termination and ease of maintenance.

Is a rack-mount kit available for the DT-22-M?

Yes. An optional rack-mount kit is available separately that allows multiple DT-22-M units to be installed in a standard 19-inch rack.

What is the maximum Dante channel count for the DT-22-M?

The DT-22-M provides 2 Dante transmit channels and 2 Dante receive channels, corresponding to its 2 analog inputs and 2 analog outputs.

Does the DT-22-M support Dante Domain Manager?

Yes. The unit is Dante Domain Manager ready, supporting centralized network management for enterprise deployments where IT governance over audio networks is required.
