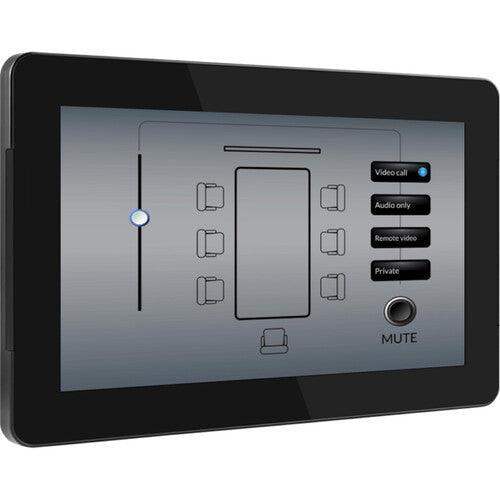

Allen & Heath AH-CC-7 7-inch control touch panel for desktop or wall mount use

Product Overview

The Allen & Heath CC-7 is a 7-inch projected capacitive touch panel engineered for fixed-installation AV control environments. It serves as the primary user interface for AHM matrix processors, dLive, and Avantis systems via the Allen & Heath Custom Control App. Designed for commercial AV touchscreen control panel deployments, the CC-7 supports both desktop and wall-mount configurations using a standard VESA 75x75mm pattern — ideal for boardroom audio control panels, multi-zone audio system control, and corporate lobby AV installations. Power is delivered via PoE or an included 12V DC adapter, eliminating the need for separate power runs in most installations.

Product Description

The CC-7 runs the Allen & Heath Custom Control App, which allows integrators and end users to build fully customized control pages tailored to specific room functions — volume zones, source selection, DSP preset recall, and more. With a 1280x800 native resolution and 500 nits of brightness, the display remains legible in high-ambient-light environments such as conference rooms and building lobbies. A single Gigabit Ethernet connection handles both network communication and power delivery (when connected to a PoE switch), simplifying cable infrastructure in wall-box installations.

The USB-A port accommodates firmware updates and Custom Control project uploads directly on-site without requiring a laptop connected to the network. The CC-7 pairs with the optional CC-STN desktop stand or CC-BRK wall bracket (each sold separately), giving system designers flexibility to position the controller at the point of use. Whether deployed in a training room, executive boardroom, hospitality venue, or multi-room AV system, the CC-7 provides a clean, professional user interface that non-technical staff can operate confidently.

Key Features

• 7" Projected Capacitive Touchscreen — 1280x800 resolution at 500 nits for clear readability in bright commercial spaces
• Power over Ethernet (PoE) — Eliminates dedicated power runs; also supports 12V DC input for flexible deployment
• Allen & Heath Custom Control App — Fully customizable control pages for zones, sources, presets, and DSP parameters
• Gigabit Ethernet Connectivity — Single cable carries both data and power for clean wall-plate installations

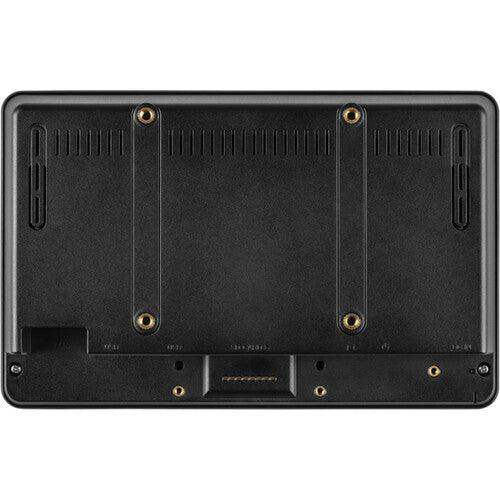

• VESA 75x75mm Mount Pattern — Compatible with standard wall-box and desktop mounting hardware
• USB-A Service Port — Supports on-site firmware updates and Custom Control project uploads
• Compatible with AHM, dLive, and Avantis — Integrates natively with Allen & Heath's commercial and professional audio platforms

Typical Applications

• Boardroom and executive conference room AV control
• Multi-zone commercial audio system control panels
• Corporate lobby and reception area AV interfaces
• Fixed-installation AHM matrix processor user controls
• Hospitality venue zone audio control stations
• University lecture hall and classroom AV control

Technical Specifications

Frequently Asked Questions

What Allen & Heath systems does the CC-7 support?

The CC-7 is compatible with AHM matrix processors, dLive digital mixing systems, and Avantis mixers when running the Allen & Heath Custom Control App.

Does the CC-7 require a separate power supply?

Not if your network switch supports PoE. The CC-7 can be powered directly over the Ethernet connection. A 12V DC adapter is also included as an alternative power source.

Can the control interface be customized for different room types?

Yes. The Custom Control App allows integrators to build bespoke control pages for each room, covering volume zones, source switching, DSP preset recall, and more.

What mounting options are available?

The CC-7 uses a VESA 75x75mm pattern and is compatible with the CC-STN desktop stand and CC-BRK wall mount bracket, both sold separately by Allen & Heath.

Is the CC-7 suitable for non-technical end users?

Yes. Custom Control pages are designed to present only the controls relevant to the room, giving end users a straightforward interface without exposing DSP parameters.

What is the cable requirement for installation?

A single standard CAT5e or CAT6 Ethernet cable is sufficient for both network communication and PoE power delivery.

Can the CC-7 be surface-mounted on a conference table?

Yes, using the optional CC-STN desktop stand. The unit can also be recessed into a wall or surface using the CC-BRK bracket.
