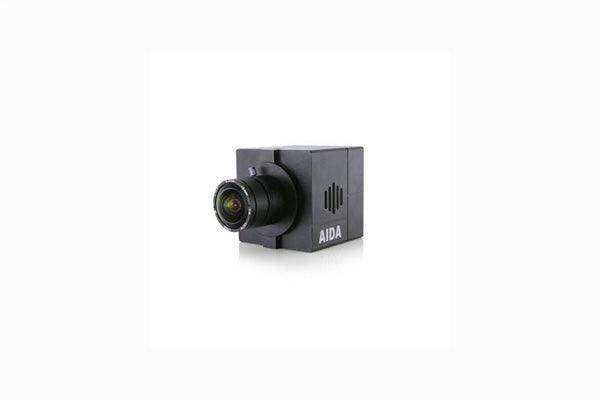

AIDA Imaging UHD6G-200 – UHD 4K/30 6G-SDI EFP/POV Camera

Product Overview

The AIDA Imaging UHD6G-200 is a compact UHD 4K/30 6G-SDI EFP/POV camera built for broadcast studios, live production environments, and any facility running an SDI infrastructure that needs to add 4K acquisition points without a complete system overhaul. Outputting over a single BNC coaxial connection at up to 6G-SDI, it delivers 3840×2160 at up to 30fps with 4:2:2 10-bit YCbCr color, conforming to SMPTE 2081-10. The interchangeable C/CS mount lens system — a UHD 3.2mm lens is included — gives system designers flexibility to adapt field of view for tight stage positions, confidence monitors, or fixed-angle studio shots. RS-485 VISCA control and an OSD button allow camera settings to be managed remotely or adjusted on-site without additional hardware.

Product Description

The UHD6G-200 occupies a specific and practical role in broadcast and live AV production: it brings true 4K acquisition to existing HD-SDI cable plants. A single 6G-SDI BNC output carries the full 3840×2160 signal, eliminating the quad-split wiring required by older 4K-over-SDI approaches. The camera supports HD/3G/6G-SDI output modes, so it operates across legacy HD infrastructure as well, making it a straightforward addition to mixed-resolution SDI switcher environments.

The 1/2.5" progressive CMOS sensor resolves at 3840×2160 with 1.62μm pixel pitch. Supported frame rates span 4K at 30/25/24fps and Full HD at up to 1080p60. Image processing includes WDR, Digital Image Stabilization (DIS), 2D/3D noise reduction, black level compensation, and flicker detection. The camera body measures 56mm × 56mm × 71.9mm and weighs 170g, suitable for tight rigging positions and low-profile ceiling mounts. Power is 12VDC (9–15V range). The C/CS mount accepts the full range of AIDA Imaging C/CS lenses, allowing focal length to be matched to any production geometry.

Key Features

• 6G-SDI Single-Cable 4K Output — Transmits 3840×2160 over a single BNC connection, conforming to SMPTE 2081-10.
• HD/3G/6G-SDI Multi-Rate Output — Backward-compatible with existing HD-SDI and 3G-SDI infrastructure for mixed-resolution environments.
• 1/2.5" Progressive CMOS Sensor — 3840×2160 effective pixels at 1.62μm pitch for clean 4K imagery.
• 4:2:2 YCbCr 10-Bit Color — Broadcast-grade chroma sampling for downstream color correction and multi-camera matching.
• Interchangeable C/CS Mount Lens — Ships with a 3.2mm UHD lens; accepts the full AIDA C/CS lens lineup.
• RS-485 VISCA Camera Control — Remote control of exposure, white balance, and OSD settings via VISCA-compatible controllers.
• Embedded Stereo Audio Input — 3.5mm TRS mic/line input via I/O cable with 16/24/32-bit sampling.
• WDR and Image Stabilization — Addresses uneven lighting and minor camera movement in live environments.
• Compact EFP/POV Form Factor — 56mm × 56mm × 71.9mm body at 170g for tight rigging positions.
• SMPTE-Compliant Standards — Meets SMPTE 292M, SMPTE 424M, and SMPTE 2081-10.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Multi-purpose room
• Government space
• Conference room

Technical Specifications

Frequently Asked Questions

Does the UHD6G-200 work with existing HD-SDI infrastructure?

Yes. The camera supports HD-SDI, 3G-SDI, and 6G-SDI output modes. You can run it at 1080p60 over 3G-SDI today and transition to 6G-SDI 4K when your downstream equipment is upgraded.

What lens is included, and can I use third-party C-mount lenses?

The UHD6G-200 ships with a 3.2mm UHD C/CS-mount lens. It accepts any standard C or CS mount lens. Verify the lens is rated for 4K/UHD image circles to avoid vignetting at full resolution.

How is camera control integrated into a control system?

The camera uses RS-485 VISCA over the I/O cable. Any VISCA-compatible controller (AMX, Crestron, Roland) can address it. Up to seven cameras can typically be daisy-chained on a single RS-485 bus.

Can the UHD6G-200 embed audio into the SDI output?

Yes. The 3.5mm TRS input accepts stereo mic or line-level audio, embedded into the SDI output stream at 16, 24, or 32-bit sample depth.

What is the warranty coverage for this camera?

AIDA Imaging provides a standard manufacturer's warranty. Contact Creation Networks for current warranty terms and extended coverage options.

Is it suitable for permanent installation in a fixed studio position?

Yes. Its compact form factor and wide operating temperature range (15°F–120°F) make it well suited for permanent rigging on camera bars, ceiling mounts, or truss structures.
