AIDA Imaging PTZ4K-NDI-X30B – 4K NDI|HX PTZ Camera 30x Zoom Black

Product Overview

The AIDA Imaging PTZ4K-NDI-X30B is a 4K NDI|HX PTZ camera in a black finish, built for broadcast production, corporate AV, and house of worship installations requiring multi-format simultaneous output with long-reach zoom capability. It outputs 4K60p concurrently over NDI|HX, HDMI 2.0, USB 3.0, and IP, feeding multiple destinations from a single camera head. The 30x optical zoom Sony CMOS sensor is appropriate for large-venue applications where the camera is ceiling- or wall-mounted at significant distance from the subject. VISCA control over RS-232 and IP, paired with PoE+ power delivery, enables clean single-cable installation.

Product Description

The PTZ4K-NDI-X30B is the black-finish variant of AIDA's 4K NDI|HX PTZ camera platform, sharing identical specifications with the PTZ4K-NDI-X30W. The black finish is preferred in auditoriums, broadcast studios, and production environments where a lower visual profile is desired or where the camera is mounted against dark-colored ceilings, walls, or rigging. The camera's simultaneous output capability means it can serve as a production camera, confidence monitor feed, recording source, and streaming camera at the same time without additional hardware.

Integration into NDI workflows is direct — the camera appears on the network as a discoverable NDI source, compatible with vMix, Wirecast, OBS (with NDI plugin), NewTek TriCaster, Vizrt, and all NDI 5-capable production platforms. The Sony CMOS sensor delivers accurate color at a minimum illumination of 0.5 lux. Up to 255 preset positions allow operators to program and recall specific shot compositions instantly, critical in multi-camera broadcast and live-event production.

Key Features

• 4K60p Simultaneous Output — NDI|HX, HDMI 2.0, USB 3.0, and IP all active concurrently for multi-destination workflows.
• 30x Optical Zoom — Range for large-venue installs with camera mounted well away from the primary subject area.
• Sony CMOS Sensor — Low-noise 4K imaging with accurate color and 0.5 lux minimum illumination.
• NDI 5 Compatible — Works natively with all current NDI production software over standard gigabit Ethernet.
• VISCA Control via RS-232 and IP — Integrates with hardware PTZ controllers and commercial AV control processors.
• 255 Preset Positions — Instant, repeatable shot recall for complex multi-shot workflows.
• PoE+ Power (IEEE 802.3at) — Single CAT cable supplies power and data.
• Integrated Tally Light — Clear live-camera status indication for talent and production crew.
• SRT Streaming Support — Secure, low-latency contribution over public internet.
• Black Finish — Suited for broadcast studios and environments where a low-visibility camera profile is required.

Typical Applications

• Boardroom
• Conference room
• House of worship
• All-hands room
• Auditorium
• Broadcast studio
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

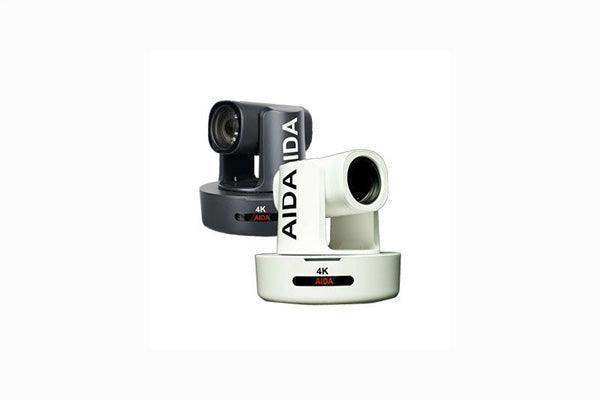

What is the difference between the PTZ4K-NDI-X30B and X30W?

Both models are specification-identical. The X30B is black for broadcast studios and darker environments; the X30W is white for lighter-colored ceiling-mount spaces.

Can all four outputs be active simultaneously?

Yes. NDI|HX, HDMI, USB 3.0, and IP outputs are simultaneously active.

Does this camera support PoE+?

Yes. PoE+ (IEEE 802.3at) is supported. A 12VDC input is also available.

What control systems are compatible?

Crestron, AMX, Q-SYS, Extron, and most commercial AV control processors support VISCA over IP used by this camera.

What NDI version does this camera support?

NDI|HX, NDI 5 capable. Compatible with vMix, Wirecast, OBS with NDI plugin, NewTek TriCaster, and Vizrt.
