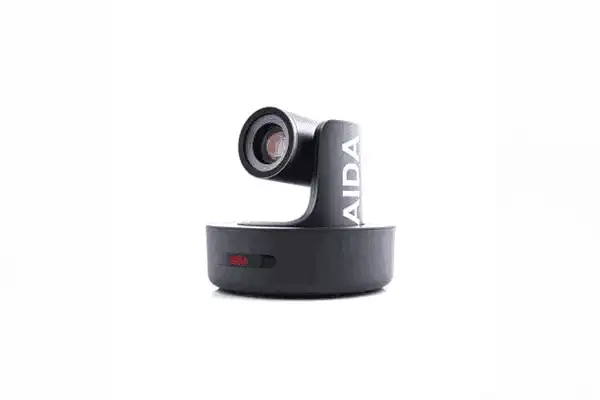

AIDA Imaging PTZ-X12-IP – Full HD IP H.264/H.265 PTZ Camera 12x Zoom

Product Overview

The AIDA Imaging PTZ-X12-IP is a full HD IP PTZ camera with H.264/H.265 streaming, 12x optical zoom, and simultaneous 3G-SDI, HDMI, USB 3.0, and IP (RTSP/RTMP) output, built for broadcast, house of worship, huddle room, and conference room installations requiring IP streaming without NDI infrastructure. The wide-angle 72.5-degree FOV of the 12x zoom module makes it well-suited for smaller rooms and closer camera-to-subject distances. VISCA control over RS-232 and IP integrates with commercial AV control systems, and PoE+ power delivery reduces installation cabling to a single network cable.

Product Description

The PTZ-X12-IP and PTZ-X20-IP share the same camera body, sensor, and output configuration. The 12x module provides a 72.5-degree horizontal field of view at the wide end, covering more of a room from a given mounting position compared to the 20x module's 61-degree FOV — making the X12-IP the preferred choice for smaller spaces, huddle rooms, and moderate-size conference rooms where full-room coverage is more important than telephoto reach.

The IP output uses H.264 or H.265 compression over RTSP and RTMP, providing broad compatibility with streaming platforms, video management systems, and RTSP-capable production software without requiring an NDI license. H.265 halves the bandwidth requirement compared to H.264 at equivalent quality, relevant in multi-camera installations where aggregate network bandwidth must be managed. Direct RTMP streaming to YouTube Live, Facebook Live, and similar platforms is supported without a separate streaming encoder.

Key Features

• H.264 and H.265 IP Streaming — Efficient IP video transport compatible with streaming platforms and video management systems without NDI infrastructure.
• Simultaneous 3G-SDI + HDMI + IP + USB 3.0 Output — All outputs active concurrently for flexible integration across SDI, HDMI, and IP environments.
• 12x Optical Zoom (F1.5–F3.0) with 72.5° FOV — Wide-angle coverage suited for smaller rooms and closer installation distances.
• RTSP and RTMP Protocol Support — Direct compatibility with streaming platforms, media servers, and IP video receivers.
• 1/2.5-Inch Progressive CMOS Sensor — 0.1 lux minimum illumination for low-light environments.
• 128 Preset Positions — Pre-programmed shot recall in live multi-camera productions.
• VISCA Control over RS-232C and IP — Multi-camera RS-232 daisy chain and network IP control for AV control system integration.
• 3.5mm TRS Stereo Audio Input — Embeds line-level audio into IP streams without external audio equipment.
• PoE+ Power (IEEE 802.3at) — Single CAT cable installation reduces cabling and simplifies mounting.

Typical Applications

• House of worship
• Conference room
• Huddle room
• All-hands room
• Multi-purpose room
• Training room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

How does the PTZ-X12-IP compare to the PTZ-X20-IP?

Both share the same platform and output set. The X12-IP has a 12x zoom with a 72.5-degree FOV for smaller rooms; the X20-IP has 20x zoom with a 61-degree FOV and additional telephoto reach for larger spaces.

Is this camera compatible with OBS or vMix?

Yes. The RTSP output can be added as a media source in OBS Studio, vMix, Wirecast, and most production software supporting RTSP streams. For NDI workflows, use the PTZ-NDI-X12.

Can this camera be powered and controlled over a single network cable?

Yes. With PoE+ (IEEE 802.3at), a single CAT5e/CAT6 cable provides power, IP video, and VISCA IP control.

Does the camera have a built-in web interface?

Yes. Navigate to the camera's IP address in a standard browser to configure IP stream settings, network settings, VISCA ID, and image parameters.

What warranty and support options are available?

AIDA Imaging provides a manufacturer's warranty. Creation Networks is an authorized reseller and can assist with pre-sales support and warranty service coordination.
