AIDA Imaging PTZ-NDI-X20 – Full HD NDI|HX2 Broadcast PTZ Camera 20x Zoom

Product Overview

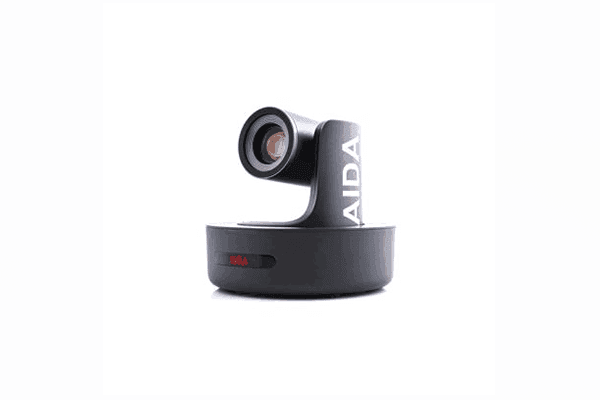

The AIDA Imaging PTZ-NDI-X20 is a full HD NDI|HX2 PTZ camera with 20x optical zoom, built for broadcast production, house of worship, and multi-camera conference deployments requiring simultaneous SDI, HDMI, NDI, and USB output. It outputs 1080p60 concurrently over 3G-SDI, HDMI, NDI|HX2, and USB 3.0, providing flexibility for mixed SDI and IP production environments. The 1/2.85-inch progressive CMOS sensor operates at 0.1 lux minimum illumination and the F1.5 lens aperture supports reliable image quality in low-light spaces. PoE+ power and VISCA over RS-232 and IP simplify installation and integration with commercial AV control systems.

Product Description

The PTZ-NDI-X20 supports simultaneous SDI, HDMI, NDI, and USB outputs that can serve both legacy SDI infrastructures and modern NDI-over-IP environments from the same camera. The 3G-SDI output feeds existing production switchers directly, while NDI|HX2 serves IP-native platforms — both active at the same time without signal splitting hardware.

The 20x optical zoom module (F1.5–F3.0) covers 61 degrees at the wide end for full-room coverage and provides telephoto reach for framing a presenter at stage distance from a rear-of-room or balcony mount. Pan covers 340 degrees at up to 120 degrees per second and tilt covers +90 to -30 degrees, enabling fast shot transitions in live production. The camera stores 128 preset positions for pre-programmed shot recall during live events.

VISCA control over RS-232C (in and out) and RJ-45 IP integrates with Crestron, AMX, Q-SYS, Extron, and hardware PTZ controllers. The 3.5mm TRS stereo audio input embeds line-level audio into NDI and IP streams directly from the camera body. PoE+ (IEEE 802.3at) carries power over the network cable alongside NDI video and IP control, simplifying single-cable installation.

Key Features

• Simultaneous 3G-SDI + HDMI + NDI|HX2 + USB 3.0 — All outputs active at once for mixed SDI and IP production environments.
• 20x Optical Zoom (F1.5–F3.0) — Wide-angle room coverage to tight telephoto framing in large venues.
• 1/2.85-Inch Progressive CMOS at 0.1 Lux — Reliable image quality in low-light worship spaces and event venues.
• NDI|HX2 Protocol — Broadcast-quality HD video over standard gigabit Ethernet, compatible with all NDI-enabled platforms.
• 128 Preset Positions — Instant repeatable shot recall to reduce reliance on dedicated camera operators.
• VISCA over RS-232 and IP — Integrates with hardware controllers and AV control processors.
• 3.5mm TRS Audio Input — Embeds line-level audio into NDI and IP streams from the camera body.
• PoE+ (IEEE 802.3at) — Single CAT cable for power and data.
• Pan 340° / Tilt +90° to -30° — Fast movement speeds: 120°/s pan, 80°/s tilt for live production shot transitions.

Typical Applications

• Broadcast studio
• House of worship
• Conference room
• Auditorium
• All-hands room
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Can the 3G-SDI and NDI outputs be used simultaneously?

Yes. The PTZ-NDI-X20 outputs 3G-SDI, HDMI, NDI|HX2, and USB 3.0 simultaneously, valuable in hybrid SDI and IP production environments.

What is NDI|HX2?

NDI|HX2 is an updated version of the NDI|HX protocol with improved efficiency. It is backward-compatible with NDI|HX systems. Supported by vMix, Wirecast, OBS, TriCaster, and Vizrt.

How many cameras can be controlled on a single RS-232 chain?

Up to 7 cameras via VISCA RS-232 daisy-chain. IP control via RJ-45 allows individual camera addressing over the network without physical daisy-chain wiring.

Is PoE+ required?

PoE+ (IEEE 802.3at) is required for PoE operation. Standard PoE (802.3af) is insufficient. A 12VDC supply is the alternative.

What PTZ controllers work with this camera?

Any VISCA-compatible controller including AIDA's CCU-IP and CCS-USB, and third-party controllers from PTZOptics, DataVideo, and others that output VISCA commands.
