AIDA Imaging PTZ-NDI-X12 – Full HD NDI|HX2 Broadcast PTZ Camera 12x Zoom

Product Overview

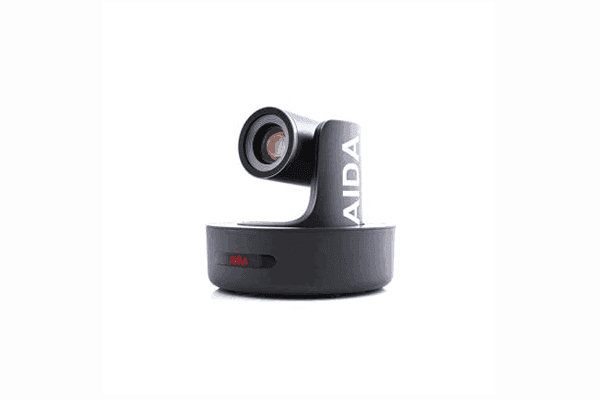

The AIDA Imaging PTZ-NDI-X12 is a full HD NDI|HX2 PTZ camera with 12x optical zoom, designed for broadcast production, house of worship, huddle room, and conference room installations where a wide-angle field of view is preferred over long telephoto reach. It delivers 1080p60 simultaneously over 3G-SDI, HDMI, NDI|HX2 (RJ-45), and USB 3.0, enabling integration into both legacy SDI and modern NDI-over-IP production workflows from a single camera. The 1/2.5-inch progressive CMOS sensor operates at 0.1 lux minimum illumination and the F1.5 lens aperture supports clean imagery in variable lighting conditions. VISCA control over RS-232 and IP plus PoE+ power reduce installation complexity in commercial AV deployments.

Product Description

The PTZ-NDI-X12 and PTZ-NDI-X20 share the same camera platform and output configuration — the primary differentiator is the zoom module: 12x versus 20x. The 12x module provides a wider horizontal field of view (72.5 degrees) at its wide end compared to the 20x's 61-degree FOV, which makes the X12 the better choice for smaller rooms, huddle spaces, and installations where the camera is mounted closer to the subject and wide coverage is prioritized over telephoto reach.

The simultaneous 3G-SDI, HDMI, NDI|HX2, and USB 3.0 output set allows a single camera to feed an SDI production switcher, a local HDMI display, an NDI-based production environment, and a USB-connected computer at the same time. This eliminates the need for signal splitters or external conversion hardware in mixed-infrastructure facilities. The NDI|HX2 stream transmits over standard gigabit Ethernet alongside PoE+ power delivery and VISCA IP control on the same CAT cable, reducing the number of cables required at the camera mounting location to one.

Pan range is 340 degrees at speeds up to 120 degrees per second, and tilt covers +90 to -30 degrees at up to 80 degrees per second. These movement speeds support live production shot transitions without visible lag or jitter. The 128 preset position memory stores specific shot compositions that can be recalled instantly during a live event, reducing the number of dedicated camera operators needed in a multi-camera production workflow.

VISCA control over RS-232C in/out supports daisy-chained multi-camera control configurations. IP control via RJ-45 provides network-addressable control without separate RS-232 wiring, enabling integration with Crestron, AMX, Q-SYS, and other AV control platforms. The 3.5mm TRS stereo audio input embeds line-level audio into NDI and IP streams directly at the camera. SRT protocol support adds internet contribution capability as a secondary streaming path.

Key Features

• Simultaneous 3G-SDI + HDMI + NDI|HX2 + USB 3.0 Output — All four outputs operate concurrently, supporting integration into SDI, HDMI, and IP production environments from one camera head.
• 12x Optical Zoom (F1.5–F3.0) — Wide-angle 72.5-degree FOV at wide end suits smaller rooms and closer-distance installations where full-room coverage is the priority.
• 1/2.5-Inch Progressive CMOS Sensor — 0.1 lux minimum illumination supports clean imaging in low-light rooms common in worship spaces and corporate environments.
• NDI|HX2 Protocol — Network video transport over standard gigabit Ethernet, compatible with all current NDI production software and hardware.
• 128 Preset Positions — Pre-programmed shot recall for multi-camera live production reduces operator staffing requirements.
• VISCA RS-232C In/Out + IP Control — Supports daisy-chain multi-camera control via RS-232 and network-based control via IP for AV control system integration.
• 3.5mm TRS Stereo Audio Input — Embeds line-level audio into NDI and IP streams at the camera, simplifying audio routing in lean installations.
• PoE+ Power (IEEE 802.3at) — Power and data over a single CAT cable reduces cabling complexity at the mounting location.
• Pan 340° at 120°/s / Tilt +90° to -30° at 80°/s — Enables rapid, smooth shot transitions required in live broadcast and event production.
• SRT Protocol Support — Adds internet contribution streaming capability for hybrid or remote production workflows.

Typical Applications

• Broadcast studio
• House of worship
• Conference room
• Huddle room
• All-hands room
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

How does the PTZ-NDI-X12 differ from the PTZ-NDI-X20?

The X12 and X20 are the same camera platform with different zoom modules. The X12 has a 12x zoom with a 72.5-degree wide-end FOV, making it better suited for smaller rooms and closer camera-to-subject distances. The X20 has a 20x zoom with a 61-degree FOV and additional telephoto reach, preferred for larger rooms and longer mounting distances.

Does the PTZ-NDI-X12 output SDI and NDI at the same time?

Yes. All four outputs — 3G-SDI, HDMI, NDI|HX2, and USB 3.0 — are simultaneously active.

Can this camera be controlled over a standard IP network without RS-232 wiring?

Yes. VISCA over IP via the RJ-45 port allows full camera control over the same network connection used for NDI video.

Is PoE+ (IEEE 802.3at) required, or will standard PoE work?

PoE+ (IEEE 802.3at) is required. Standard PoE (IEEE 802.3af) does not supply sufficient wattage. A 12VDC power supply (9–15VDC) can be used as an alternative.

What warranty does AIDA Imaging offer on this product?

AIDA Imaging provides a manufacturer's warranty. Contact Creation Networks for current warranty terms and to initiate a warranty service request.
