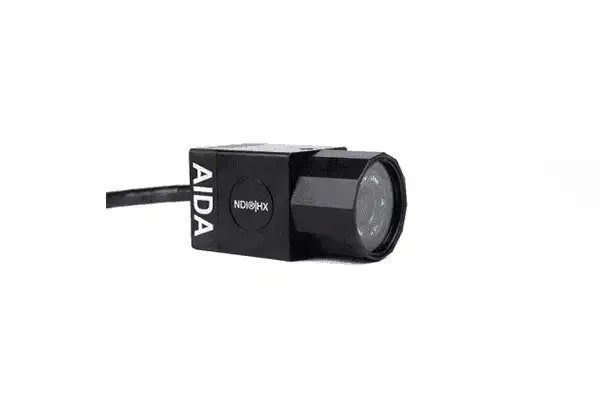

AIDA Imaging HD-NDI-IP67 – IP67 Weatherproof FHD NDI|HX POV Camera

Product Overview

The AIDA Imaging HD-NDI-IP67 is a full HD NDI|HX POV camera rated IP67 for dust and moisture protection, purpose-built for outdoor installations and challenging indoor environments where standard cameras are not appropriate. Delivering 1080p60 video over NDI|HX, SRT, RTMP, and RTSP simultaneously, the HD-NDI-IP67 brings multi-protocol IP streaming to outdoor production, sports venues, houses of worship with exterior coverage needs, and any fixed installation where weather exposure is a factor. A 10-foot weatherproof breakout cable protects the I/O connections from the elements, and a PoE+ adapter is included for single-cable power and network delivery.

Product Description

The HD-NDI-IP67 addresses the need for an NDI-native camera that can be installed outdoors without requiring additional protective housing. IP67 certification means the camera is fully protected against dust ingress and can withstand submersion up to 1 meter for up to 30 minutes. The NDI|HX license is pre-loaded, so the camera is ready to appear on the network as an NDI source without activation steps. Alongside NDI|HX, simultaneous SRT, RTSP, and RTMP streaming gives production teams the flexibility to route the signal to NDI-based software, SRT encoders, or streaming platforms at the same time. The 10-foot weatherproof breakout cable brings RJ45, 12VDC, and USB connections away from the camera body to a more protected location. The PoE+ adapter enables single-cable installation.

Key Features

• IP67 Weatherproof Rating — Fully sealed against dust and rated for submersion up to 1 meter for 30 minutes, enabling permanent outdoor mounting without supplemental housing.
• NDI|HX + SRT + RTMP + RTSP Simultaneous Streaming — Four concurrent streaming protocols serve NDI production networks, SRT encoders, and streaming platforms simultaneously.
• Pre-Loaded NDI|HX License — Ready for NDI network discovery immediately upon connection, no separate activation required.

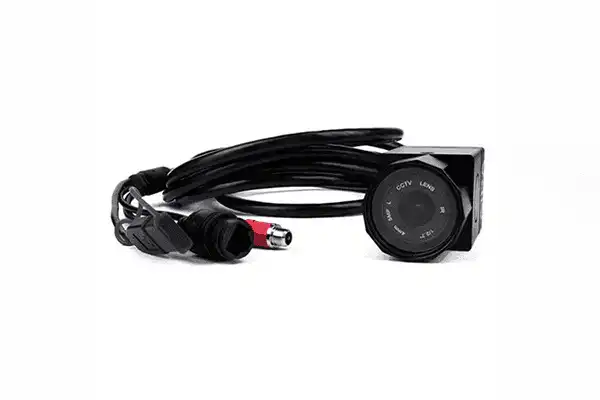

• 10ft Weatherproof Breakout Cable — Protects I/O connections from weather exposure, relocating sensitive connectors away from the camera body.
• PoE+ Adapter Included — Single Ethernet cable delivers power, video, and control for outdoor installations.
• C/CS Mount Lens Interface — Ships with 4mm lens; weatherproof front cap allows lens substitution for different focal lengths.
• VISCA over IP Control — Remote camera control from production systems and AV automation platforms.
• Aircraft-Grade Aluminum Enclosure — Hardened construction for demanding installation environments.
• Compact Form Factor — 78 x 41 x 41mm for discreet exterior mounting.

Typical Applications

• Outdoor broadcast production
• Sports venues
• House of worship (exterior)
• Live entertainment / stage
• Permanent exterior installation
• Government facilities

Technical Specifications

Frequently Asked Questions

What does IP67 mean for this camera's outdoor suitability?

IP67 means the camera is fully dust-tight and can withstand submersion in water up to 1 meter for up to 30 minutes. Appropriate for permanent exterior mounting exposed to rain and moisture without additional protective housing.

Does the HD-NDI-IP67 require a separate NDI license?

No. The NDI|HX license is pre-installed at the factory.

Can NDI|HX and SRT be used simultaneously?

Yes. The HD-NDI-IP67 supports simultaneous NDI|HX, SRT, RTMP, and RTSP streaming, routing the signal to different destinations at the same time.

What is the purpose of the weatherproof breakout cable?

The 10-foot weatherproof cable moves the RJ45, 12VDC, and USB service connections away from the camera body to a more protected location, preventing moisture ingress at connector interfaces.

Is PoE+ required, or will standard PoE work?

A PoE+ adapter is included with the camera. Verify your network switch's PoE budget per port if powering directly from the switch.

Can the 4mm lens be replaced?

Yes. The weatherproof front cap can be removed to access the C/CS mount lens interface for lens substitution.
