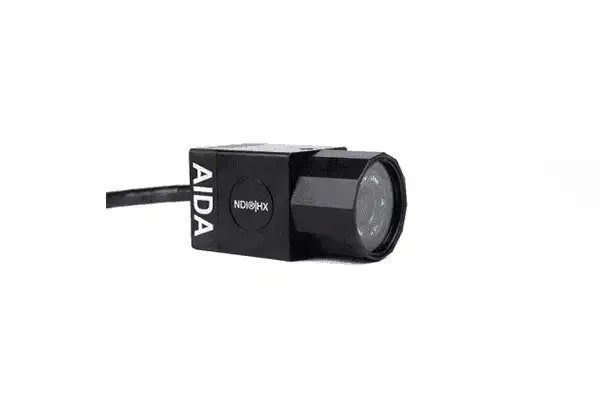

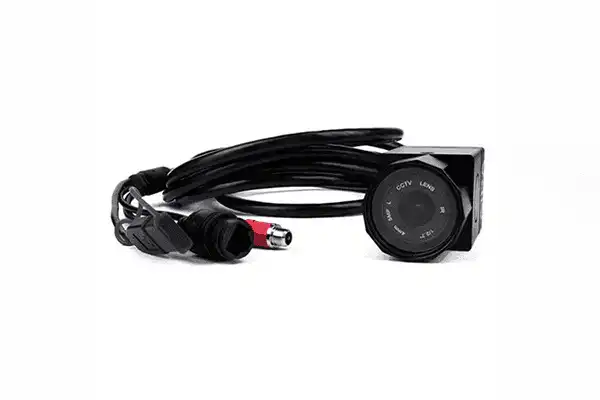

AIDA Imaging HD-NDI-IP67 NDI®|HX Compatible FHD POV Camera

AIDA Imaging SKU: HD-NDI-IP67
No reviews

Price:
Sale price$395.00

Description

AIDA Imaging IP67 NDI®|HX Compatible FHD POV Camera

The HD-NDI-IP67 is the harmonious blend of NDI|HX and outdoor streaming. Its IP67 rating keeps the camera dust and moisture free, with the ability to submerge the camera up to 1m for 30 minutes. Enjoy NDI|HX with AIDA’s renown form factor, whether it be indoors or outdoors.

Main Features

  • Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video
  • Accessible Web UI to stream directly to social media platforms and control image parameters over IP
  • Versatile design with top and bottom tripod mounts for uniques shot creation
  • CS mount lens allows for extra clarity over other types of lenses
  • Weatherproof rating allows for extra protection against enviromental elements
  • Small form-factor and rugged designed makes all video streaming applications possible
  • Perfectly suited for outdoor shots any new or existing NDI®|HX setup.

SPECIFICATIONS

VIDEO

Image Sensor: 1/3” Progressive CMOS

Sensor Size: 5.346mm x 3.003mm (16.9)

Effective Pixels: Horizontal: 1920, Vertical: 1080

Pixel Size: 2.75 μm (H) x 2.75 μm (V)

Resolution: 1080p, 1080i, 720p

Resolution Rate:

  • 1080 60p/59.94/50p/30p/29.97p/25p/24p
  • 1080 60i/59.94i/50i
  • 720 60p/59.94p/50p

Output IP: (NDI|HX/SRT/RTMP/RTSP)

Color Space: 4:2:2 (YCbCr) 10bit

Min Illumination: 0.2Lux (day), 0.1Lux (Night)

White Balance: Auto & Manual (9000 - 11,000 K)

LENS
Lens: C/CS Mount (Default 4mm HD Lens with CAP)

STANDARD

IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

PHYSICAL

Camera Control: Protocol: VISCA Over IP

Operation Temp: 32°F - 104°F

Dimension: 78mm x 41mm x 41mm / 3.07” x 1.61” x 1.61” (with default WP cap)

Weight: 454g / 1 lb (with default WP cap)

Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
