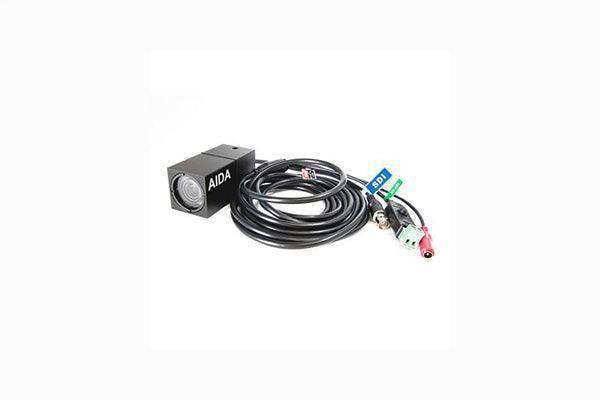

AIDA Imaging HD-X3L-IP67 – IP67 Weatherproof FHD 3G-SDI 3.5X Zoom POV Camera

Product Overview

The AIDA Imaging HD-X3L-IP67 is a Full HD 1080p60 3G-SDI POV camera with IP67-rated weatherproof protection and a built-in 3.5x optical zoom lens, designed for outdoor, all-weather, and high-moisture production and installation environments where standard POV cameras would fail. IP67 certification provides complete dust ingress protection and resistance to water submersion up to 1 meter for 30 minutes. The 3G-SDI output integrates directly into existing broadcast-grade SDI infrastructure, and the compact 48mm × 48mm body allows consistent mounting hardware across mixed indoor/outdoor camera deployments.

Product Description

Most POV cameras in the commercial AV and broadcast category are rated for indoor use only. The HD-X3L-IP67 is the only AIDA Imaging camera rated for outdoor and wet-environment operation. IP67 guarantees complete dust protection and the ability to withstand submersion in up to 1 meter of water for up to 30 minutes — covering rain exposure during outdoor events, spray from water effects in live entertainment, jet wash cleaning, and incidental submersion in OB vehicle deployments.

The 3G-SDI output conforms to SMPTE 292M and SMPTE 424M, compatible with any broadcast-grade SDI router, switcher, or distribution system. The built-in 3.5x optical zoom lens covers 3.85mm/78° at wide to 13.4mm/25° at telephoto, giving operators compositional flexibility for fixed outdoor camera positions. Image processing includes WDR for high-contrast outdoor lighting, Digital Image Stabilization for wind-induced vibration, 2D/3D noise reduction, black level compensation, and flicker detection.

Key Features

• IP67 Weatherproof Rating — Dust-tight and submersion-resistant to 1 meter for 30 minutes, enabling deployment in outdoor and wet environments without an additional enclosure.
• 3G-SDI Output (SMPTE 292M / 424M) — Integrates directly into broadcast-grade SDI production infrastructure.
• Full HD 1080p60 — Broadcast-standard Full HD at up to 60fps with 4:2:2 YCbCr 10-bit color.
• Built-In 3.5x Optical Zoom (3.85–13.4mm, 78°–25°) — Wide-to-telephoto coverage in a single fixed-mount camera position.
• WDR for High-Contrast Outdoor Lighting — Addresses challenging lighting contrast in outdoor day/night and stadium environments.
• RS-485 OSD Camera Control — On-camera configuration via OSD button with RS-485 remote VISCA control via I/O cable.
• Compact 48mm × 48mm Body — Matches the form factor of indoor AIDA Imaging POV cameras for shared mounting hardware.
• Digital Image Stabilization — Reduces visual impact of wind-induced vibration in outdoor fixed-mount and OB vehicle positions.

Typical Applications

• Outdoor broadcast production
• OB vehicle camera positions
• Sports venues
• Live entertainment / stage
• Broadcast studio
• House of worship

Technical Specifications

Frequently Asked Questions

What does IP67 certification mean in a production context?

IP67 means the camera is completely sealed against dust ingress and can withstand submersion in up to 1 meter of water for up to 30 minutes. It covers rain exposure, spray from water effects, and jet wash cleaning. It does not certify continuous underwater use or submersion beyond 1 meter.

Does the HD-X3L-IP67 have HDMI output in addition to SDI?

No. It outputs over 3G-SDI (BNC) only. Contact Creation Networks to discuss options if HDMI output is required for an outdoor application.

Is the lens interchangeable?

No. The lens is built-in at 3.5x optical zoom. This design contributes to the camera's weatherproof integrity.

Can the HD-X3L-IP67 be controlled remotely?

Yes, via RS-485 VISCA over the I/O cable. Any VISCA-compatible controller (AMX, Crestron) can address the camera for exposure, white balance, and OSD settings.

What is the operating temperature range for outdoor use?

32°F – 104°F (0°C – 40°C). For extreme temperature environments outside this range, a heated or cooled outdoor enclosure may be required.
