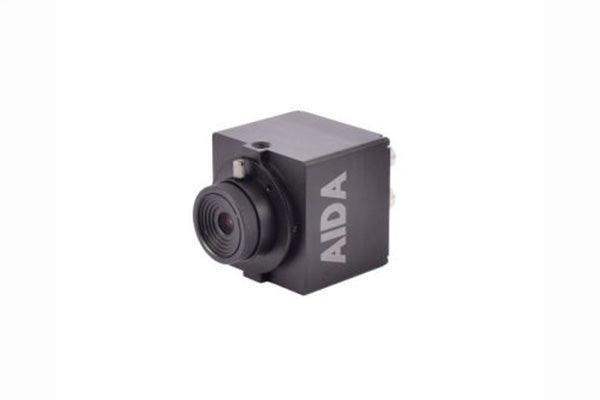

AIDA Imaging GEN3G-200 – Genlock 3G/HD-SDI & HDMI 1080p60 EFP/POV Studio Camera

Product Overview

The AIDA Imaging GEN3G-200 is a Full HD 1080p60 EFP/POV studio camera that outputs simultaneously over 3G/HD-SDI and HDMI, with built-in Tri-Level genlock synchronization for multi-camera broadcast and live production workflows. Designed for AV integrators and broadcast engineers who need a compact, sync-capable camera that integrates into existing SDI and HDMI signal chains, the GEN3G-200 addresses the common challenge of locking multiple camera sources to a common house sync without external sync generators or additional hardware. The interchangeable C/CS mount lens system and RS-485 VISCA control make it adaptable to a wide range of studio configurations. Self-adaptive resolution detection allows the camera to match the output format of the connected downstream equipment automatically.

Product Description

Genlock is a production-critical feature that the GEN3G-200 delivers at a price point well below traditional broadcast studio cameras. When multiple cameras feed a live production switcher — in a corporate broadcast studio, house of worship, or government broadcast facility — all sources must be frame-synchronized to eliminate rolling or tearing during cuts. The GEN3G-200 accepts a Tri-Level sync reference signal and locks its output timing to that reference, ensuring clean transitions in any multi-camera SDI production environment.

Simultaneous 3G/HD-SDI and HDMI output means the same camera can feed an SDI production switcher and a local HDMI confidence monitor or capture card without a signal splitter. The C/CS mount lens interface accepts AIDA Imaging's full lens lineup as well as third-party C and CS mount optics, giving system designers flexibility over field of view. Self-adaptive resolution detection reads the downstream equipment's expected format and automatically selects the appropriate output resolution and frame rate. RS-485 VISCA control integrates with standard camera control systems. Image processing includes WDR, DIS, 2D/3D noise reduction, black level compensation, and flicker detection.

Key Features

• Tri-Level Genlock Synchronization — Accepts an external Tri-Level sync reference to lock camera output timing for clean multi-camera production cuts.
• Simultaneous 3G/HD-SDI and HDMI Output — Feeds an SDI switcher and an HDMI monitor or capture device concurrently without a signal splitter.
• Full HD 1080p60 Resolution — 4:2:2 YCbCr 10-bit color for professional multi-camera productions.
• Self-Adaptive Resolution Detection — Automatically matches output resolution and frame rate to the connected downstream equipment.
• Interchangeable C/CS Mount Lens — Accepts the full AIDA C/CS lens family and third-party optics for flexible field-of-view configuration.
• RS-485 VISCA Camera Control — Remote management of exposure, white balance, and camera settings.
• Embedded Stereo Audio Input — 3.5mm TRS stereo input via I/O cable with 16/24/32-bit sampling embedded into SDI output.
• WDR and Digital Image Stabilization — Addresses uneven lighting and minor positional vibration in live production environments.
• Compact EFP/POV Form Factor — Small body dimensions support installation in camera bars, truss rigs, and low-profile rigging positions.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Multi-purpose room
• Government space
• Conference room
• All-hands room

Technical Specifications

Frequently Asked Questions

What type of sync signal does the GEN3G-200 accept for genlock?

The GEN3G-200 accepts a Tri-Level sync reference signal, the standard HD sync format used in broadcast SDI production environments. A house sync generator or production switcher with a reference output is required.

Can the SDI and HDMI outputs be used simultaneously?

Yes. The 3G/HD-SDI and HDMI outputs operate simultaneously, allowing the camera to feed an SDI production switcher and an HDMI monitor or recording device at the same time.

How does self-adaptive resolution detection work in practice?

When connected to a downstream device, the camera reads the expected input format and automatically configures its output resolution and frame rate to match, reducing manual configuration steps.

What control systems are compatible with the RS-485 VISCA interface?

Any control system supporting Sony VISCA over RS-485 serial is compatible, including AMX, Crestron, Roland, Datavideo, and dedicated VISCA camera controllers. Up to seven cameras can typically be daisy-chained on a single RS-485 bus.

What lens comes included, and what other lenses are compatible?

The GEN3G-200 uses a C/CS mount interface. It accepts the full AIDA Imaging C/CS lens range and any third-party C or CS mount optic rated for HD image circle coverage.
