AIDA Imaging CBL-RJ45 8-Pin RS232 to Cross RJ45 Cable Connector Cable
AIDA Imaging CBL-RJ45 – RS232 Mini-DIN to RJ45 VISCA Cable
Product Overview

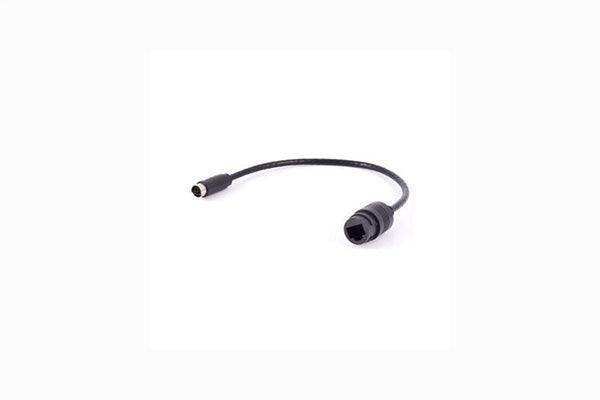

The AIDA Imaging CBL-RJ45 is an RS-232C adapter cable that converts the 8-pin Mini-DIN male connector used on AIDA PTZ cameras to a standard RJ45 connector, enabling Serial VISCA camera control over Cat5/Cat6 cabling. Designed as the direct companion accessory for the AIDA CCS-USB camera controller, the CBL-RJ45 bridges the connector gap between the controller’s RS-232C output and the camera’s RJ45 VISCA input. It can also be used to cascade-link multiple VISCA cameras together in a daisy-chain control topology. The CBL-RJ45 is an essential cabling accessory for any AIDA serial VISCA control deployment.
Product Description
Serial VISCA control over RS-232 remains one of the most widely deployed PTZ camera control methods in professional AV, broadcast, and house of worship installations. However, RS-232C connections on cameras and controllers are frequently terminated with different connector types — Mini-DIN 8-pin on the camera side versus RJ45 on the controller or run cable side. The CBL-RJ45 resolves this mismatch directly, providing a reliable, purpose-wired conversion without requiring custom cable fabrication or gender changer dongles. The wiring is configured specifically for VISCA protocol signal routing, not a generic RS-232 pinout swap.
In a typical deployment, one CBL-RJ45 is connected to the RS-232C port on the camera body, and a second CBL-RJ45 is connected to the RS-232C output of the CCS-USB controller. A standard Cat5e or Cat6 patch cable between the two RJ45 ends completes the VISCA control run. This approach allows control cable runs to be made with inexpensive, readily available Ethernet cabling rather than specialty serial cable. The CBL-RJ45 is one of AIDA’s original accessories and is listed as the recommended companion cable in the CCS-USB specifications.
Key Features
- RS-232C to RJ45 Conversion — Converts 8-pin Mini-DIN male (RS-232C) to RJ45 for VISCA control over Cat5/Cat6 cabling
- VISCA-Wired Pinout — Wiring configured specifically for SONY VISCA protocol signal routing
- CCS-USB Compatible — Listed as the recommended accessory cable for the AIDA CCS-USB camera controller
- Camera-to-Controller Bridge — Connect one CBL-RJ45 at the camera and one at the controller; run standard Cat5e/Cat6 between them
- VISCA Cascade Linking — Supports daisy-chain cascade connection of multiple VISCA cameras on a single control bus
- Simplifies Cabling — Eliminates the need for custom serial cable fabrication; works with standard Ethernet patch cables
- Universal VISCA Compatibility — Works with any VISCA protocol camera using an 8-pin Mini-DIN RS-232C port
Technical Specifications
| Connector A | 8-pin Mini-DIN Male (RS-232C) |
| Connector B | RJ45 |
| Protocol | SONY VISCA (Serial RS-232C) |
| Function | RS-232C Adapter / Protocol Cable |
| Compatible Controller | AIDA CCS-USB (and any RS-232C VISCA controller) |
| Compatible Cameras | All AIDA PTZ cameras with 8-pin Mini-DIN RS-232C port; all VISCA protocol cameras with same connector |
| Use Case | Camera-to-controller VISCA wiring; VISCA camera cascade daisy-chain |
| Run Cable Type | Standard Cat5e / Cat6 Ethernet patch cable (not included) |
