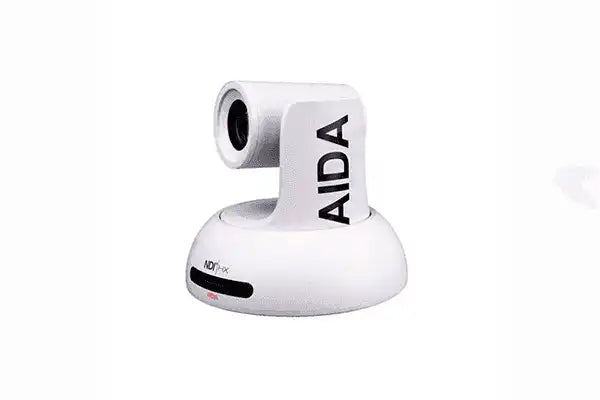

AIDA Imaging Broadcast/Conference NDI®|HX FHD NDI/IP/HDMI 18X Zoom PTZ Camera (White) - PTZ-NDI-X18W

No reviews

Sale price$795.00


Spec Sheet

Make the most of your live-streaming environment with this white Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom from AIDA Imaging, which is capable of simultaneously streaming HDMI, IP, and NDI|HX content with a single device. The camera uses a 1/3" CMOS sensor that captures up to 1080p video at 60 frames per second with vivid colors in different light conditions. RS-232 inputs and outputs support serial, VISCA, and VISCA over IP control, while RTSP and RTMP protocol streaming are supported.

As an entry level PTZ system, the PTZ-NDI-X18 is the ideal choice for new, and existing live streaming productions that require a PTZ. This PTZ comes equipped with a crystal clear 18X optical zoom, allowing for crisp 1080p imaging over HDMI, NDI|HX, and IP protocols simultaneously. Utlitze the PTZ with your standard VISCA, VISCA over IP, or NDI controllers. There is no doubt that the PTZ-NDI-X18 offers the best NDI|HX performance per buck that there is, without compromising on video quality.

10 preset positions can be assigned and managed with the included remote, and 128 preset positions can be managed with serial control. Other settings like pan, tilt, and the 18x optical zoom can also be adjusted with low latency for smooth, silent movement. Motion-compensated noise reduction ensures your image is crisp and without motion blur. A 3.5mm line-in prevents audio/video delay over IP/NDI protocols for improved sync.

  • NDI|HX streaming capable for low latency video streaming and PTZ control over NDI|HX Protocol.
  • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
  • Advanced digital image processor provides vivid and detailed images with full access feature sets.
  • Simultaneous IP and HDMI outputs for versatility and seamless video performance.
  • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
  • Mounting type: Wall Mount
  • Wireless communication technology: Wi-Fi


Sensor Type 1/3"-Type CMOS Sensor
Built-In ND Filter None
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Speed 1/10000 to 1 Second
Precise Scan Rate Control No
Minimum Illumination 0.1 Lux
Focal Length 5.2 to 93mm
Optical Zoom Ratio 18x
Maximum Aperture f/1.5 to 3
Video Capture
External Recording Modes HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/29.97/50/59.94/59.94 fps
1920 x 1080i at 50/59.94/59.94 fps
1280 x 720 at 25/29.97/29.97/50/59.94/59.94 fps
Audio Recording Yes
Broadcast Output NTSC
IP Streaming RTMP, RTSP, UDP
1920 x 1080
1280 x 720
Presets 128 via IP
10 via IR
Move Speed Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec
Movement Range Pan: 340°
Tilt: 120° (-30 to 90°)
Tally Light Yes
Supported Control Protocols NDI

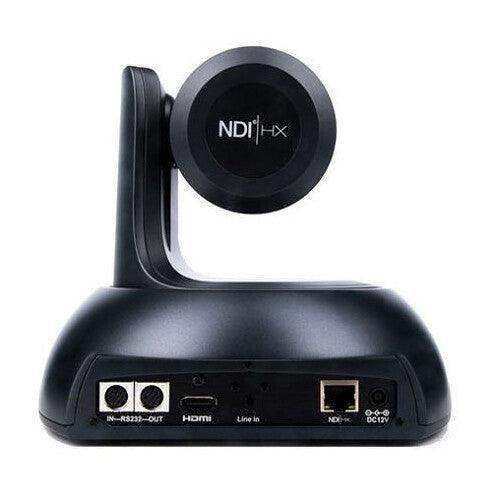

Video I/O 1 x HDMI Output
1 x RJ45 (NDI) Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Input
Other I/O 1 x Mini-DIN 8-Pin (RS-232) Input
1 x Mini-DIN 8-Pin (RS-232) Output
PoE Support PoE+ 802.3at
Power I/O 1 x Barrel (9 to 15 VDC)
Operating Temperature 32 to 104°F / 0 to 40°C
Weight 3.1 lb / 1.4 kg
Packaging Info
Package Weight 7.035 lb
Box Dimensions (LxWxH) 11.7 x 10.8 x 10.4"
