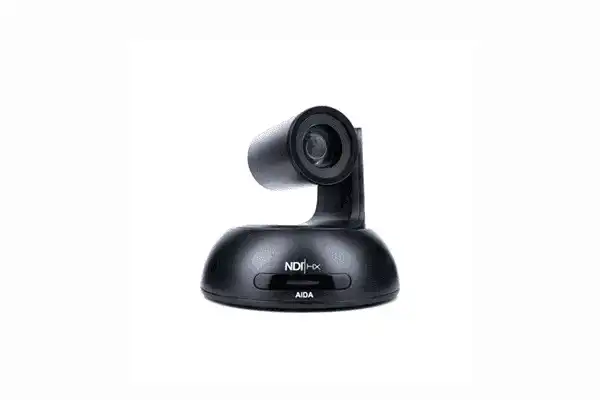

AIDA Imaging PTZ-NDI-X18B – FHD NDI|HX PTZ Camera 18X Zoom (Black)

Product Overview

The AIDA Imaging PTZ-NDI-X18B is a Full HD NDI|HX PTZ camera with 18x optical zoom, designed for conference rooms, broadcast studios, houses of worship, and any AV installation where IP video transport and PTZ control over a single network infrastructure are required. It outputs simultaneously over NDI|HX, HDMI, and IP streaming, covering signal destinations from software-based production platforms to HDMI displays and hardware switchers. Power over Ethernet (PoE+ 802.3at) eliminates the need for a separate power run, simplifying cable management in permanent installations. The camera supports 128 presets over IP control and 10 via IR remote, and includes a front-panel tally light for on-air status indication in multi-camera production environments.

Product Description

NDI|HX has become the de facto IP video transport protocol for software-defined production workflows, and the PTZ-NDI-X18B integrates directly into that ecosystem. When connected to a PoE+ switch, the camera is discoverable on the network and available as a source in NDI-compatible software platforms — including NewTek TriCaster, vMix, OBS (with NDI plugin), and Wirecast — without separate power cabling or a dedicated video cable run to the switcher.

The 18x optical zoom lens (5.2mm–93mm, f/1.5–f/3) provides an approximate 60° wide-angle field of view at the shortest focal length that narrows to a tight telephoto angle at maximum zoom. Pan travel is 340° and tilt covers 120°. The 1/3" CMOS sensor delivers Full HD 1080p60. For IP control, 128 presets can be programmed and recalled; the IR remote provides 10 presets for simpler standalone deployments. A 3.5mm line-level audio input allows audio to be embedded into the IP stream. The tally light on the camera front provides visible on-air indication in multi-camera broadcast and live event production environments.

Key Features

• NDI|HX IP Video Output — Streams Full HD video over the local network for integration with NDI-compatible software production platforms.
• PoE+ 802.3at Power — Powered by a single PoE+ Ethernet connection, eliminating a separate power run.
• 18x Optical Zoom (5.2–93mm, f/1.5–f/3) — Covers wide-angle to telephoto compositions in a single camera.
• Simultaneous NDI|HX + HDMI + IP Output — Feeds NDI platforms, HDMI displays, and IP endpoints concurrently.
• 340° Pan / 120° Tilt — Wide PTZ range for virtually any shot angle in a room.
• 128 Presets (IP) / 10 Presets (IR) — Large preset library for complex multi-shot productions.
• Front-Panel Tally Light — Visible on-air/standby indication for live production workflows.
• 3.5mm Line Audio Input — Embeds line-level audio into the IP stream.
• Black Housing — Suited for broadcast studios and environments where low visual profile is preferred.

Typical Applications

• Conference room
• Boardroom
• House of worship
• Broadcast studio
• Training room
• All-hands room
• Auditorium
• Government space

Technical Specifications

Frequently Asked Questions

What NDI software platforms is the PTZ-NDI-X18B compatible with?

Compatible with NewTek TriCaster, vMix, Wirecast, OBS (with NDI plugin), and any NDI|HX-capable platform. Discoverable on the local network without additional drivers.

Does this camera require a separate power supply?

No. The PTZ-NDI-X18B is powered via PoE+ (802.3at) from any PoE+ capable network switch. Standard PoE (802.3af) does not supply sufficient power for this camera.

How many presets can be stored?

Up to 128 presets via IP-based control. The included IR remote supports 10 presets for simpler stand-alone deployments.

Can this camera be controlled from a Crestron or AMX control system?

Yes, provided the control system can send VISCA over IP commands. Confirm the specific VISCA command set with Creation Networks' technical pre-sales team before finalizing integration design.

What is the difference between the PTZ-NDI-X18B and PTZ-NDI-X18W?

The two models are identical in specifications. The only difference is housing color: black (X18B) or white (X18W). Select based on the installation environment.

What network infrastructure is required for reliable NDI|HX operation?

A managed Gigabit Ethernet switch with PoE+ ports is sufficient for most deployments. Ensure multicast or unicast routing is configured for NDI stream discovery. VLAN isolation for AV traffic is recommended in larger installations.
