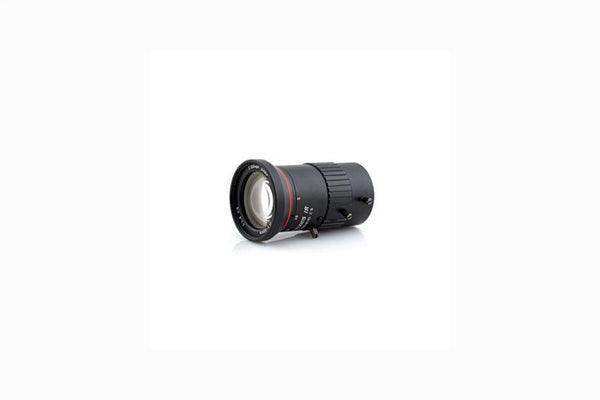

AIDA Imaging CS-0550V – 5-50mm Varifocal CS Mount HD Lens

Product Overview

The AIDA Imaging CS-0550V is a 5mm–50mm varifocal CS-mount lens purpose-built for use with Full HD megapixel cameras. Its wide zoom range allows installers and operators to dial in the exact field of view required — from a broad 5mm wide angle to a tight 50mm telephoto — without swapping optics. The adjustable iris control gives you manual command over depth of field and exposure, making this lens equally useful in controlled studio environments and more demanding fixed-installation scenarios. The CS-0550V pairs directly with AIDA Imaging HD POV cameras that accept CS-mount lenses.

Product Description

Varifocal lenses offer a practical advantage that fixed focal length optics simply cannot match: the ability to frame a shot precisely after the camera is already mounted. With the CS-0550V’s 10:1 zoom ratio spanning 5mm to 50mm, a single lens covers scenarios ranging from wide-room overviews to tight subject isolation. The lens is optically tuned and calibrated to work with Full HD imaging sensors, ensuring edge-to-edge sharpness and minimal chromatic aberration across the focal range. The manual iris ring allows fine-tuned depth-of-field control independent of the camera’s electronic iris settings.

The CS-mount thread standard is one of the most widely adopted in the professional camera industry, and the CS-0550V takes full advantage of that compatibility. It threads directly onto any AIDA Imaging HD POV camera with a CS-mount body without adapters. Whether you need a wide establishing shot at 5mm or a compressed telephoto frame at 50mm, focus and iris are adjusted manually with clearly tactile rings that lock securely once set.

Key Features

• Wide Varifocal Range — 5mm to 50mm focal length; 10:1 zoom ratio for flexible framing without changing lenses
• Adjustable Manual Iris — Independent iris ring for precise depth-of-field and exposure control
• HD-Optimized Optics — Tuned and calibrated specifically for Full HD megapixel image sensors
• CS-Mount Standard — Direct, no-adapter fit on all AIDA Imaging CS-mount HD cameras
• Manual Focus Ring — Tactile focus ring locks firmly once the desired focus distance is set
• Compact Construction — Lightweight lens body suited for fixed-installation and studio camera positions

Technical Specifications
