Adder X200A/R-US – AdderLink X200 USB KVM Audio Receiver

Product Overview

The Adder X200A/R-US is an AdderLink X200 USB KVM remote user station with 44.1kHz digital stereo audio, extending keyboard, video, mouse and audio up to 100m (330ft) over a single CATx cable. As a dual-port KVM receiver over CAT5, it connects to one or two computer access modules so an operator can control a local and a remote computer, or two remote computers, from a single console. It also functions as a remote user station for AdderView CATx KVM switches, making it a flexible USB KVM extender receiver for control positions that need high-fidelity audio alongside real-time keyboard and mouse response.

Product Description

The X200A/R-US is the audio-equipped receiver in Adder's X200 range, designed for desks where the computers live elsewhere. Each receiver carries two RJ45 link ports with an integrated two-port KVM switch, so the user selects between connected sources using keyboard hotkeys or mouse control, with individual brightness and compensation settings stored per connection.

Video is delivered uncompressed over a VGA interface at resolutions up to 1600 x 1200, with 128 steps of signal compensation and brightness correction to fine-tune the picture for the installed cable run. The X200A/R model supports links up to 100m (330ft) with digital stereo audio; the 44.1kHz digital audio path delivers high-fidelity sound to speakers at the user position.

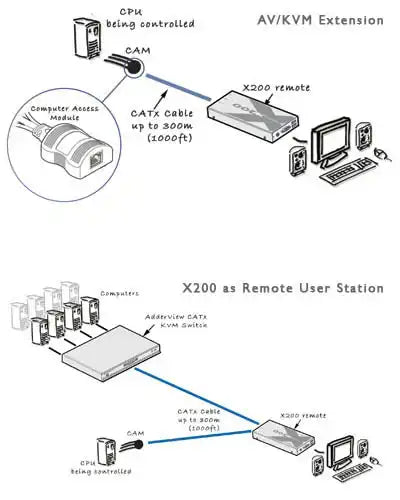

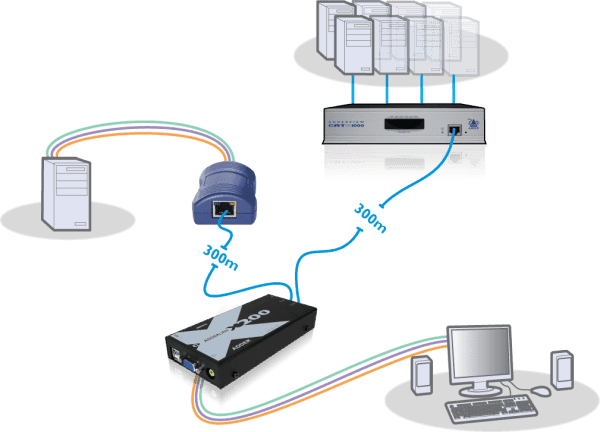

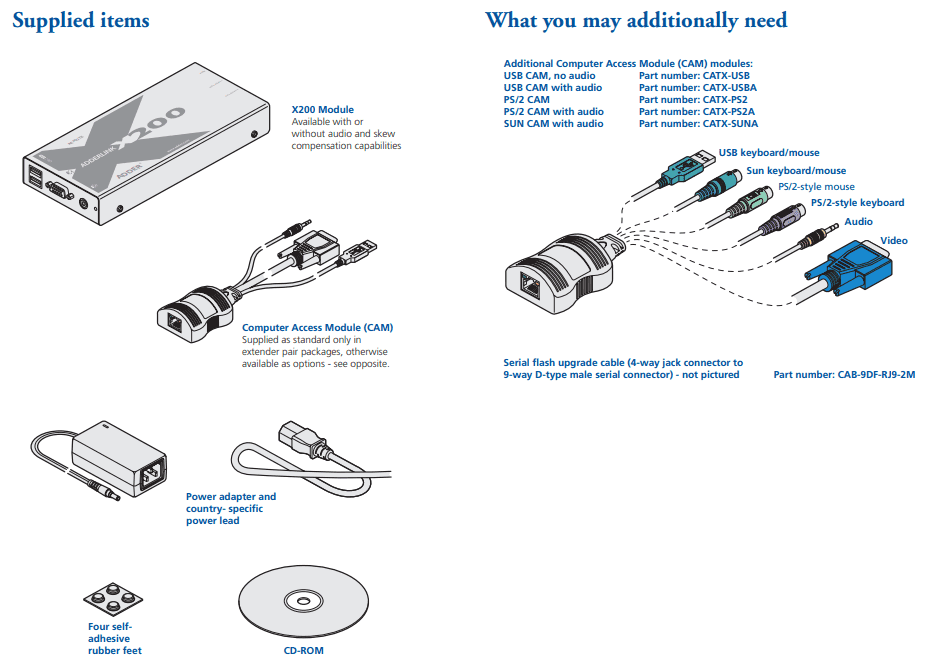

Connection at the computer end is handled by Adder CATx computer access modules (CAMs), available in USB, PS/2 and Sun variants with or without audio, sold separately. Alternatively, the receiver plugs directly into any Adder CATx KVM switch as its remote user station, which makes the X200A/R a common building block in server room and control room console designs. Full DDC emulation ensures high-performance graphics cards run correctly at high resolutions through the link.

Explore compatible CAMs, switches and accessories in the Adder Technology collection at Creation Networks.

Key Features

• 44.1kHz digital stereo audio — Delivers high-fidelity audio to speakers at the remote console alongside KVM signals.
• Two-port integrated KVM switch — Dual RJ45 link ports let one console control a local and a remote computer, or two remote computers, with hotkey or mouse switching.
• High-resolution VGA extension — Supports resolutions up to 1600 x 1200 with real-time, uncompressed video over the CATx link.
• 128-step video compensation — Fine signal compensation plus brightness control per port keeps images crisp at long cable lengths.
• Remote user station for CATx switches — Connects directly to any AdderView CATx KVM switch to serve as its extended console.
• Emulated DDC — Full DDC support enables high-performance video cards to operate at high resolutions through the extension.
• Broad OS compatibility — Works with Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare and more.
• Rugged metal enclosure — All-metal 172 x 26 x 75mm case suits desktop or rack-fascia mounting at the operator position.

Typical Applications

• Government spaces with computers consolidated in secure rooms
• Broadcast studios placing quiet consoles away from rack noise
• Training rooms operating instructor consoles from a central rack
• Commercial meeting spaces requiring extended operator positions
• Multi-purpose rooms switching between two source computers at one desk

Technical Specifications

Frequently Asked Questions

Does the X200A/R-US include the computer-side transmitter?
No. This is the receiver (remote user station) only. Pair it with Adder CATx computer access modules such as the CATX-USBA (USB with audio) or use it as the user station for an AdderView CATx switch.

What is the difference between the X200A/R and the X200AS/R?
The X200A/R supports audio at link lengths up to 100m/330ft. The X200AS/R adds integrated video de-skew and extends the rated distance to 200m/650ft.

Can I control two computers from this one receiver?
Yes. The two RJ45 ports form an integrated two-port KVM switch; select between sources with keyboard hotkeys or mouse control.

Is it compatible with AdderView CATx KVM switches?
Yes. The X200 receiver can serve as the remote user station for any Adder CATx KVM switch.

Does it need drivers or software?
No. Operation is hardware-based and compatible with all known operating systems including Windows, Linux and Mac OS.

Where can I get help specifying CAMs and cabling?
Contact the Creation Networks AV team for system design assistance, compatible accessories and volume pricing.
