Adder X200-USB/P-US – AdderLink X200 USB KVM Extender Kit

Product Overview

The Adder X200-USB/P-US is a complete AdderLink X200 USB KVM extender kit — an X200 receiver, a CATX-USB computer access module, and a US power supply — that places a full keyboard, VGA video, and mouse console up to 200m (650ft) from the computer over a single CATx cable. It is the straightforward buy for integrators who need a USB KVM extender kit over CAT5, a VGA KVM extender with computer access module, or a remote user station for an Adder CATx KVM switch. Real-time keyboard and mouse response and 1600 x 1200 video make it suitable for daily operator use, not just occasional maintenance access.

Product Description

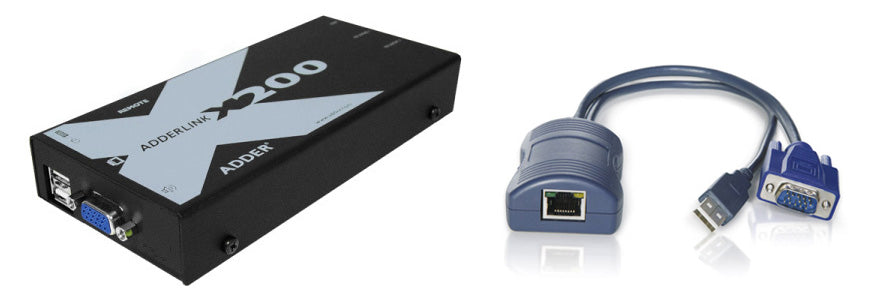

The AdderLink X200 series extends KVM control for up to two computers across CAT5 or higher UTP cable with absolute real-time keyboard and mouse performance. This kit pairs the X200 USB receiver with the compact CATX-USB computer access module (CAM): the CAM plugs into the computer's VGA and USB ports and draws its power from the host, while the receiver sits at the user position with the keyboard, monitor, and mouse.

The receiver applies 128 steps of video signal compensation plus its own brightness correction, sustaining 1600 x 1200 resolution at the full 200m distance with a crisp, bright picture. Full emulated DDC support ensures high-performance graphics cards negotiate high resolutions correctly through the link — a common limitation of basic extenders.

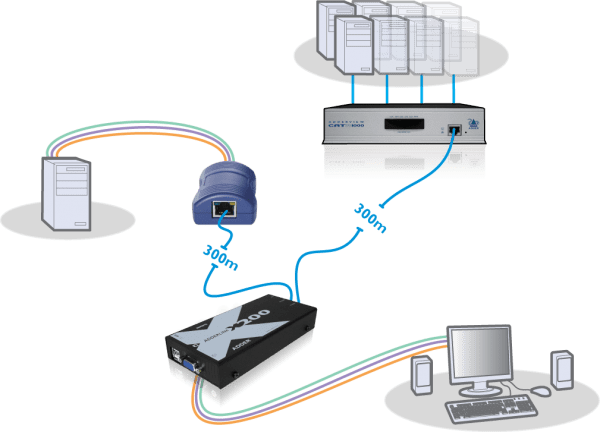

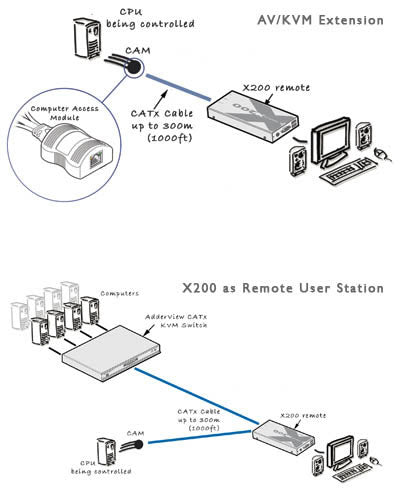

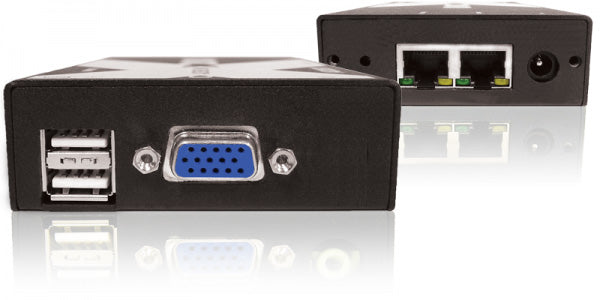

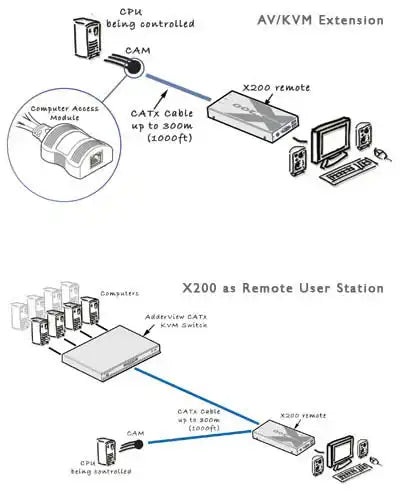

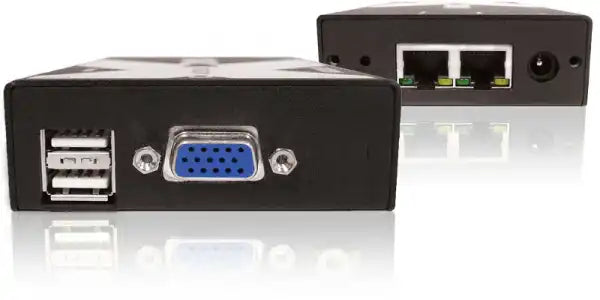

A second RJ45 port on the receiver forms an integrated two-port KVM switch: add another CAM (CATX-USB, CATX-USBA, CATX-PS2, CATX-PS2A, or CATX-SUNA) and one operator controls two computers, switching by keyboard hotkey or mouse with individual video settings retained per port. The receiver also serves as the remote user station for any ADDERView CATx KVM switch, so the same hardware scales from a single extended PC to a switched multi-server room. The all-metal receiver measures 172 x 26 x 75mm and ships with a 100-240VAC power supply and US lead; the plastic-enclosed CAM is powered by the host computer. Expansion modules and rack plates are available in the Adder Technology collection at Creation Networks.

Key Features

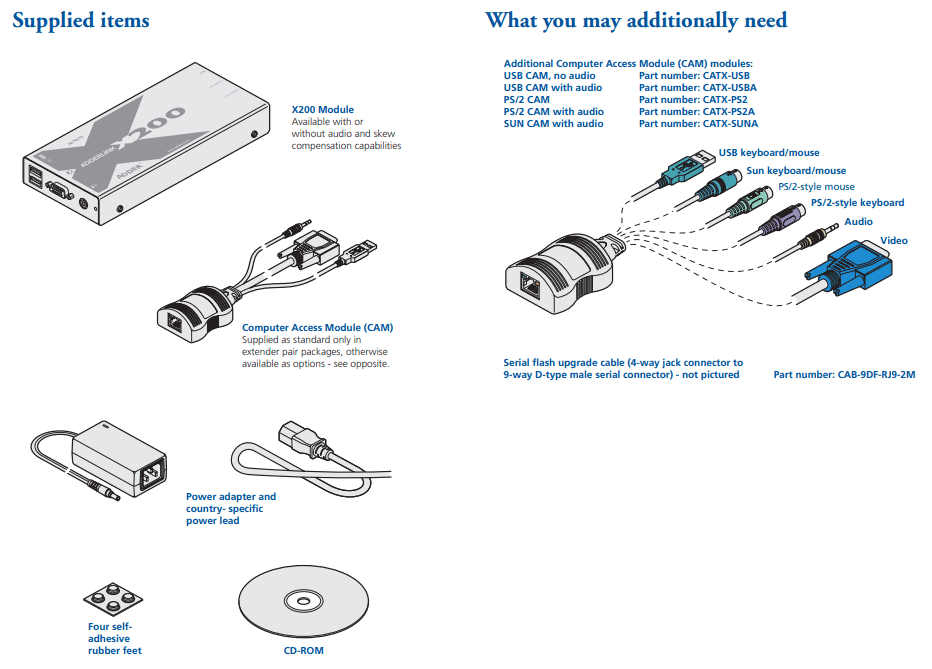

• Complete Kit — Includes the X200 USB receiver, CATX-USB computer access module, and US power supply for a single-box deployment.
• 200m / 650ft Extension — Extends USB keyboard, mouse, and VGA video up to 200 metres over CATx cable (CAT5/5e/6).
• 1600 x 1200 Video — High resolution maintained at the full extension distance with 128-step compensation and brightness control.
• Real-Time USB Control — Absolute real-time keyboard and mouse performance suits full-time operator positions.
• Two-Port Integrated KVM Switch — A second RJ45 port allows control of two computers from one console via hotkeys or mouse switching.
• Emulated DDC — Full DDC support lets high-performance video cards run at high resolution through the link.
• CATx Switch Compatible — The receiver doubles as the remote user station for the ADDERView CATx KVM switch range.
• Self-Powered CAM — The compact computer access module draws power from the host computer's USB port, with no PSU at the rack end.

Typical Applications

• Broadcast studio — quiet operator positions with the workstation racked in the machine room
• Government space — consoles separated from physically secured computers
• Training room — instructor stations driven from a central equipment closet
• Auditorium — controlling presentation and show computers from front-of-house positions

Technical Specifications

Frequently Asked Questions

What is included in the X200-USB/P-US kit?
The kit contains the X200 USB receiver, one CATX-USB computer access module, and the power supply with US mains lead — everything needed to extend one computer.

Does this model carry audio?
No. The base X200-USB/P kit is KVM only. For 44.1kHz stereo audio choose the X200A-USB/P, or the X200AS-USB/P which adds de-skew correction as well.

Can I control a second computer?
Yes. The receiver has two RJ45 ports. Add a second computer access module (CATX-USB, CATX-USBA, CATX-PS2, CATX-PS2A, or CATX-SUNA) and switch between machines with keyboard hotkeys or mouse control.

Will it work as a console for my Adder CATx switch?
Yes. The X200 receiver is designed to act as the remote user station for any ADDERView CATx KVM switch.

Does the computer-end module need its own power supply?
No. The CATX-USB module draws power from the host computer, keeping the rack end tidy. Only the receiver uses the included PSU.

What cable should I install between the units?
A single run of CAT5, CAT5e, or CAT6 UTP up to 200m / 650ft connects the CAM to the receiver.
