Adder X200/R-US – AdderLink X200 USB KVM Receiver

Product Overview

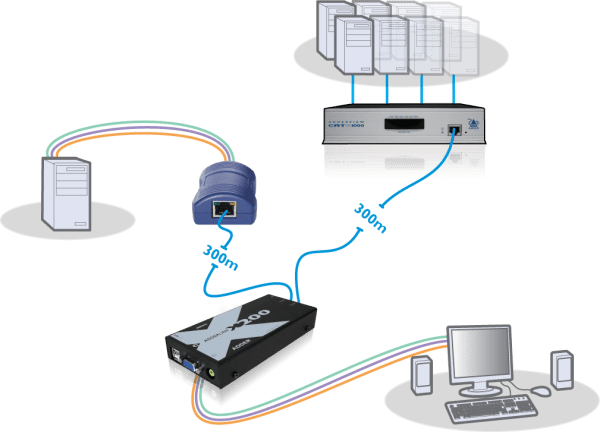

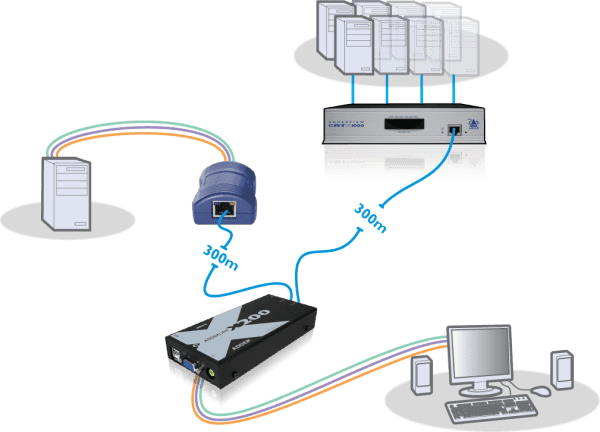

The Adder X200/R-US is an AdderLink X200 USB KVM remote user station that extends a keyboard, VGA display and mouse up to 100m (330ft) from the host over a single CATx cable. As a dual-port USB KVM extender receiver, it accepts links from one or two computer access modules so a single console can control a local and a remote computer, or two remote computers, switched by keyboard hotkeys or mouse. It also operates as the remote user station for AdderView CATx KVM switches, making it a versatile KVM over CAT5 receiver for racked computing environments.

Product Description

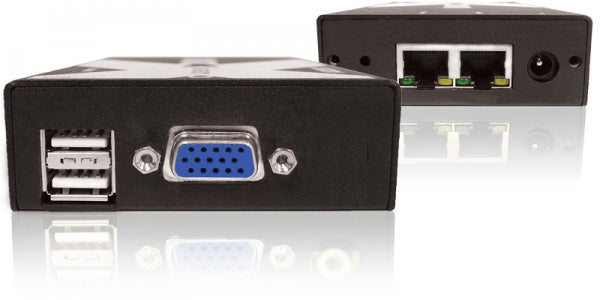

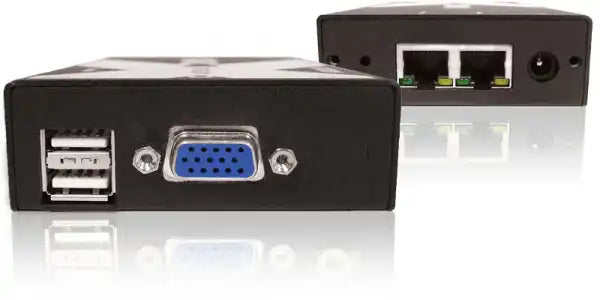

The X200/R-US is the standard (non-audio) receiver in Adder's X200 range, built for operator positions where the computers are racked elsewhere for security, noise or environmental reasons. The console side provides USB Type A keyboard and mouse ports and an HDD-15 VGA output, with absolute real-time keyboard and mouse performance over the link.

Two RJ45 link ports form an integrated two-port KVM switch. Individual video brightness and compensation settings are stored per connection, and the X200's 128 steps of signal compensation allow fine picture adjustment matched to each installed cable run. Video is uncompressed VGA at resolutions up to 1600 x 1200, with full DDC emulation so high-performance graphics cards negotiate correctly through the extension.

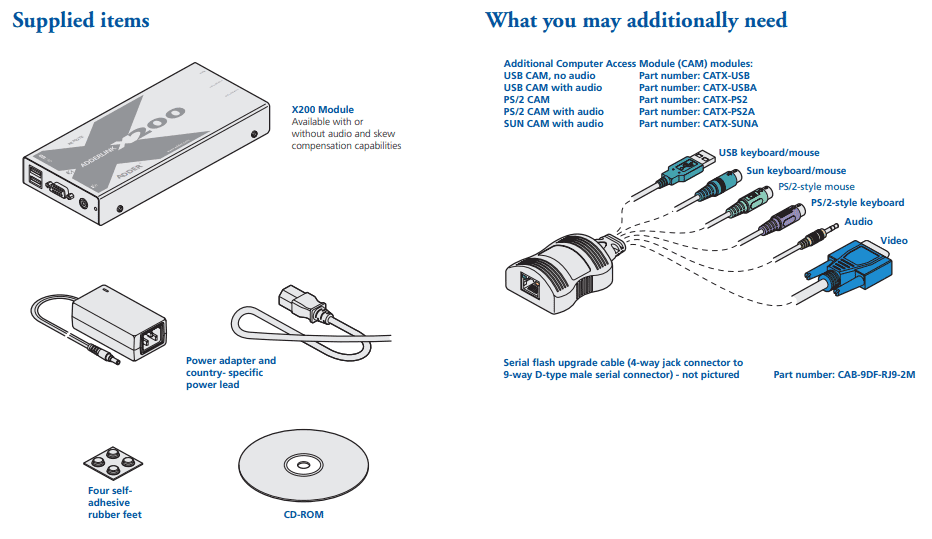

At the computer end, pair the receiver with Adder CATx computer access modules — USB, PS/2 or Sun variants — or connect it directly to any Adder CATx KVM switch as its extended console. The X200/R variant supports link lengths up to 100m (330ft); audio and de-skew variants (X200A/R and X200AS/R) are available where those capabilities are required.

Find compatible CAMs, switches and X200 variants in the Adder Technology collection at Creation Networks.

Key Features

• USB console extension to 330ft — Extends USB keyboard, mouse and VGA video up to 100m (330ft) over a single CATx cable.
• Two-port integrated KVM switch — Dual RJ45 link ports let one console control two computers with hotkey or mouse switching.
• Real-time control — Absolute real-time keyboard and mouse performance with high-definition, high-resolution VGA video.
• 128-step video compensation — Fine signal adjustment plus brightness control stored individually per port.

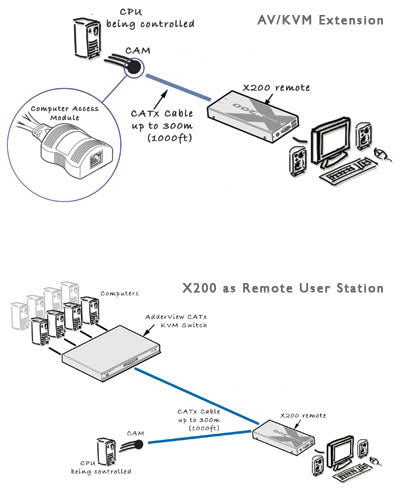

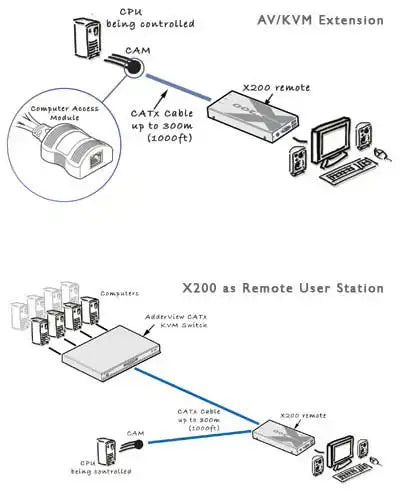

• Remote user station for CATx switches — Connects directly to any AdderView CATx KVM switch as its extended console.
• Emulated DDC — Full DDC support enables high-performance video cards to run at high resolutions through the link.
• Broad OS compatibility — Works with Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare and more.

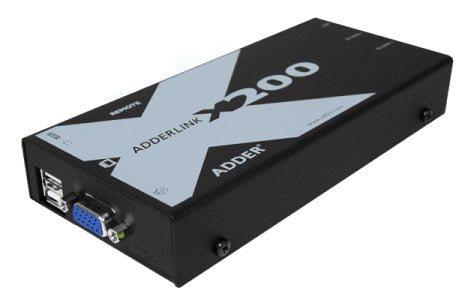

• Compact metal build — All-metal 172 x 26 x 75mm case, 430g, suited to desktop or rack-fascia mounting.

Typical Applications

• Government spaces consolidating computers in secure equipment rooms
• Broadcast studios with operator consoles separated from machine rooms
• Training rooms run from centralized racks
• Commercial meeting spaces with extended operator positions
• Multi-purpose rooms switching one console between two source computers

Technical Specifications

Frequently Asked Questions

Is the transmitter included?
No. The X200/R-US is the receiver only. Pair it with Adder CATx computer access modules (e.g., CATX-USB) or connect it to an AdderView CATx KVM switch.

What is the maximum supported distance?
The X200/R variant is rated by the vendor for links up to 100m/330ft. The X200AS/R variant with de-skew supports up to 200m/650ft.

Does this model carry audio?
No. For 44.1kHz digital stereo audio choose the X200A/R-US; for audio plus de-skew choose the X200AS/R-US.

Can one receiver control two computers?
Yes. The dual RJ45 ports form an integrated two-port KVM switch with hotkey or mouse channel selection.

Are drivers required?
No. The extension is fully hardware-based and operating-system independent.

Can Creation Networks help design a multi-console deployment?
Yes. Our team can specify receivers, CAMs, switches and cabling for control room and rack-extension projects.
