AdderLink X2-Silver/P-US – PS/2 KVM RS232 CATx Extender Pair

Product Overview

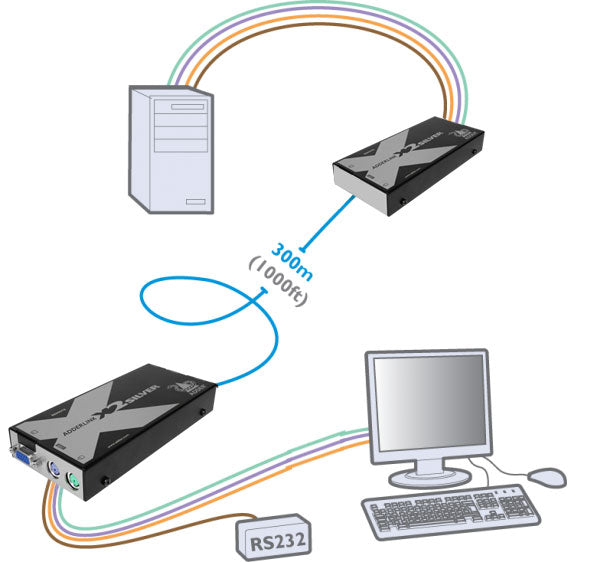

The AdderLink X2-Silver/P-US is a PS/2 KVM and RS232 CATx extender pair that places a keyboard, VGA monitor, mouse, and a transparent high-speed serial connection up to 200m (650ft) from the host computer over a single Category 5 or higher UTP cable. Designed for industrial and legacy infrastructure where PS/2 peripherals and serial touch screens remain in service, this VGA KVM extender over CATx delivers industry-leading video clarity with integrated skew correction. It is a proven long-distance KVM extender with RS232 for installations that must keep mature, mission-critical equipment running. Note: the X2 Series is a long-established legacy-interface product line; confirm availability with us before specifying for new builds.

Product Description

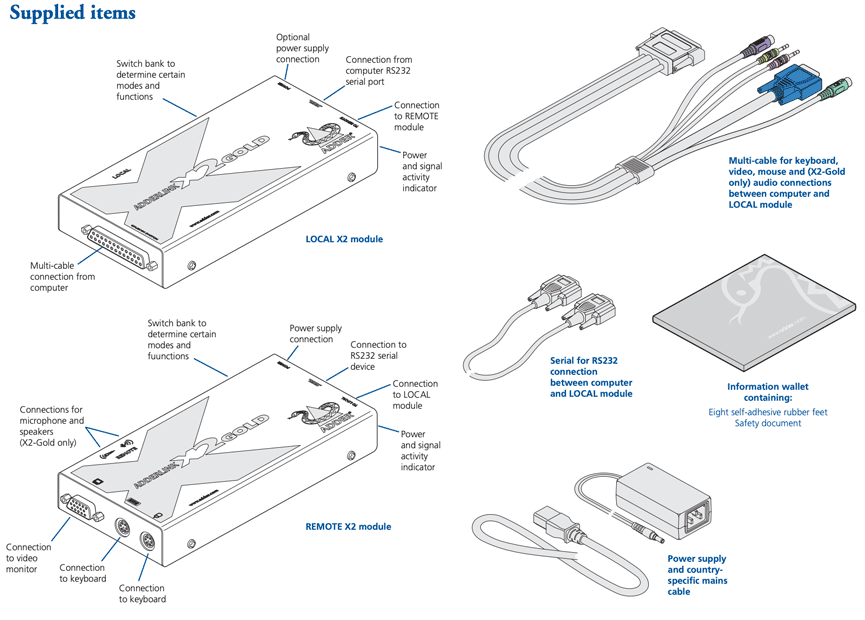

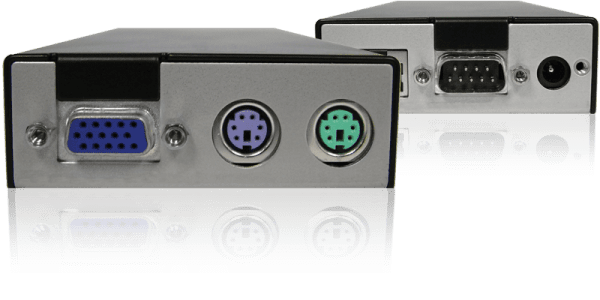

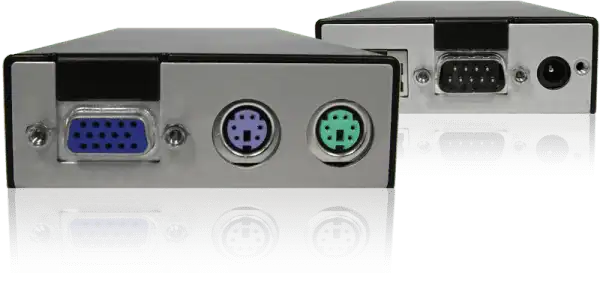

The X2-Silver pair consists of a local transmitter that connects to the computer via the supplied 25-way cable and a remote receiver providing HD-15 VGA, MiniDin6 PS/2 keyboard and mouse, and a DB9 serial port at the user position. A single CATx run between them carries everything, simplifying pathways through plant floors, machine rooms, and risers.

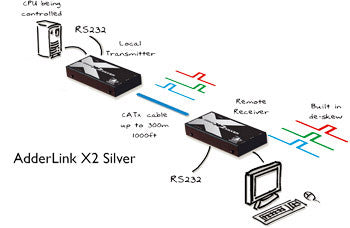

Video performance is a defining strength: resolutions of 1600 x 1200 are achievable at the full 200m (650ft) reach. The X2 applies a high level of signal compensation with a wide range of smooth, fine adjustments, and the Silver model adds integrated DeSkew with 300MHz bandwidth to counteract the color-channel timing skew inherent in twisted-pair cabling — critical for sharp text on long runs.

Full DDC emulation ensures high-performance video cards negotiate their proper resolutions, something many basic extenders cannot do. The transparent RS232 channel supports touch screens and a wide variety of other serial devices without protocol configuration. Both units operate standalone, or up to 16 units mount in a 2U X-Series chassis for high-density installations. The platform is OS-agnostic, supporting Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, macOS, and NetWare. For modern HDMI/USB extension requirements, see the XDIP family and other current extenders in our Adder Technology collection.

Key Features

• 200m / 650ft CATx Extension — Extends PS/2 KVM, VGA video, and serial over a single CAT5/5e/6/7 cable run.
• High-Resolution Video at Distance — 1600 x 1200 achievable at the full 200m reach with extensive signal compensation.
• Integrated DeSkew (300MHz) — Built-in skew correction counteracts twisted-pair timing differences for crisp, converged color.
• Transparent RS232 Channel — High-speed serial pass-through supports touch screens and other serial devices without configuration.
• Full DDC Emulation — Active DDC support enables high-performance graphics cards to run at high resolutions.
• High-Density Rack Option — Up to 16 units mount in a 2U X-Series chassis; units also work standalone.
• Platform Independent — Compatible with all known operating systems; no drivers required.

Typical Applications

• Broadcast studio — keep legacy serial-controlled equipment and PS/2 consoles linked to machine-room hosts.
• Government space — extend consoles for long-lifecycle legacy systems that cannot be replaced.
• Training room — drive remote instructor consoles with serial touch screens from a central equipment room.

Technical Specifications

Frequently Asked Questions

Is the X2-Silver suitable for new installations?
The X2 Series serves legacy PS/2 and VGA infrastructure and remains the right answer where that hardware must stay in service. For new HDMI/USB projects, current Adder extenders such as the XDIP family are recommended. Contact us to confirm current availability before specifying.

What is included in the /P pair?
The X2-SILVER/P-US includes the local transmitter and remote receiver units with US power; the computer connection cable for the local unit is supplied.

Can it drive a serial touch screen?
Yes. The transparent RS232 channel carries serial data alongside KVM without protocol setup, which is why the X2-Silver is widely used with touch screens.

What cable should I run?
Category 5 or higher UTP (CAT5, 5e, 6, or 7). Solid-core structured cabling is typical for long runs.

Does it support USB keyboards or mice?
No. The X2-Silver is a PS/2 extender. For USB peripheral extension over CATx, consider the AdderLink X50 or XDIP products.

How is video quality maintained on long runs?
The receiver provides broad, fine video compensation adjustments and integrated 300MHz DeSkew correction to align color channels, preserving sharpness at distance.
