Adder X100-USB/P-US – AdderLink X100 USB KVM Extender Kit

Product Overview

The Adder X100-USB/P-US is a complete USB KVM extender kit that relocates a USB keyboard, mouse and VGA display up to 100m (330ft) from the host computer over a single CATx cable. The kit pairs an AdderLink X100R receiver with a CATx USB computer access module and a US power supply, making it a practical VGA KVM extension solution for operators who need the workstation in one room and the computer in another. As a KVM extender over CAT5 for control rooms, equipment closets and industrial floors, it delivers uncompressed video with signal compensation so image quality holds up across the full link distance.

Product Description

In many commercial environments the computer does not belong at the desk. Fan noise, heat, physical security and maintenance access all argue for keeping the PC in a rack or secure room while the operator works elsewhere. The X100-USB/P-US solves this with a transmitter-side computer access module that plugs directly into the host's VGA and USB ports and a compact metal receiver at the user position.

The link runs over standard Category 5, 5e, 6 or 7 unshielded twisted pair cable, so installers can use existing structured cabling rather than pulling dedicated video runs. Video resolutions of 1600 x 1200 are achievable at the full 100m distance, with 1900 x 1440 supported up to 50m (165ft). Adjustable signal compensation and brightness correction at the receiver keep the image crisp at long cable lengths.

Full DDC emulation means high-performance video cards negotiate resolutions correctly through the link, and continuous USB keyboard and mouse emulation keeps the host stable even when peripherals are disconnected at the remote end. The system is operating-system independent, working with Windows, Linux, Unix, Mac OS and more. For complementary switches, extenders and accessories, browse the Adder Technology collection at Creation Networks.

Key Features

• Complete USB extension kit — Includes the X100R receiver, CATx USB computer access module and US power supply, so a single SKU covers the full point-to-point link.
• 330ft CATx reach — Extends keyboard, video and mouse up to 100m (330ft) over Category 5, 5e, 6 or 7 cable using existing structured cabling.
• High-resolution VGA video — Supports 1600 x 1200 at the full 100m distance and 1900 x 1440 up to 50m for detailed application displays.
• Video compensation and brightness control — Fine receiver-side adjustments compensate for cable losses to keep images crisp, clear and bright.
• Emulated DDC — Full Display Data Channel support lets high-performance graphics cards run at high resolutions through the extension link.
• Continuous USB emulation — Keyboard and mouse are emulated at the host at all times for maximum availability and clean boot behavior.
• Broad OS compatibility — Works with all known operating systems including Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS and NetWare.

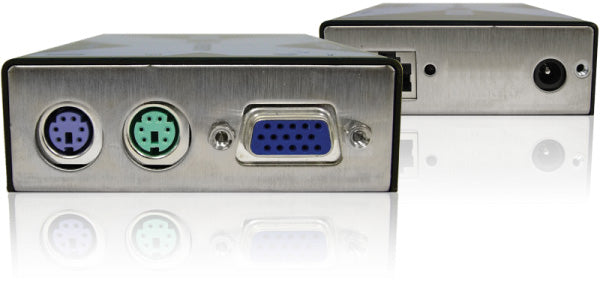

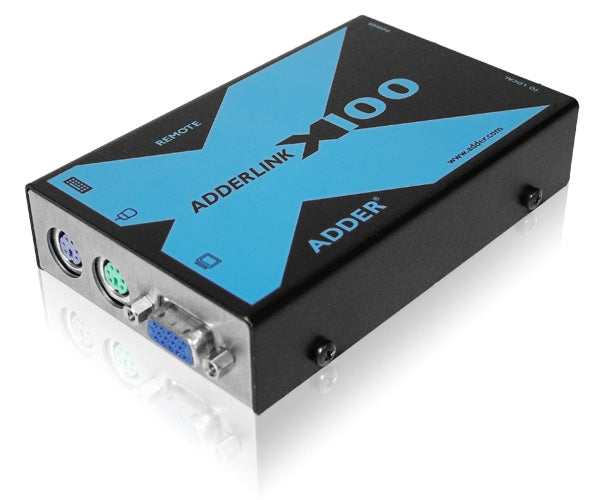

• Compact metal receiver — Rugged all-metal remote unit measures just 123 x 74 x 26mm for easy placement at the operator position.

Typical Applications

• Government spaces where computers must remain in secured equipment rooms
• Broadcast studios separating noisy workstations from on-air environments
• Training rooms driven from a centralized equipment rack
• Commercial meeting spaces with remote source equipment
• Multi-purpose rooms requiring a clean, PC-free presenter position

Technical Specifications

Frequently Asked Questions

Does the X100-USB/P-US require software or drivers?
No. The extender is hardware-based and operating-system independent, so it works with Windows, Linux, Mac OS and other platforms without drivers.

What cable should I run between the transmitter module and the receiver?
A single Category 5, 5e, 6 or 7 twisted pair cable terminated with RJ45 connectors. Existing structured cabling can typically be reused.

Can I extend audio with this kit?
This model carries keyboard, video and mouse only. The X100 family includes audio-capable variants (such as the X100A models) if stereo audio extension is required.

Is the local computer access module powered separately?
The compact CAM draws its power from the host computer's ports; the included PSU powers the receiver at the user position.

Will high resolutions negotiate correctly through the link?
Yes. The X100 fully emulates DDC, so the source graphics card reads display capabilities correctly even over the extended link.

Who do I contact for pre-sales or integration help?
The Creation Networks AV team can assist with system design, compatibility questions and volume pricing for Adder KVM extension deployments.
