Adder X100/R-US – AdderLink X100 PS/2 KVM Receiver

Product Overview

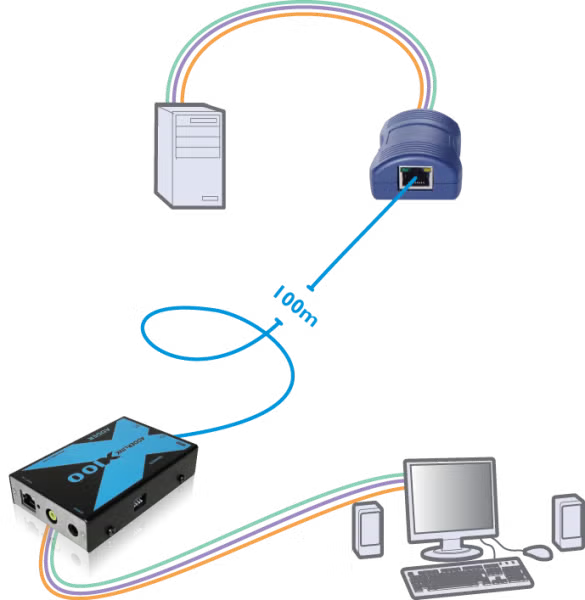

The Adder X100/R-US is an AdderLink X100 PS/2 KVM remote user station that extends a PS/2 keyboard, mouse and VGA display up to 100m (330ft) from the host computer over a single CATx cable. As a PS/2 KVM extender receiver over CAT5, it serves desks and operator positions where the computer is racked in another room for security, acoustics or environment control. It is a dependable VGA KVM extension receiver for legacy consoles that remain in active service across industrial and infrastructure installations.

Product Description

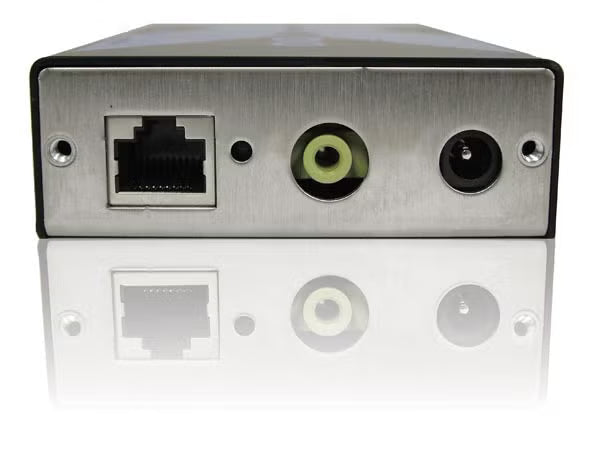

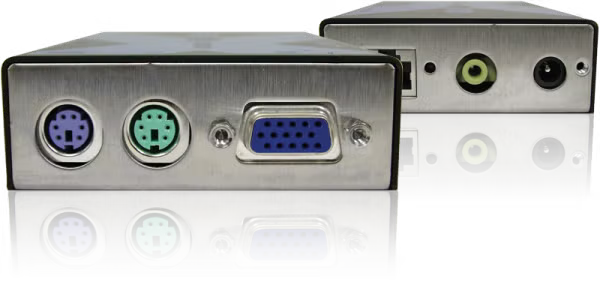

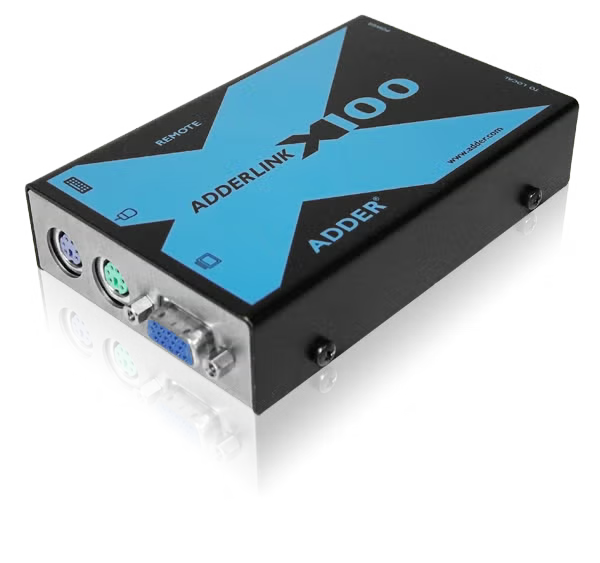

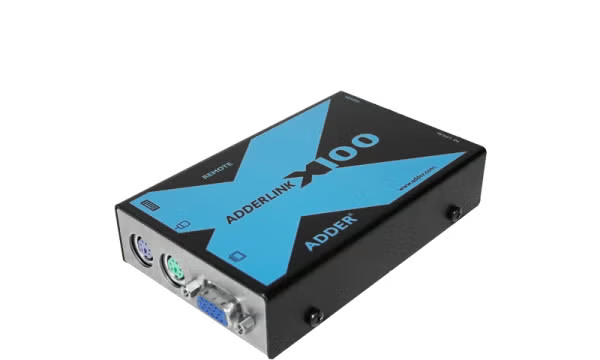

The X100/R-US is the keyboard-video-mouse receiver of the X100 family, presenting MiniDIN-6 (PS/2) keyboard and mouse ports plus an HDD15 VGA output at the user position. The link back to the computer end runs over standard Category 5, 5e, 6 or 7 unshielded twisted pair, so existing structured cabling is typically all that is needed.

Per the vendor specification, the X100 series supports a maximum extension distance of 100m (330ft), with resolutions of 1600 x 1200 achievable at the full distance and 1900 x 1440 up to 50m (165ft). Receiver-side signal compensation provides smooth, fine adjustment for cable losses, and built-in brightness correction keeps the displayed image crisp and bright at long runs.

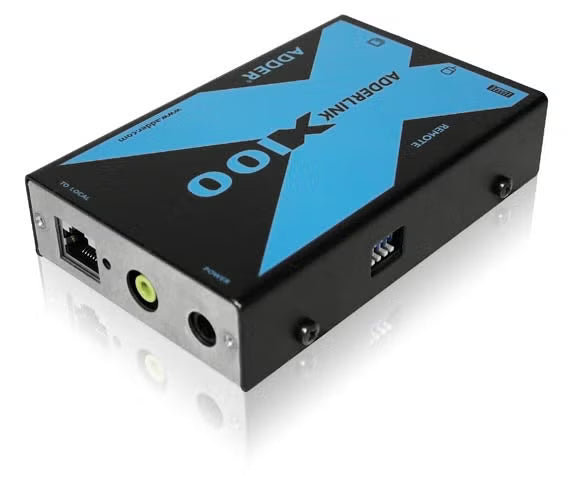

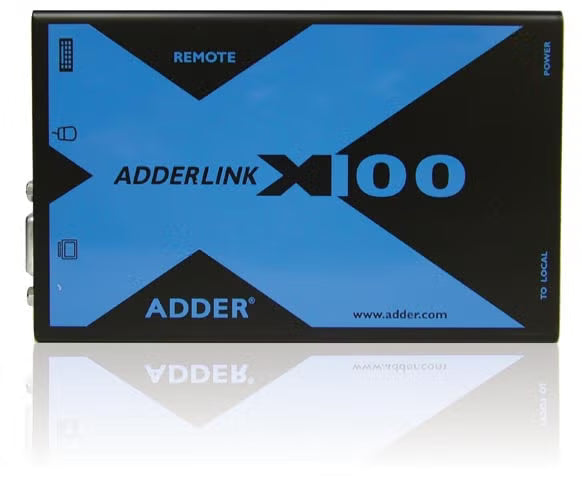

Full DDC emulation allows high-performance graphics cards to operate at high resolutions through the link, and the hardware-based design is independent of operating system — Windows, Linux, Unix, Solaris, Mac OS and others are all supported. The compact all-metal receiver measures 123 x 74 x 26mm and powers from the included universal-input supply with US lead.

Pair the receiver with the appropriate X100 computer access module at the host, or browse the full Adder Technology collection at Creation Networks for switches, extenders and accessories.

Key Features

• PS/2 console extension — Presents MiniDIN-6 keyboard and mouse ports plus VGA output at the remote user position.
• 330ft CATx reach — Vendor-rated extension up to 100m (330ft) over Category 5, 5e, 6 or 7 twisted pair cable.
• High-resolution VGA video — 1600 x 1200 at the full 100m distance and 1900 x 1440 up to 50m.
• Video compensation — Smooth, fine signal adjustment counters cable losses across the run.
• Brightness control — Built-in correction keeps images crisp, clear and bright.
• Emulated DDC — Full DDC support enables high-performance video cards to run at high resolutions through the extension.
• OS independent — Compatible with Windows, DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS and NetWare.
• Compact metal receiver — Rugged 123 x 74 x 26mm all-metal case for desktop or fascia-plate rack mounting.

Typical Applications

• Government spaces with computers secured away from user desks
• Broadcast studios isolating machine noise from production areas
• Training rooms extended from centralized equipment racks
• Commercial meeting spaces with remote source equipment
• Multi-purpose rooms requiring a clean operator position

Technical Specifications

Frequently Asked Questions

What is the actual maximum distance for this receiver?
Per Adder's specification, the X100 series supports links up to 100m (330ft) over CATx cable. Resolutions up to 1600 x 1200 are achievable at that full distance.

Is the host-side module included?
No. This is the receiver only; pair it with an X100 computer access module (PS/2 or USB variants) at the source computer.

Does it carry audio?
No. For digital stereo audio, choose the X100A/R-US audio-equipped receiver.

Will it work with modern operating systems?
Yes. Operation is hardware-based and OS independent, covering Windows, Linux, Unix, Mac OS and more.

Can the receiver be rack mounted?
Yes. Adder offers the X-RMK-FASCIA universal rackmount plate for single-unit X Series extenders.

Does Creation Networks support legacy Adder installations?
Yes. Our consultants can source spares for existing X Series systems or plan migrations to current Adder extension platforms.
