Adder X-USBPRO-US – USB VGA KVMA CATx Extender, 300m

Product Overview

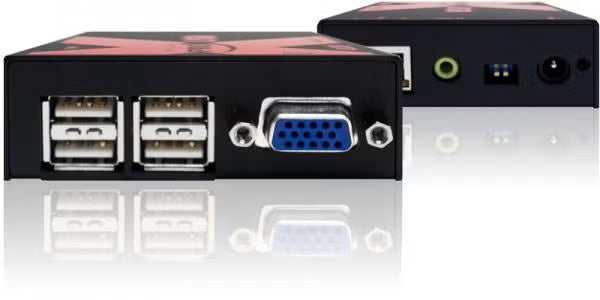

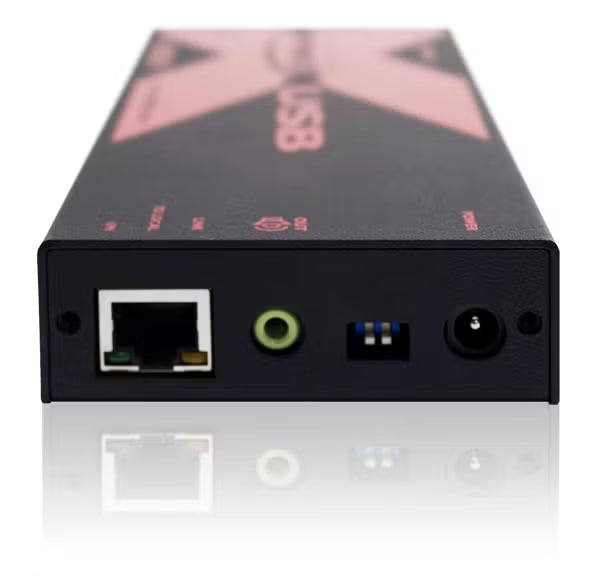

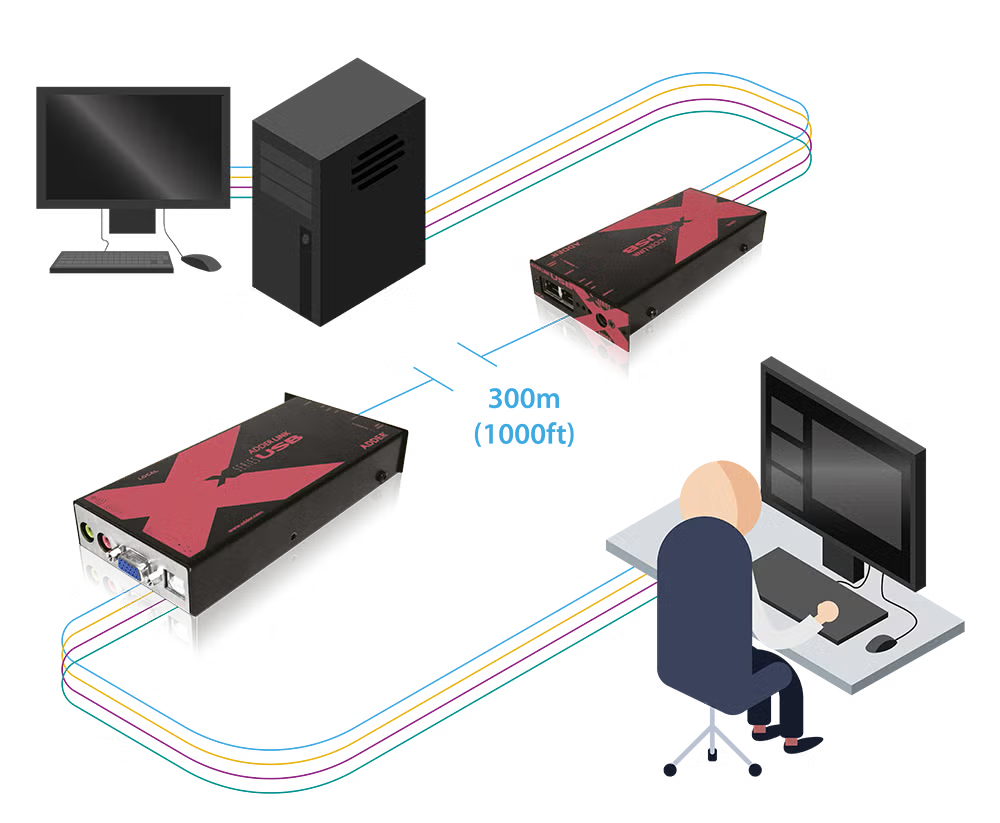

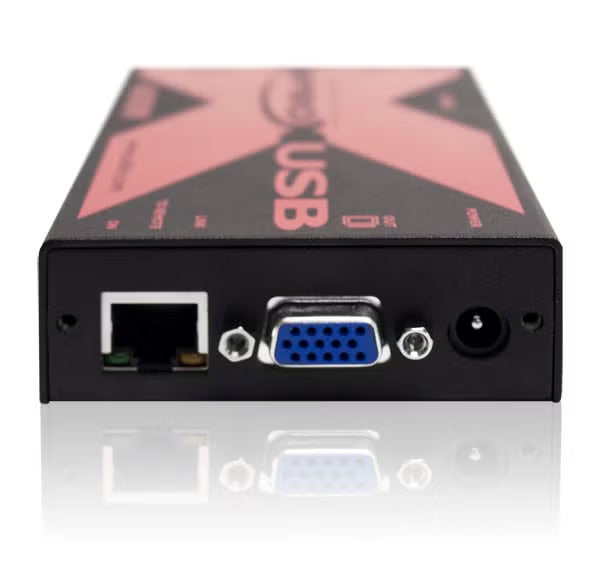

The Adder X-USBPRO-US is an AdderLink X-USB PRO transmitter and receiver pair that extends VGA video, stereo audio and transparent USB 2.0 up to 300m/1000ft over a single CATx cable. As a long-range VGA KVM extender, it delivers sharp, bright, high-resolution images at full distance — 1920x1200 is achievable at 300m — making it a dependable choice for relocating computers away from operator positions. With a built-in 4-port USB hub at the receiver, this USB 2.0 KVMA extender over CATx supports a complete remote desktop including isochronous USB devices.

Product Description

The X-USB PRO was designed for industry-leading video clarity, compatibility and rack density. A multi-pole compensation technique tunes the link for cable type and length, with additional color-skew compensation and gain adjustment performed directly from the receiver's keyboard, so installers can dial in crystal-clear images at maximum distance. A variable noise filter overcomes the gain-related noise that appears on runs beyond 200m/650ft, which is how the extender holds 1920x1200 VGA at the full 300m/1000ft.

USB extension is fully transparent: all USB 2.0 compatible accessories, including isochronous devices such as audio and video peripherals, can be extended. The receiver's integrated 4-port USB hub lets a complete desktop — keyboard, mouse, printer, headset — live remotely, while the transmitter is powered from the computer's USB port to reduce external power supplies (an external PSU option exists for hosts with insufficient USB power).

A local feed-through port for video and audio allows a console at the computer end, and a dual-user configuration is supported: with two module sets on one computer, the host's USB subsystem arbitrates so both users can control the machine at the same time. Emulated two-page DDC EDID satisfies high-performance graphics cards that require full EDID data, and audio transmission carries CD-quality stereo to remote speakers. Both transmitter and receiver work standalone, or up to 16 units mount in Adder's 2U chassis for high-density installations. Browse chassis options and cabling in the Adder Technology collection at Creation Networks.

Key Features

• 300m/1000ft Extension — VGA, audio and transparent USB 2.0 travel up to 300m over one CATx cable.
• High-Resolution Video at Distance — 1920x1200 VGA is achievable at the full 300m thanks to a variable noise filter and multi-pole compensation.
• Keyboard-Driven Video Tuning — Cable type, length, color skew and gain adjustments are made from the receiver's keyboard for precise image optimization.
• Transparent USB 2.0 — Extends all USB-compatible accessories, including isochronous devices, with a built-in 4-port hub at the receiver.
• USB-Powered Transmitter — The TX draws power from the host USB port, with an external PSU option available.
• Dual-User Capability — Two module sets let two users control one computer simultaneously, arbitrated by the host USB subsystem.
• Two-Page DDC EDID — Full emulated EDID keeps demanding graphics cards performing optimally.
• Local Feed-Through Console — Video and audio pass-through supports a local console beside the computer.
• High Rack Density — Up to 16 units mount in a 2U chassis, or run units standalone.

Typical Applications

• Broadcast studio facilities extending legacy VGA machines to control desks
• Government space installations separating users from secured computers
• Training room consoles fed from a central equipment room
• House of worship control positions reaching rack-mounted PCs
• Auditorium projection and control booths on long cable runs

Technical Specifications

Specifications are drawn from the manufacturer's published datasheet. Contact Creation Networks for the complete environmental and regulatory data for your compliance documentation.

Frequently Asked Questions

Are both units included?
Yes. The X-USBPRO-US part number is a pair including transmitter and receiver units.

What resolution can I expect at full distance?
Adder specifies VGA resolutions of 1920x1200 as achievable at 300m/1000ft, aided by the variable noise filter on runs beyond 200m.

Will webcams and headsets work over the link?
Yes. The X-USB PRO extends transparent USB 2.0 including isochronous devices, and the receiver's 4-port hub hosts a complete remote desktop.

How is video quality adjusted after installation?
Compensation for cable type and length, color skew and gain are all adjusted from the receiver's keyboard — no separate tools required.

Can two operators share one computer?
Yes. Using two sets of modules, both users can control the computer at the same time, with the host's USB subsystem merging the inputs.

Does the transmitter need mains power?
Normally no — it is powered by the computer's USB port. An external power supply option is available if the USB port cannot supply sufficient power.
