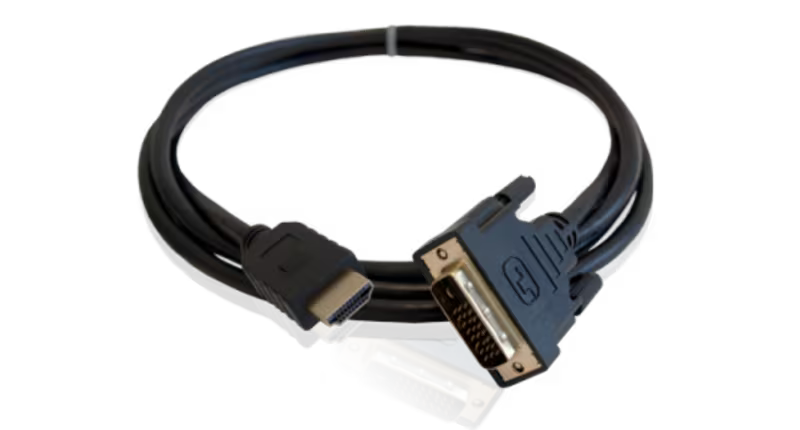

Adder VSCD11 – HDMI to DVI-D Male Cable, 2m

Product Overview

The Adder VSCD11 is a 2m HDMI male to DVI-D male cable that connects HDMI sources to DVI-D displays — or DVI-D sources to HDMI displays — without an active converter. As an HDMI to DVI-D cable for KVM installations, it is HDMI 1.3a compliant and supports video up to the 165MHz clock rate, equivalent to 1920 x 1080 at 60Hz with 24-bit color. This Adder video cable is the practical answer when mixing HDMI and single-link DVI-D equipment in the same signal chain.

Product Description

HDMI and single-link DVI-D share the same TMDS digital video signaling, which is why a passive molded cable like the VSCD11 can bridge the two interfaces with no conversion electronics, no power, and no added latency. Adder builds the VSCD11 as a one-piece molded assembly with one HDMI connector and one DVI-D connector, terminated at the factory for consistent signal integrity across the 2m run.

In day-to-day integration work this cable solves a recurring mismatch: a computer or KVM device with DVI-D output feeding a display fitted only with HDMI, or an HDMI source driving a DVI-D monitor at an operator position. Because it is HDMI 1.3a compliant up to the 165MHz pixel clock, it carries 1920 x 1080 at 60Hz with full 24-bit color — the standard resolution for the DVI-era equipment it is designed to interconnect. Where the connected equipment supports it, the HDMI side carries up to eight channels of audio with 16, 20, or 24-bit samples at rates from 32kHz to 192kHz. Adder lists the cable for use alongside its DVI KVM products, making it a natural stocking item for racks built on Adder extenders and switches. Find matching Adder hardware in the Adder Technology collection at Creation Networks.

Key Features

• Direct HDMI to DVI-D Connection — Passively bridges the two digital video interfaces with no powered converter required.
• HDMI 1.3a Compliant — Supports video up to the 165MHz clock rate for dependable single-link digital transmission.
• 1920 x 1080 at 60Hz, 24-Bit Color — Carries full HD video at the standard refresh rate for operator displays.
• Eight-Channel HDMI Audio Support — Passes 16, 20, or 24-bit audio at sample rates from 32kHz to 192kHz on the HDMI side.
• Molded 2m Assembly — Factory-terminated connectors and a practical length for rack-to-display and desk runs.
• Specified for Adder DVI KVM Products — Listed by Adder for use with its DVI extender and switch range.

Technical Specifications
