Adder VADD-PS2-5M – Multiprotocol PS/2 KVM Tri-Cable, 5m

Product Overview

The Adder VADD-PS2-5M is a 5 metre multiprotocol PS/2 KVM cable that carries VGA video plus PS/2 keyboard and mouse signals in a single combined assembly. This KVM tri-cable connects computers to Adder multi-platform KVM switches and extenders that use a single combined cable port, including the Adder X2 range. For B2B buyers maintaining legacy PS/2 KVM cabling, it is the vendor-correct interconnect that replaces three separate leads with one.

Product Description

Installations built around analog VGA and PS/2 peripherals remain common in industrial, broadcast, and server-room environments, and keeping them serviceable depends on having the correct combined cabling. The VADD-PS2-5M consolidates the video, keyboard, and mouse runs into one tri-cable, so each connected computer requires only a single cable path rather than three loose leads.

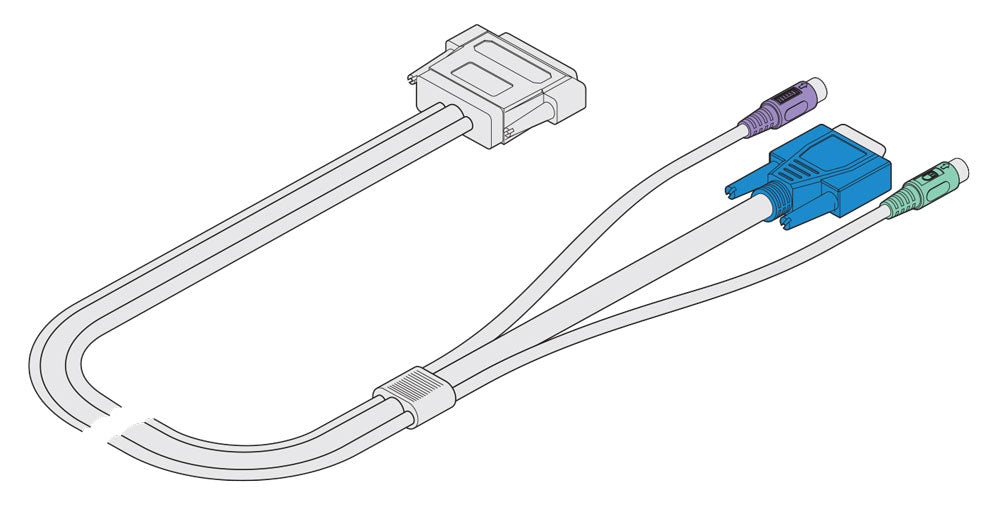

On the computer side, the cable presents an HD15 VGA male connector for video and two 6-pin mini-DIN PS/2 male connectors for keyboard and mouse, with connectors color coded to prevent mis-plugging during installation and service. The 5 metre length suits desks or operator positions that sit away from the switch or extender unit, reaching across racks and under-floor routes without extension couplers. Adder lists this cable for use with its multi-platform KVM switches and extenders, including X2-range KVM extender products, where a single combined cable connection is required per computer. The shorter VADD-PS2-2M covers tight installs; this 5m version is the choice when the run is longer. Find compatible Adder switches, extenders, and spares in the Adder Technology collection.

Key Features

• All-in-One Tri-Cable Design — Combines VGA video with PS/2 keyboard and mouse in one assembly, cutting per-computer cabling from three leads to one.
• 5 Metre Length — Reaches operator positions and rack locations that a 2m lead cannot, without inline couplers or signal-degrading extensions.
• Color-Coded Connectors — Speeds installation and reduces mis-connection of keyboard and mouse plugs during moves, adds, and changes.
• HD15 VGA Male Video Connector — Carries analog VGA video to the switch or extender port.
• Dual 6-Pin Mini-DIN PS/2 Connectors — Connects legacy PS/2 keyboard and mouse signals natively, with no USB conversion hardware needed.
• Adder Multi-Platform Compatibility — Vendor-listed for Adder multi-platform KVM switches and extenders, including the Adder X2 range.
