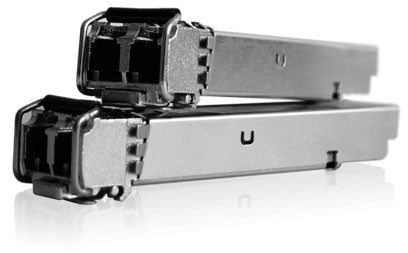

Adder SFP-SM-LC-10G – 10Gbps Single-Mode SFP+ Module, LC

Product Overview

The Adder SFP-SM-LC-10G is a single-mode 10Gbps SFP+ transceiver with LC connectors, used to carry high-bandwidth Adder KVM traffic over single-mode optical fiber. Compliant with IEEE 802.3ae, this 10G single-mode SFP module for KVM extension uses a 1310nm DFB laser to transmit and receive optical data over link lengths up to 10km. It is the fiber option to specify when an Adder KVM-over-IP deployment must span buildings or a campus rather than a single equipment room.

Product Description

High-performance KVM matrix and extension systems increasingly run on 10 gigabit links, and the physical-layer choice determines how far those links can reach. The SFP-SM-LC-10G addresses long-distance requirements: as a single-mode fiber transceiver, it is engineered for a 10km link length, far beyond the reach of copper or multimode optics.

The module's 1310nm DFB laser transmits and receives optical data over standard single-mode optical fiber terminated with duplex LC connectors, the most common interconnect in structured fiber plants. IEEE 802.3ae compliance means the transceiver behaves as a standards-based 10G optical interface within Adder equipment that accepts SFP+ modules. For system designers, that translates into clean separation between computer rooms and operator positions: source machines can sit in a secured, climate-controlled data center while users work kilometers away with no perceptible penalty on the optical link. Typical buyers pair this module with Adder 10G KVM endpoints and network infrastructure; the complete range of compatible Adder hardware and accessories is available in the Adder Technology collection at Creation Networks.

Key Features

• 10Gbps SFP+ Transceiver — Provides a full 10 gigabit optical interface for high-bandwidth Adder KVM links.
• Single-Mode Fiber, 10km Reach — Designed to transmit and receive optical data over single-mode fiber for link lengths up to 10km, supporting inter-building and campus installations.
• 1310nm DFB Laser — Uses a 1310nm distributed feedback laser for stable long-distance optical transmission.
• Duplex LC Connectors — Terminates with LC connectors, matching the prevailing standard in modern structured fiber cabling.
• IEEE 802.3ae Compliant — Conforms to the 10 Gigabit Ethernet standard for predictable, standards-based behavior.
• Genuine Adder Accessory — Specified by Adder for use with its SFP+-equipped KVM products, removing transceiver compatibility guesswork.

Technical Specifications
