Adder PSU-REDPRO2-16-US – 16-Port Redundant Rack Power Distribution Unit

Product Overview

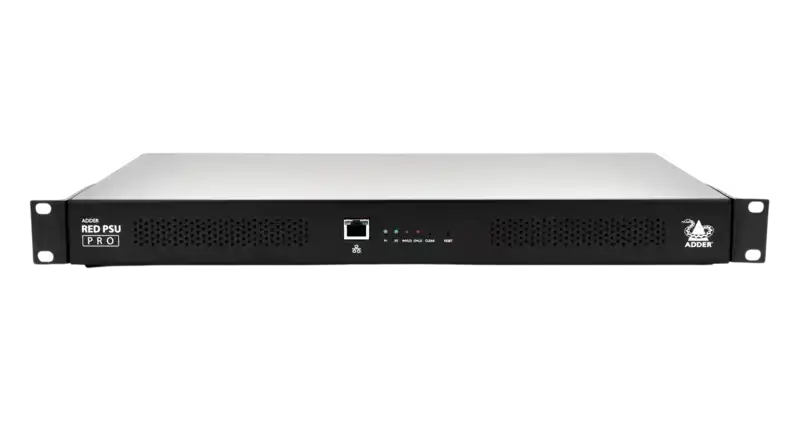

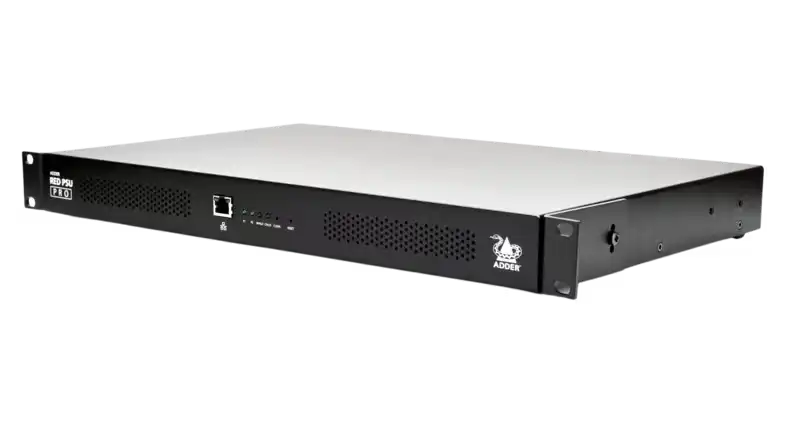

The Adder PSU-REDPRO2-16-US is the ADDER RED-PSU PRO2-16, a 1U 19-inch rack-mountable power distribution unit that delivers sixteen 12 VDC outputs from fully redundant, load-balanced, hot-swappable power modules. Designed as a redundant rack PDU for KVM infrastructure, it consolidates the power supplies of an entire rack of ADDERLink extenders and similar 12 V devices into a single managed chassis with remote control via web interface and REST API. For AV-over-IP and KVM deployments where uptime is non-negotiable, it removes the single points of failure that individual plug-top supplies create.

Product Description

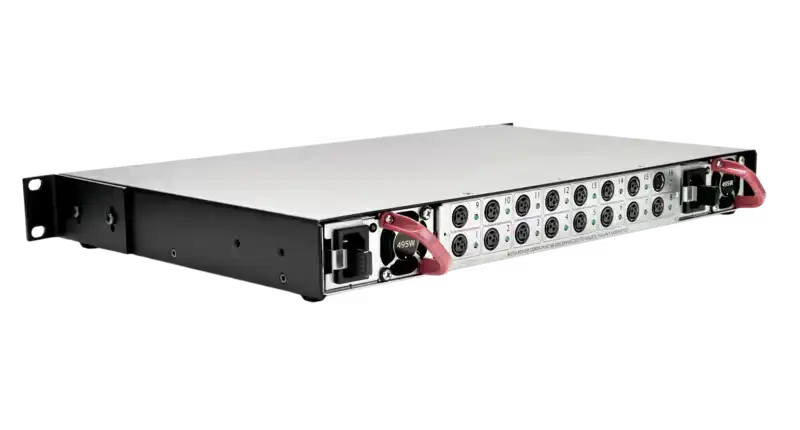

Inside the chassis, two switched-mode 495 W power modules slot into the rear and share the load intelligently on an equal basis. Either module alone can power all 16 ports, and if one ceases operation the full load transfers immediately to the other — a single module is rated at 900,000 hours MTBF, with the complete unit rated at 600,000 hours. Modules are hot-swappable, so a failed supply can be replaced without interrupting connected equipment.

Each of the 16 outputs is a Limited Power Source to IEC 60950-1, capped at 12 V / 2.5 A (30 W), and uses a locking 3-pin DC connector to guard against accidental disconnection in busy racks. At start-up the unit enables outputs in sequence to reduce instantaneous load, and overlapping safety features protect each port against excess demand from any connected device thereafter.

Management is built in. Through the 10/100 Ethernet port, administrators can view temperature, fan speeds, and per-port current measurements, and switch each output individually — useful for remotely power-cycling a hung extender without a site visit. Web access is secured by HTTP digest authentication (RFC 2617), and a REST API enables integration with monitoring and automation platforms. An optional compact converter dongle adapts outputs for Adder's 5 V products, including the ADDERLink INFINITY range, making the RED-PSU PRO2-16 a natural companion to ALIF endpoint racks. Find ALIF endpoints and accessories in the Adder Technology collection at Creation Networks.

Key Features

• 16 Locking 12 VDC Outputs — Each port delivers up to 30 W (12 V / 2.5 A) through a locking connector that prevents accidental disconnection.
• Redundant Hot-Swappable Supplies — Dual 495 W switched-mode modules share the load equally and fail over instantly, replaceable without downtime.
• High Reliability — 900,000 h MTBF per power module and 600,000 h for the unit (Telcordia SR332).
• Per-Port Remote Control — Individually switch outputs via the web interface to remotely power-cycle connected devices.
• Web and REST API Management — Monitor temperature, fan speeds, and per-port current; integrate with automation via REST; secured with HTTP digest authentication.
• Sequenced, Protected Start-Up — Outputs enable in sequence to limit inrush, with overlapping protection against excess demand on every port.
• Dual AC Inputs — 2x IEC 90-264 VAC inputs allow feeds from separate mains circuits; 94% efficiency at 50% load.
• 5 V Device Support — Optional converter dongle powers Adder 5 V products including the ADDERLink INFINITY range.

Typical Applications

• Broadcast studio equipment racks powering banks of KVM extenders
• Government space control room racks requiring redundant, remotely managed DC power
• Commercial meeting space head-end racks consolidating extender power supplies
• Training room and auditorium infrastructure racks supporting ALIF endpoint clusters

Technical Specifications

Frequently Asked Questions

Which devices can it power?
Any device requiring 12 VDC up to 30 W per port with a compatible locking 3-pin connector. An optional converter dongle adapts outputs for Adder 5 V products, including the ADDERLink INFINITY range.

What happens if one power module fails?
The full load transfers immediately to the remaining module, which alone can power all 16 ports. The failed module can then be hot-swapped without disturbing connected equipment.

Can I power-cycle a single device remotely?
Yes. Each of the 16 outputs can be individually switched from the web interface or via the REST API, allowing remote restarts of hung extenders.

How is the management interface secured?
Web access uses HTTP digest authentication (RFC 2617) with username and password.

Can the two AC inlets connect to separate circuits?
Yes. The dual IEC inputs accept feeds from independent mains sources, complementing the redundant module design.

Is there an 8-port version?
Adder offers the RED-PSU PRO2 in 8-port and 16-port configurations. Contact Creation Networks or browse the Adder Technology collection for availability.
