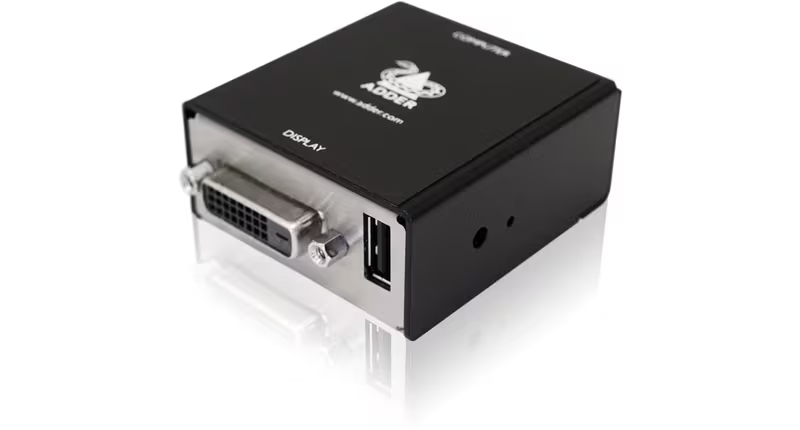

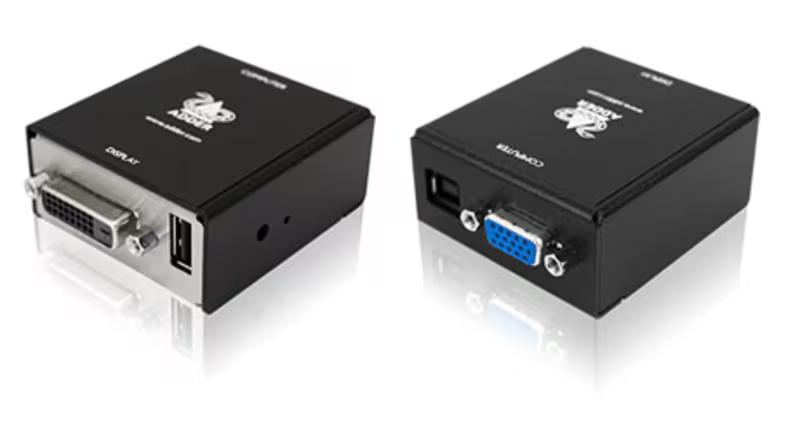

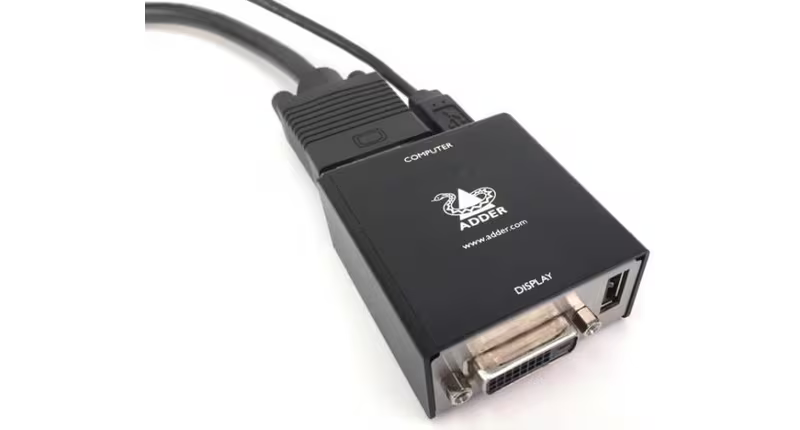

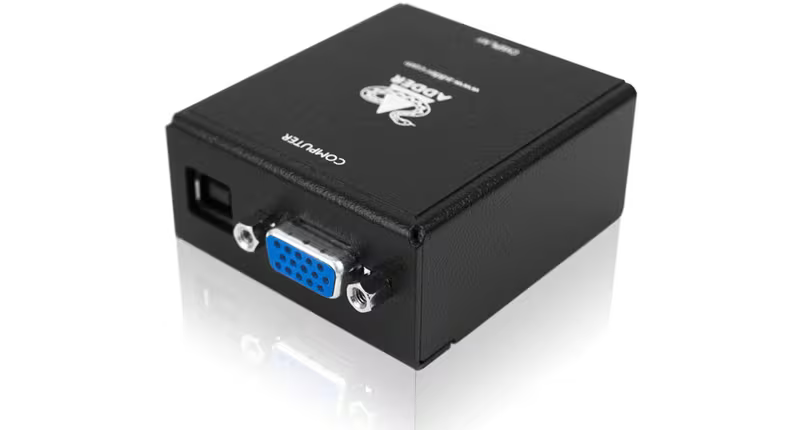

Adder DVA – VGA to DVI-D Converter, USB Powered

Product Overview

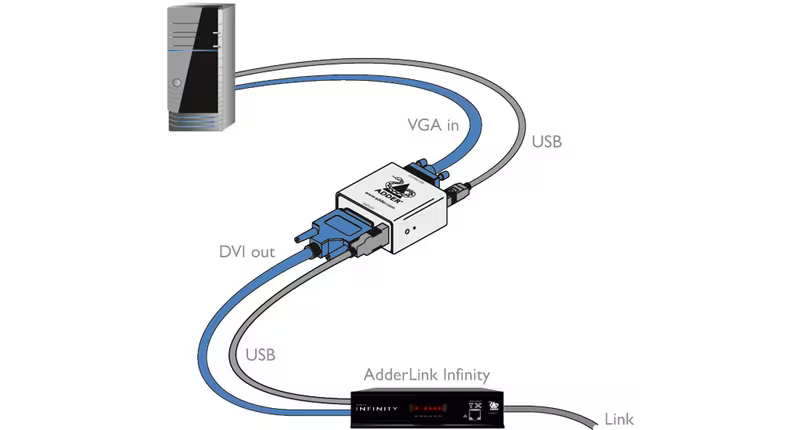

The Adder DVA is a high-performance VGA to DVI-D video converter that transforms analog computer output into a digital signal at resolutions up to 1920x1200 at 60Hz. Placed in-line and powered from a spare USB port, this USB-powered VGA to DVI-D converter is designed to bring legacy analog sources into digital KVM infrastructure, and it fits naturally in front of the ADDERLink INFINITY range. For AV and IT teams connecting older VGA machines to modern KVM-over-IP systems, the DVA is the manufacturer-matched conversion stage.

Product Description

Plenty of industrial controllers, legacy servers, and specialist machines still output only VGA, while modern extension and matrix platforms expect digital video. The Adder DVA closes that gap: it accepts VGA from the computer, converts it to a DVI-D equivalent, and passes it downstream to a display or a digital KVM transmitter.

EDID management is handled in the converter, ensuring the correct display settings are presented to the computer's graphics card — a critical detail in VGA-to-digital conversion that generic adapters often get wrong. The unit auto-calibrates horizontal and vertical position, and a supplied Virtual Control Panel (VCP) app allows manual adjustment of brightness, tone, sharpness, and video alignment, complete with a built-in test pattern. Power comes from a spare USB port on the computer, drawing under 300mA in operation, and a USB passthrough port remains available for a low-powered peripheral so no port is lost.

The compact metal case measures just 55 x 25 x 70mm, the unit is flash upgradeable over USB for custom EDID adjustments, and a calculated MTBF of 5,500,000 hours (Telcordia SR332) speaks to its suitability for continuous-duty installations. VGA and USB cables are included in the box. As a VGA converter for AdderLink INFINITY KVM systems, it lets organizations keep proven legacy machines in service while standardizing on digital extension — browse companion hardware in our Adder Technology collection.

Key Features

• High-Quality VGA to DVI-D Conversion — Converts analog VGA at most resolutions up to 1920x1200 at 60Hz into a DVI-D standard equivalent.
• EDID Management — Presents correct display settings to the computer's graphics card, a critical element of reliable analog-to-digital conversion.
• Auto Calibration — Automatically aligns horizontal and vertical position, with manual adjustment available through the VCP app.
• USB Powered with Passthrough — Draws under 300mA from a spare USB port and provides a passthrough port for a low-powered USB device.

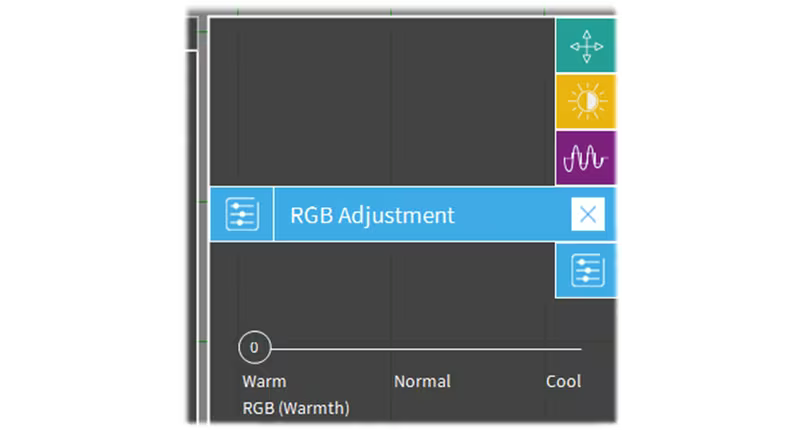

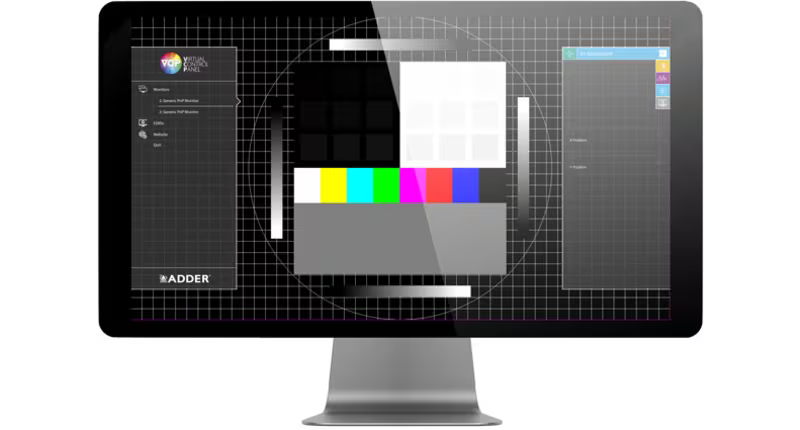

• Virtual Control Panel App — Adjust brightness, tone, sharpness, and alignment against a built-in test pattern from a Windows computer.
• Flash Upgradeable — Firmware and custom EDID adjustments are loaded over the USB port for non-standard applications.
• Compact Metal Construction — Robust 55 x 25 x 70mm case suits in-line placement at the desk or in the rack.
• Proven Reliability — Calculated MTBF of 5,500,000 hours (Telcordia SR332 Issue 4) supports continuous-duty deployment.
