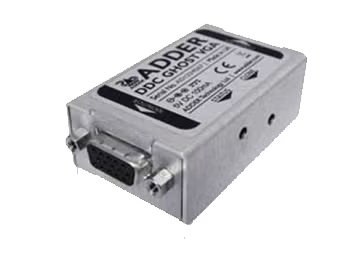

Adder DDC Ghost – VGA EDID Emulator and DDC Cloner

Product Overview

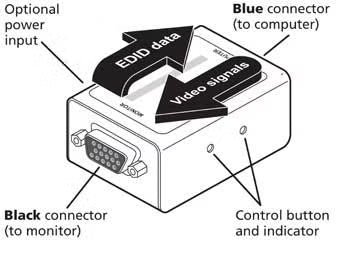

The Adder DDC Ghost is a VGA EDID emulator that adds full EDID data to VGA signals, allowing graphics cards to identify display characteristics correctly even when no DDC path exists between source and screen. Sitting inline on the VGA connection, this DDC emulator clones a complete dual-page EDID from the monitor and presents it directly to the display adapter — solving resolution and compatibility problems in video extension and distribution systems. Adder positions it as a cost-effective way to extend the life of existing VGA infrastructure.

Product Description

EDID is the data that describes a monitor's capabilities — supported resolutions, manufacturer, display size, and more — to the graphics card over the Display Data Channel (DDC). When extenders, splitters, or long cable runs sit between source and display, that channel is often broken, and the graphics card falls back to conservative or incorrect video modes. The DDC Ghost restores order by sitting inline and providing EDID data directly to the graphics card, so the monitor is no longer queried at all.

The device clones a full dual-page EDID — the standard data block plus the extended block — which keeps it compatible with current display devices, and it supports true dual-page DDC emulation so high-performance video cards can run at high resolutions through extenders that lack active DDC support. Where no screen data is available at all, a built-in standard EDID profile covers most display devices, and the installer chooses whether to use the cloned or the standard data set.

Setup is a single-button, push-and-go process guided by the built-in LED indicator, which makes swapping display devices in the field fast and predictable. Power comes inline from VGA pin 9, eliminating an external adapter in most installations; an optional 5V external supply covers sources that do not provide pin 9 power. The all-metal case suits rack and plant environments, and the unit pairs naturally with VGA extension hardware from the Adder Technology collection.

Key Features

• True Dual-Page DDC Emulation — Supports dual-page DDC so high-performance video cards can run compatible high resolutions through non-DDC extenders.
• Full EDID Cloning — Clones both the standard EDID page and the extended data block for compatibility with current display devices.
• Interface Powered via VGA Pin 9 — Draws power directly from the VGA interface, reducing clutter and simplifying installation; optional external 5V supply available.
• Built-In Standard EDID Profile — An extended Adder-authored profile covers most displays where no screen data is otherwise available.
• Push-and-Go Setup — Single-button configuration with LED guidance makes display changes a fast, simple field process.
• All-Metal Enclosure — Compact 68 x 36 x 21mm metal case built for professional installation environments.
