Adder CATX-PS2 – PS/2 and VGA Computer Access Module

Product Overview

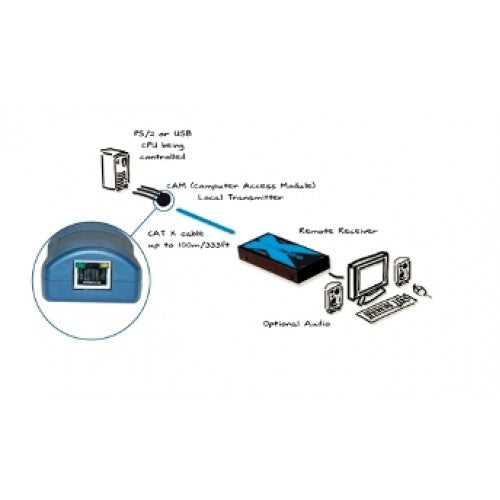

The Adder CATX-PS2 is a computer access module (CAM) that connects machines with VGA and PS/2 ports to Adder CATx KVM switches and extenders over a single CAT5e, CAT6, or CAT7 cable. This PS/2 VGA computer access module sits inline at the target computer, requires no additional power to operate, and presents an RJ45 socket for the CATx run back to the switch or extender. For server rooms still running PS/2-equipped machines, it is the standard interface module for Adder CATx KVM extension and switching.

Product Description

Computer access modules are the connection point between each target machine and an Adder CATx system: a small device that gathers the required output ports of a computer onto one standard CATx cable. The CATX-PS2 variant handles machines with VGA video and PS/2 keyboard/mouse interfaces, which keeps legacy and industrial systems fully manageable from a modern Adder switch or extender.

The main body is constructed from a tough ABS material that houses the RJ45 connector, with connections made from the module into the rear of the target computer or server. Because the unit is self-powered through its connections, there is no power adapter to provision per server — a meaningful simplification in dense racks. Like all Adder CAMs, the CATX-PS2 uses Adder Keep Alive technology to ensure keyboard and mouse inputs to the computer remain active even when that channel is not selected, so there are no connection delays or problems when the port is switched to. Adder associates the CAM range with the ADDERLink X100 and X200 extenders and the ADDERView CATx 1000, CATx 4000, CATxIP 5000, RDX 1000, and RDX 5000IP platforms. Pair the module with switches, extenders, and other CAM variants from the Adder Technology collection at Creation Networks.

Key Features

• PS/2 and VGA Connectivity — Connects machines with VGA video and PS/2 keyboard/mouse ports into an Adder CATx KVM system.
• Single CATx Cable Link — Carries the computer's signals over standard CAT5e, CAT6, or CAT7 cable via the module's RJ45 socket.
• Self-Powered Inline Design — Sits inline at the computer and requires no additional power supply, eliminating per-server adapters.
• Adder Keep Alive Technology — Keeps keyboard and mouse inputs active on unselected channels so port switching is free of delays or reconnection problems.
• Tough ABS Construction — A durable ABS body houses the RJ45 connector for reliable service behind racked equipment.
• Broad Adder CATx Ecosystem Fit — Used with Adder CATx switches and KVM extenders including ADDERLink X100/X200 and ADDERView CATx and RDX platforms.

Technical Specifications
