Adder AVX1008-US – AdderView CATx 1000 8-Port KVMA Switch

Product Overview

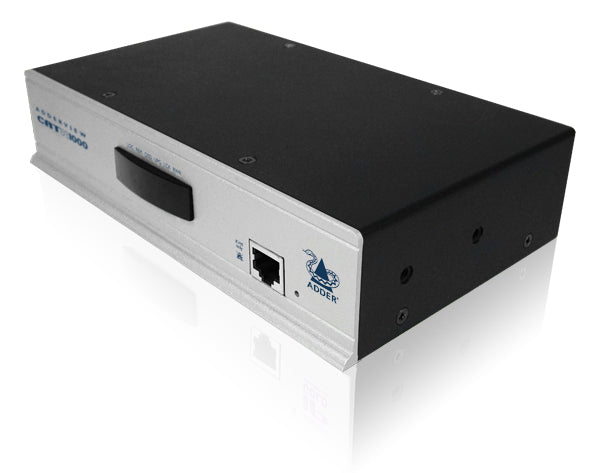

The Adder AVX1008-US is an 8-port AdderView CATx 1000 KVMA switch that gives one local user keyboard, video, mouse and audio control of up to eight multi-platform servers over neat, convenient CATx cabling. Its high-density, small form factor design — two units fit in 1U of rack space — combined with an integrated CATx extender makes it a flexible foundation for server room and desktop control. Teams searching for an 8-port CATx KVM switch, a KVM over CAT5 switch with audio, or a rack KVM switch with remote user extension will find the CATx 1000 a complete, modern solution.

Product Description

Traditional KVM switches tether every server to the switch with bulky three-headed cables. The AVX1008 replaces those with single CATx runs to compact Computer Access Modules (CAMs) at each server, available for USB, PS/2 and Sun keyboard/mouse interfaces with optional audio. The result is cleaner racks, longer reach — and per-port flexibility across mixed platforms.

Video performance is a CATx 1000 hallmark: resolutions up to 1600 x 1200 @ 85Hz are supported with DDC emulation, enhanced by DC balancing to maintain full, true color across the link. With audio-enabled CAM modules, the switch carries CD-quality 44.1kHz digital stereo audio alongside KVM signals. Continuous keyboard and mouse emulation with country-code reporting keeps every connected server behaving as if its console never left.

Growth is simple. The switch automatically detects cascade connections over CATx, scaling to as many as 256 computers, and the integrated CATx extender lets a remote user operate the switch from up to 300m away using an ADDERLink X200 or X100 receiver — vendor-stated reach for the integrated extender path. Up to 16 user profiles with defined access rights provide controlled access, and an options port supports RS232-controlled power switches for hard reboots, flash upgrades, configuration upload/download, and synchronization of multiple CATx 1000 units for multi-video applications.

Need the CAMs, receivers or rack kits to complete the system? Browse the Adder Technology collection at Creation Networks.

Key Features

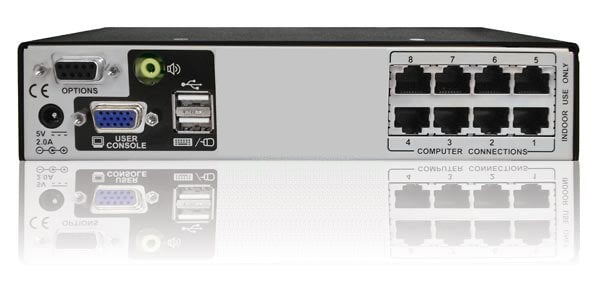

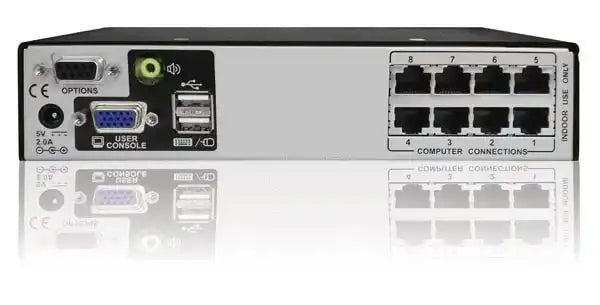

• Eight Servers, One Console — A single local user controls up to 8 multi-platform computers over single CATx runs.
• High Video Performance — Up to 1600 x 1200 @ 85Hz with DDC emulation and DC balancing for full, true color.
• CD-Quality Audio Option — 44.1kHz digital stereo audio supported with audio-enabled CAM modules.
• True Multi-Platform Support — CAMs for USB, PS/2 and Sun interfaces with continuous keyboard/mouse emulation and country-code reporting.

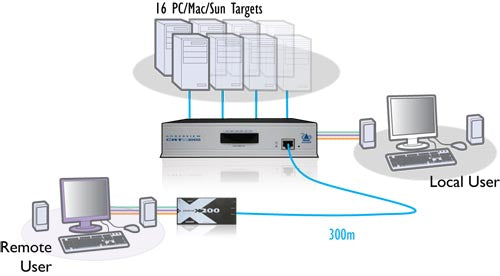

• Integrated CATx Extender — A remote user can control the switch from up to 300m away via an ADDERLink X200 or X100 receiver.
• Easy Cascade to 256 Computers — Cascade connections over CATx cable are detected automatically for simple expansion.
• User Access Control — Up to 16 user profiles with individually defined access rights.

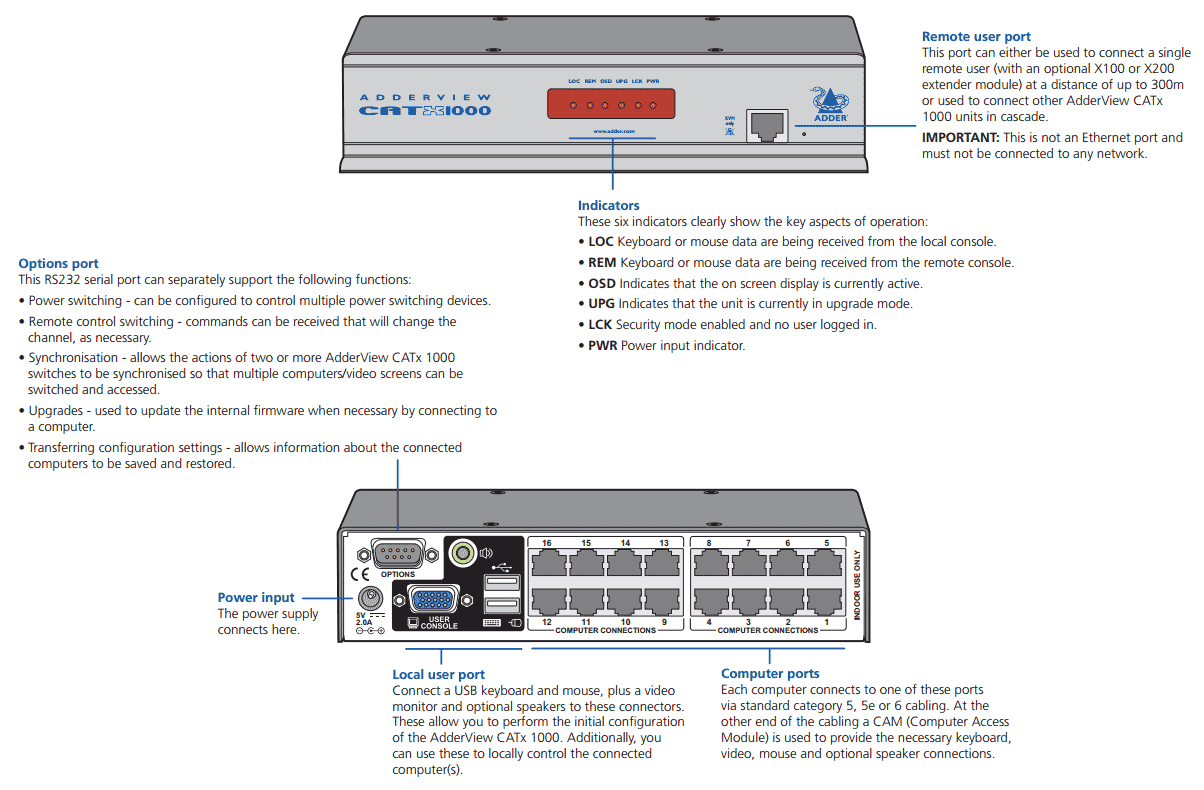

• Options Port — DB9 port supports RS232 power-switch integration for hard reboot, flash upgrades, config upload/download and multi-unit sync.
• High Rack Density — Two switches mount side by side in 1U, yielding up to 32 ports per rack unit.

Typical Applications

• Broadcast studio — engineering control of playout, automation and ingest servers from one console.
• Government space — consolidated administration of multiple servers from a single managed position.
• Training room — instructor access to a bank of lab machines over structured cabling.
• Commercial meeting space — centralized management of room PCs and media servers from the AV rack.

Technical Specifications

Frequently Asked Questions

What do I need at each server?
One Computer Access Module (CAM) per machine — available in USB, PS/2 or Sun variants, with or without audio — connected back to the switch with a single CATx cable.

Can a user operate the switch from another room?
Yes. The integrated CATx extender supports a remote user at up to 300m using an ADDERLink X200 or X100 receiver, per Adder's specification.

How far can the servers be from the switch?
Servers connect via their CAMs over CATx; consult the CATx 1000 manual for supported switch-to-CAM distances in your configuration.

Can I expand beyond eight computers?
Yes. Cascading over CATx is detected automatically and scales the system to as many as 256 computers; a 16-port model (AVX1016) is also available.

Does it support audio?
Yes — CD-quality 44.1kHz digital stereo audio is carried when audio-enabled CAM modules are used.

Can it integrate with a control system or power switching?
The DB9 options port integrates with RS232-controlled power switches for hard reboot capability, plus flash upgrades and multi-unit synchronization for multi-video applications.
