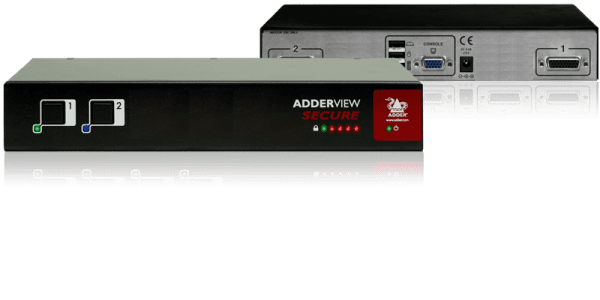

Adder AVSV1002-US – Secure 2-Port VGA KVM Switch, EAL4+

Product Overview

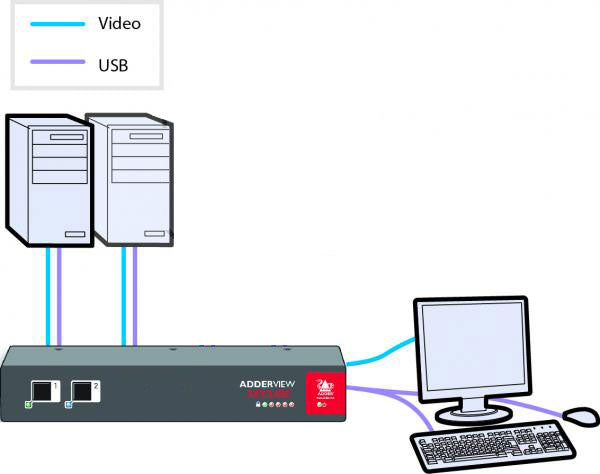

The Adder AVSV1002-US is a secure 2-port VGA KVM switch built for environments where a single keyboard, monitor, and mouse must be shared between high and low security systems — the classic "red and black network" requirement. As an EAL4+ certified secure KVM switch with a TEMPEST qualified design, it is engineered to prevent data leakage between connected computers while giving operators fast, reliable channel switching. For government agencies, defense contractors, and secure facilities sourcing a TEMPEST qualified KVM switch or a 2-port secure VGA KVM for classified networks, the AVSV1002 delivers vendor-certified isolation in a compact desktop form factor.

Product Description

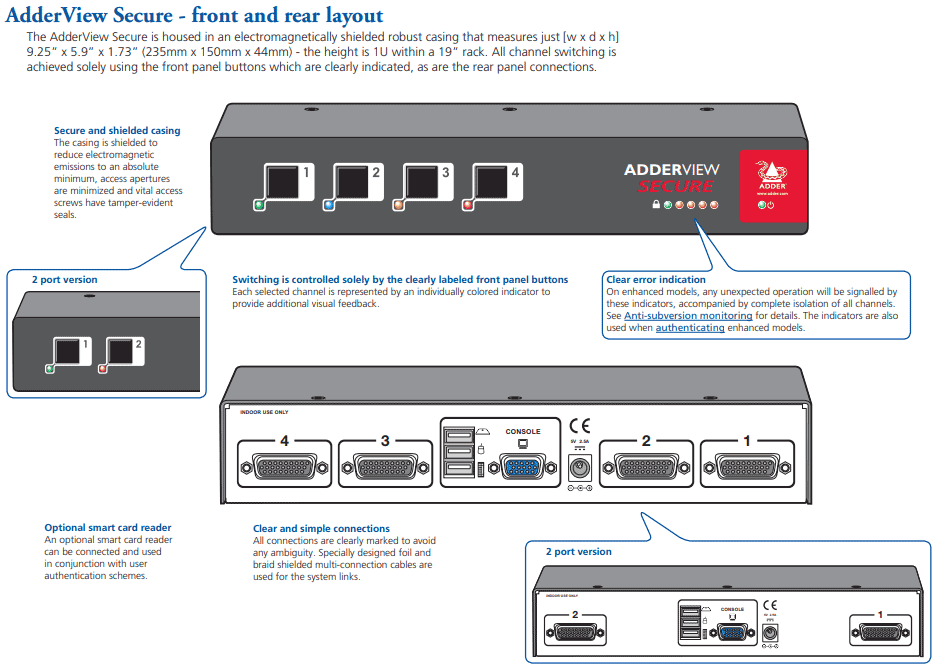

The AVSV1002 belongs to the ADDERView Secure Analogue: Standard family, designed to meet Common Criteria EAL4+ (augmented by ALC_FLR.2 and ATE_DPT.2) with a TEMPEST qualified design meeting USA NSTISSAM Level I and NATO SDIP-27 Level A. Channel switching is controlled exclusively from the front panel buttons — no keyboard or mouse switching commands are permitted — so an operator always has positive physical confirmation of which network is selected.

Internally, hardwired data diodes enforce unidirectional data flow on critical paths, and peripherals are powered down and re-initialized on every channel change to defeat hidden peripheral malware. One-time programmable storage replaces flash memory in all security-critical areas, removing the possibility of subversive reprogramming, while extensive shielding of the casing and internal circuitry minimizes electromagnetic emissions and electrical crosstalk between channels. The tamper-resistant enclosure uses robust metal construction with as few apertures as possible to deter physical intrusion.

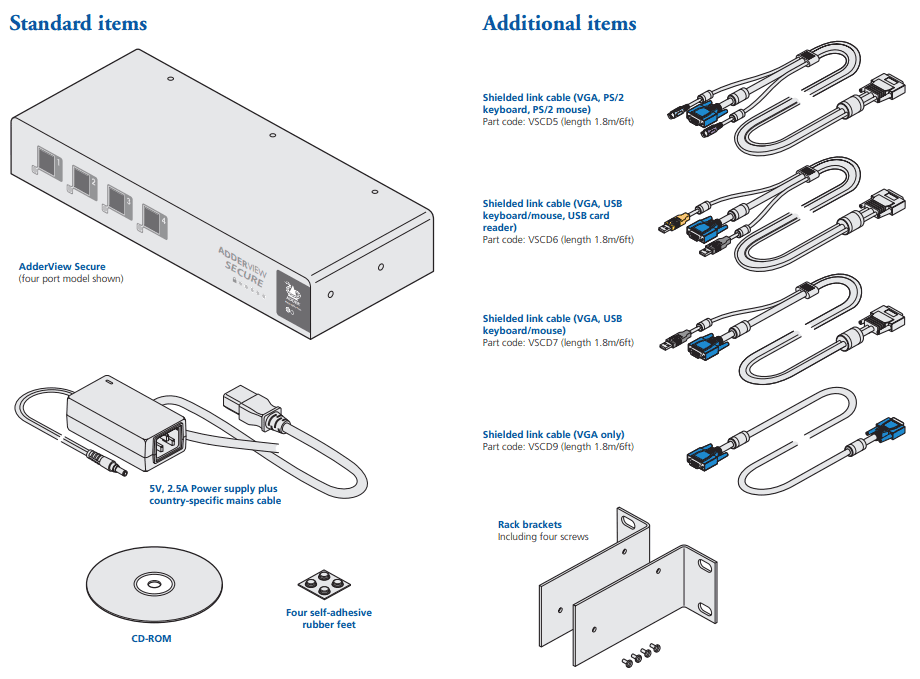

Deployment is straightforward for integrators: the switch is compatible with all known hardware platforms featuring VGA video and USB HID or PS/2 connectivity, and it supports analog video up to 1920 x 1200 @ 60Hz. Adder offers purpose-built shielded link cables (VSCD5/VSCD6/VSCD7/VSCD9) with braid, foil, and ferrite cores to maintain emission suppression end to end. Browse the full Adder Technology collection at Creation Networks for matching secure KVM accessories.

Key Features

• EAL4+ Certified Design — Designed to meet Common Criteria Evaluation Assurance Level 4+ (augmented by ALC_FLR.2 and ATE_DPT.2) for accredited deployment on sensitive networks.
• TEMPEST Qualified — TEMPEST qualified design meeting USA NSTISSAM Level I and NATO SDIP-27 Level A standards for emission security.
• Front-Panel-Only Switching — Channel selection is possible only via physical front panel buttons, eliminating keyboard or mouse command attack vectors.
• Hardwired Port Isolation — Data diodes implemented in hard-wired circuitry enforce unidirectional data flow and prevent one system from reading another's information.
• Peripheral Re-Initialization — Peripherals are powered down and re-initialized at every channel change, protecting against hidden peripheral malware.
• No Critical Software Reliance — One-time programmable storage replaces flash memory in all security-critical areas, preventing subversive reprogramming.
• Shielded, Tamper-Resistant Construction — Extensive shielding of the metal casing and internal circuitry reduces emissions and isolates electrical crosstalk.
• Broad Platform Support — Works with all known operating systems including Windows, Linux, Unix, BSD, Solaris, and Mac OS over VGA with USB HID or PS/2 peripherals.

Typical Applications

• Government space — multi-network operator desks where classified and unclassified systems share one console
• Commercial meeting space — secure facilities requiring isolated network access from a shared workstation
• Broadcast studio — production environments separating on-air and corporate networks at a single position

Technical Specifications

Frequently Asked Questions

Is the AVSV1002 approved for use on classified networks?
The switch is designed to meet Common Criteria EAL4+ and features a TEMPEST qualified design (NSTISSAM Level I / NATO SDIP-27 Level A). Confirm accreditation requirements with your security officer, as each program defines its own approval process.

Does it work with USB keyboards and mice?
Yes. The AVSV1002 is compatible with hardware platforms using USB HID or PS/2 keyboard and mouse connectivity alongside VGA video.

Can the switch be controlled from the keyboard with hotkeys?
No, and that is by design. Channel switching is only possible from the front panel buttons, which eliminates command-based switching as an attack vector.

What cables should I use for installation?
Adder produces purpose-built shielded link cables (VSCD5, VSCD6, VSCD7, VSCD9) with braid, foil, and ferrite cores to preserve emission suppression. These are strongly recommended for secure deployments.

Are there export restrictions on this product?
Yes, export restrictions apply to specific countries for Adder secure switching products. Contact Creation Networks before ordering for international delivery.

Where can I find compatible Adder accessories?
Creation Networks stocks the full Adder Technology lineup, including secure card readers and shielded cabling.
