Adder ALDV100R – AdderLink DV100 HDMI Receiver Unit
Product Overview

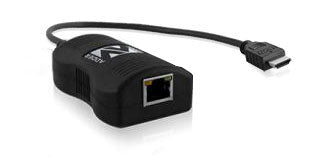

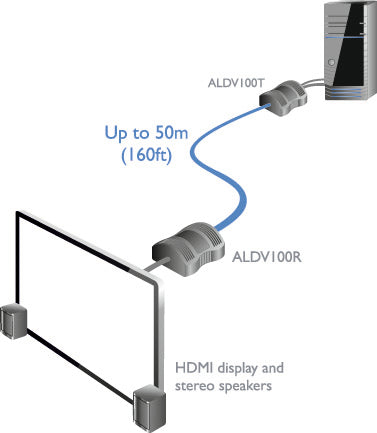

The Adder ALDV100R is the receiver unit of the AdderLink DV100, a highly compact HDMI extender over CATx cable that delivers pixel-perfect digital video with simultaneous audio up to 50m on a single cable. Working with the ALDV100T transmitter, this USB-powered HDMI receiver lets you locate media playback hardware in a secure, temperature-controlled room while the display point shows precisely the same content. It is a clean answer for anyone specifying an HDMI over CATx receiver for signage and AV extension.
Product Description
The DV100 system uses an uncompressed communication scheme with zero loss of data for resolutions up to 1920 x 1200 @ 60Hz (WUXGA) at 24-bit color depth, so the remote display mirrors the source exactly — no compression artifacts, no scaling compromises. HDCP support keeps protected content flowing in line with the HDMI standard.

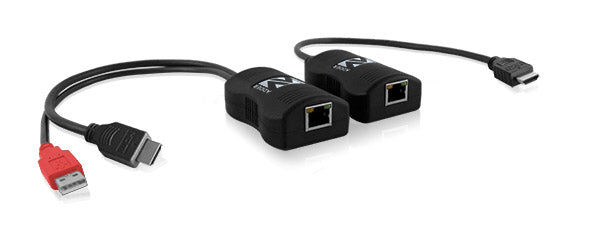

Audio travels on the same link: the system carries 8 channels of HDMI audio with 16, 20, or 24-bit samples at rates from 32kHz up to 192kHz. Power is harvested from a standard USB socket, so no external PSUs clutter the display position — the complete RX and TX pair draws just 2.5W at 5VDC. The small-form-factor dongle housing (45 x 63 x 21mm injection-molded ABS with 30cm pigtails) tucks behind a display or inside millwork.
Deployment is plug and play: units ship in a zero-config state and work as soon as they are connected, with no drivers or software, and compatibility with all known operating systems. EDID management lets the remote system exactly mirror data from the source monitor. Adder recommends CAT7 shielded foiled twisted pair (Daetwyler 7702 patch / 7120 bulk), with 50m achievable over CAT7a or shielded CAT6a on unbroken runs. The DV family is also interchangeable, enabling cross-connection between HDMI transmitters and DVI-D receivers. Find transmitters and cabling in the Adder Technology collection at Creation Networks.
Key Features
- Pixel-Perfect Uncompressed Video — Zero data loss for resolutions up to 1920 x 1200 @ 60Hz with 24-bit color, so remote displays match the source exactly.
- 50m Single-Cable Extension — Video, audio, and power share one CATx cable up to 50m, simplifying pathways and reducing cable cost.
- 8-Channel HDMI Audio — Carries 16/20/24-bit audio at sample rates from 32kHz to 192kHz alongside video.
- HDCP Support — Distributes protected content in line with the High-bandwidth Digital Content Protection standard without interruption.
- USB-Powered Efficiency — Harvests power from a standard USB socket; the RX/TX pair consumes only 2.5W with no external PSUs.
- EDID Management — Enables the remote system to exactly mirror the data coming from the source monitor for correct resolution handling.
- Plug and Play — Ships zero-config and works immediately on connection, with no drivers and compatibility with all known operating systems.
- Compact, Durable Housing — Tough, lightweight ABS enclosure measuring 45 x 63 x 21mm fits discreetly behind displays.
Typical Applications
- Commercial meeting spaces extending HDMI sources to wall displays
- Houses of worship feeding overflow and lobby screens
- Broadcast studios relocating playback hardware away from set
- Multi-purpose rooms with equipment racked in adjacent closets
- Training rooms distributing an instructor source to room displays
Technical Specifications
| SKU | ALDV100R (DV100 receiver; pair: ALDV100P, transmitter: ALDV100T) |
|---|---|
| Max Resolution | 1920 x 1200 @ 60Hz (WUXGA, reduced blanking), 24-bit color; supports 480p/720p/1080p |
| Extension Distance | Up to 50m over a single CATx cable (CAT7a or shielded CAT6a, unbroken run; 40m with 2 patch connections) |
| Audio | 8 channels of HDMI audio; 16/20/24-bit at 32kHz–192kHz |
| Content Protection | HDCP supported |
| Receiver Connectors | HDMI Type A male (display); RJ45 link |
| Power | USB powered, 5VDC; 2.5W for RX and TX units combined |
| Recommended Cable | CAT7 shielded foiled twisted pair (Daetwyler 7702 flexible patch / 7120 bulk); CAT6 shielded or better required |
| Enclosure | Injection-molded ABS; 45mm (W) x 63mm (D) x 21mm (H) with 30cm pigtails; 250g per pair |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| OS Compatibility | All known operating systems; hardware with HDMI connections |
| Approvals | CE, FCC |
Frequently Asked Questions
Does the ALDV100R need a power supply?
No external PSU is required. Power is harvested from a standard USB socket, and the complete RX/TX system draws only 2.5W at 5VDC.
What transmitter pairs with this receiver?
The ALDV100T transmitter (or the ALDV100P pair). The DV family also allows cross-connection between HDMI transmitters and DVI-D receivers.
What cable should I run to achieve 50m?
Adder recommends CAT7 shielded foiled twisted pair; 50m is specified over CAT7a or shielded CAT6a on unbroken runs, dropping to 40m with two patch connections.
Does it pass multichannel audio?
Yes. The system delivers 8 channels of HDMI audio with 16, 20, or 24-bit samples at rates from 32kHz to 192kHz.
Will it play HDCP-protected content?
Yes. The DV100 distributes content in line with the HDCP standard of the HDMI specification.
Is any software installation required?
No. Units ship in a zero-config state and work as soon as connected, with compatibility across all known operating systems.
