Adder ALAV200T-US – AV200 VGA RS232 Signage Transmitter

Product Overview

The Adder ALAV200T-US is the transmitter unit of the AdderLink AV200 series, a VGA digital signage extender over CATx that carries high-resolution VGA video, digital stereo audio, and transparent RS232 serial across a single cable to a matching AV200-series receiver. With full RS232 support, video display panels can be controlled and interrogated remotely, making it a purpose-built VGA and RS232 transmitter for narrowcast digital signage. Note that the AV200 series is a legacy Adder product line now listed among Adder's discontinued products, so this unit is primarily sourced to maintain and spare existing installations.

Product Description

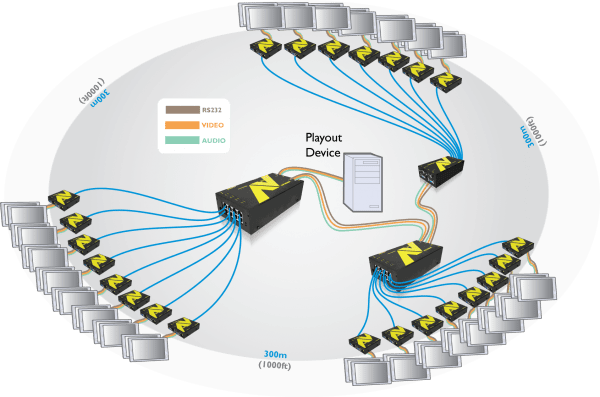

The AV200 series was designed so playback computers could live in a controlled equipment room while displays sit hundreds of feet away. Per Adder's AV200 series documentation, the system supports 1920 x 1080 at distances up to 100 metres (325 feet) and 1280 x 1024 at distances up to 300 metres (1000 feet) over CATx cable.

Audio is transmitted as digital signals for high fidelity and low noise, with phase-locked sampling clocks ensuring there are no unwanted clicks when no sound is playing. The transparent RS232 channel is the operational differentiator: display power, video, and audio can be controlled, and panel status interrogated, from the transmitter end. The unit ships with Adder DM (Display Manager) software for exactly that purpose. The transmitter pairs with AV200-series receivers such as the ALAV200R or the deskew-equipped ALAV201R (sold separately).

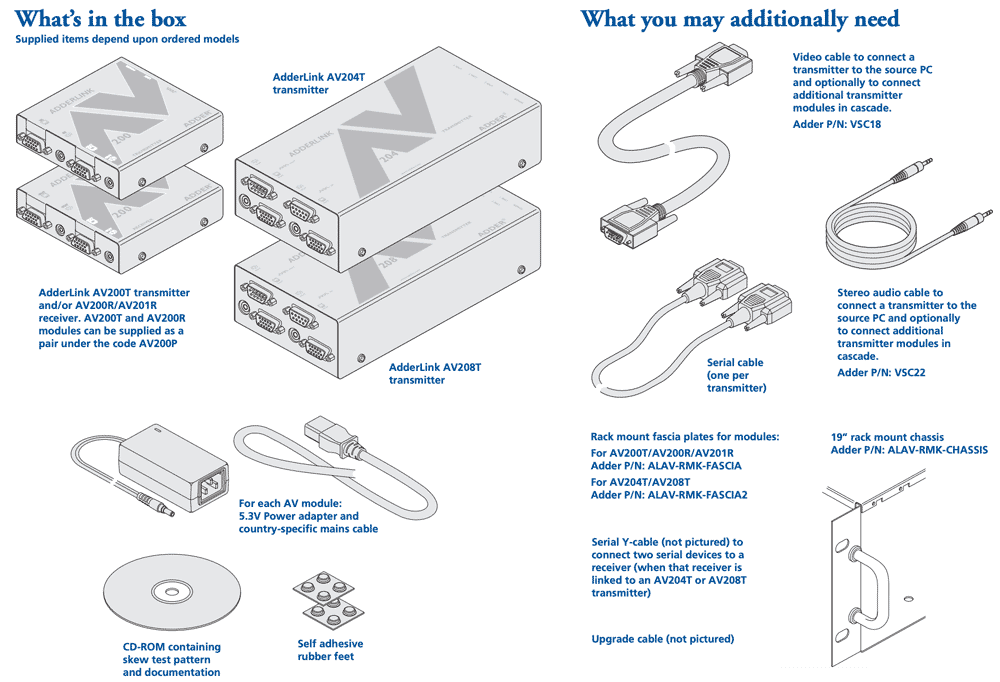

For rack deployments, Adder's AV-series 3U rack mount chassis accommodates 16 units of the ALAV200T/200R/201R size in 19-inch racks. Because the AV200 line appears on Adder's discontinued products list, organizations running existing VGA signage networks typically purchase the ALAV200T-US as a like-for-like replacement or hot spare; new projects should consider current Adder digital extension platforms. Browse current and legacy Adder hardware in the Adder Technology collection at Creation Networks.

Key Features

• Long-Reach VGA Extension — Supports 1920 x 1080 up to 100m (325ft) and 1280 x 1024 up to 300m (1000ft) over CATx cable per Adder's AV200 series documentation.
• Transparent RS232 Channel — Lets video display panels be controlled and interrogated remotely, enabling display power and status management from the head end.
• Digital Stereo Audio — Transmits audio as digital signals with phase-locked sampling clocks for high fidelity and no clicks during silence.
• Adder DM Software Included — Display Manager application controls VDU power, video, and audio and interrogates panel status via the RS232 link.
• Single CATx Cable — Video, audio, and serial travel together on one cable, simplifying long signage runs.
• Rack-Mount Option — AV-series 3U chassis mounts 16 ALAV200T/200R/201R units in 19-inch racks for head-end consolidation.
• Legacy Continuity — Serves as a direct spare for installed AV200 signage networks now that the series is listed among Adder's discontinued products.
